Installing the Gauge
ROV Local-Termination Connection

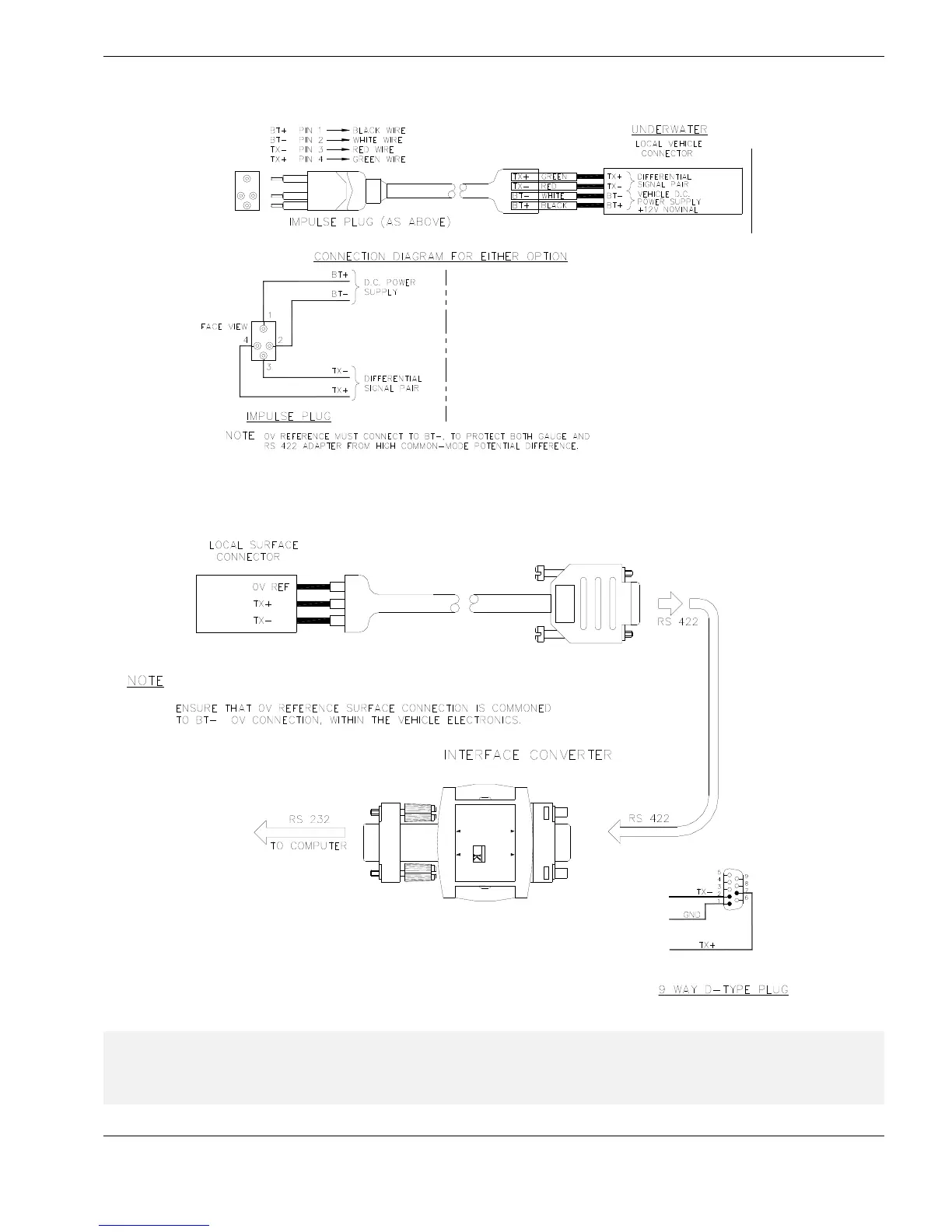

Recommended cable connection from Cygnus 1 ROV Gauge to ROV :
Recommended connection at surface, taken from ROV cabling to PC :
K3
K
SYSTEMS
RS232 ↔ RS422/RS485
WWW.KKSYSTEMS.COM
RS232/RS485
RS232
ISOLATED INTERFACE CONVERTER
L Alternatively - if you intend to convert the serial data sent from the Cygnus 1 ROV
Gauge using your own electronics and/or software : the TX+ / TX- data-pair may be
connected directly to any RS-422 compatible receiving equipment.
