The ACL Profile L3 TCP Port Page contains the following fields:
Field Description
Source Port Mask
Defines the range of source Ports relevant to the ACL rules. (0=ignore, 1=check).
For example, to set 0 – 15, set mask of FFF0.
Destination Port Mask
Defines the range of destination IP addresses, relevant to the ACL rules. (0=ignore,
1=check).
For example, to set 0 – 15, set mask of FFF0.
2. Select Source Port Mask and/or Destination Port Mask. The Mask Generate button is active.
3. Enter a port ID in the box adjacent to the Mask Generate button.
Alternatively, click
.
The Generate Mask by range fields appear.
Enter a port ID range into the Generate Mask by range fields, and click
. The mask is generated.
4. Click
. The ACL profile is added, and the device is updated.
To define L3 TCP Flag ACL Profile:
This option defines whether or not the TCP Flag field is checked for a match.
1. Click the TCP Flag button. The ACL Profile L3 TCP Flag Page updates to show the following:

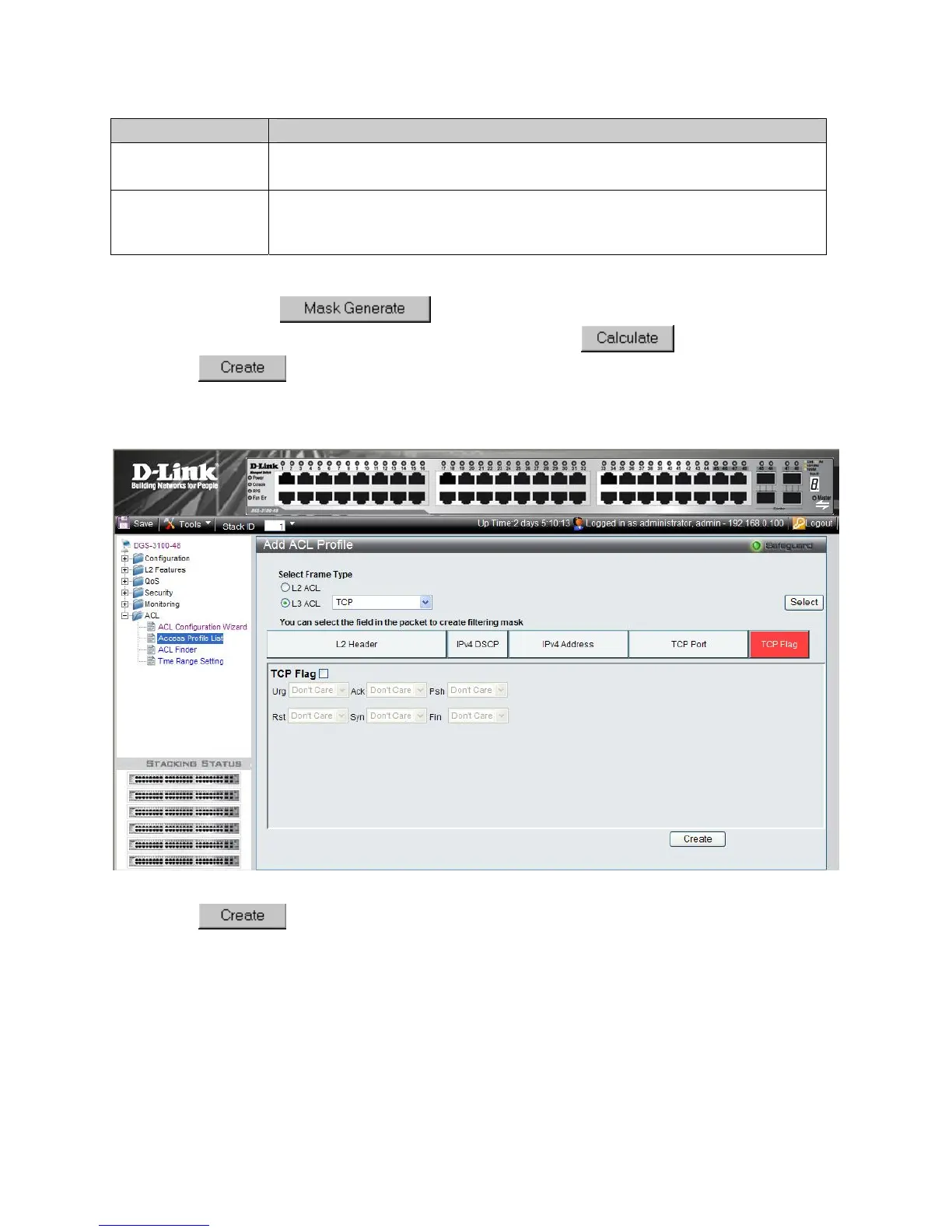

Figure 8-17 ACL Profile L3 TCP Flag Page
2. Click
. The ACL profile is added, and the device is updated.
