D-Link DAP-1665

23D-Link DAP-1665 User Manual
Section 3 - Conguration

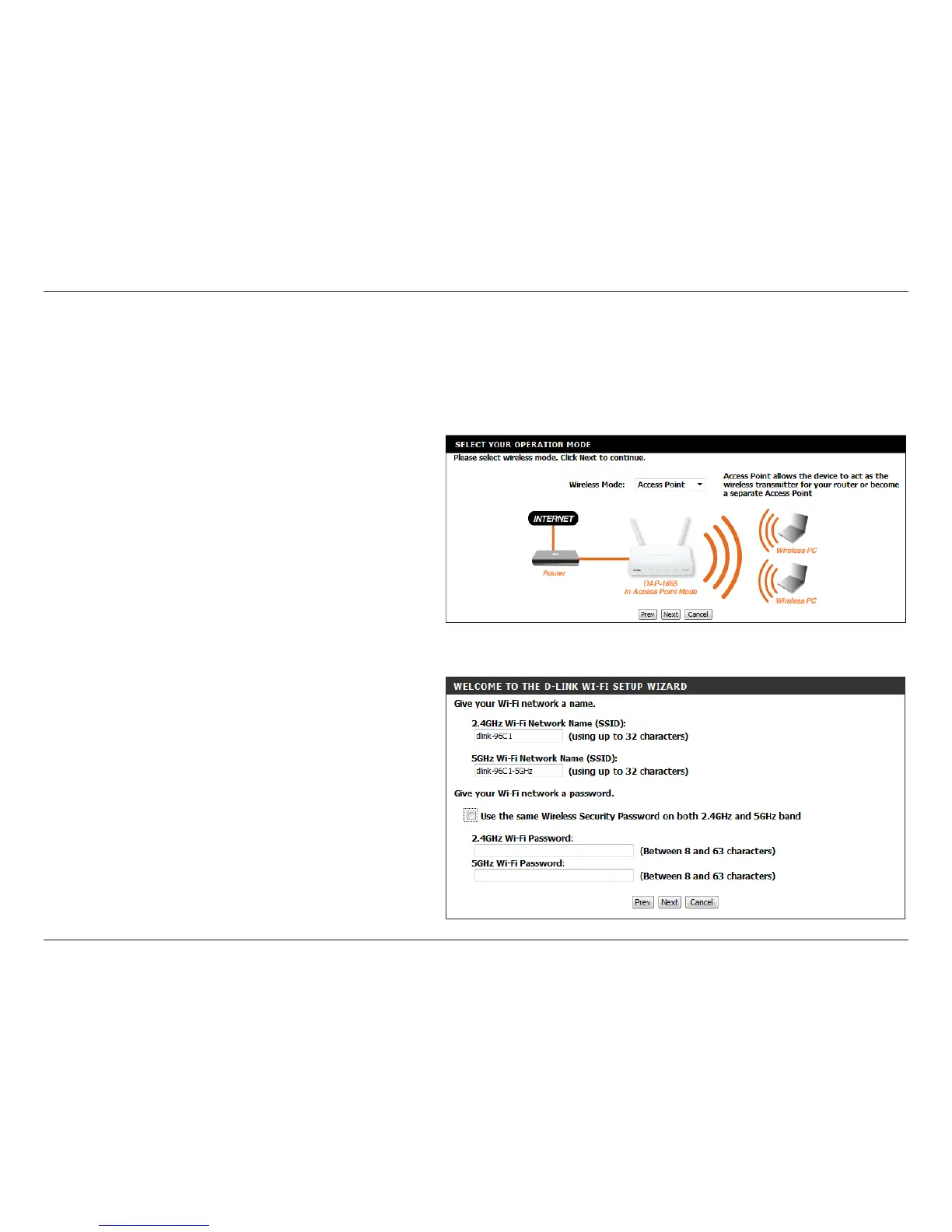

The Wi-Fi Connection Setup Wizard will assist you in conguring your DAP-1665 as an access point, allowing you to connect
wireless clients to your wired network. The DAP-1665 can act as the wireless transmitter for your router or become a separate
access point to expand your network.
Access Point Mode
Select Access Point from the drop-down menu. Click
Next to continue.
This screen will allow you to set a Wi-Fi Network Name
(SSID) and Wi-Fi Password for your wireless network.
Specify an SSID for both the 2.4GHz and 5GHz bands.
If you wish to use the same wireless security password
for both networks, check the box by the words, Use the
same Wireless Security Password on both...and enter
a single password in the eld provided. If you wish to
use a dierent password for each network, leave the box
unchecked and enter passwords in the 2.4GHz Wi-Fi
Password and 5GHz Wi-Fi Password elds.
Click Next to continue.
