18D-Link DAP-1665 User Manual
Section 2 - Installation
Access Point Mode Installation

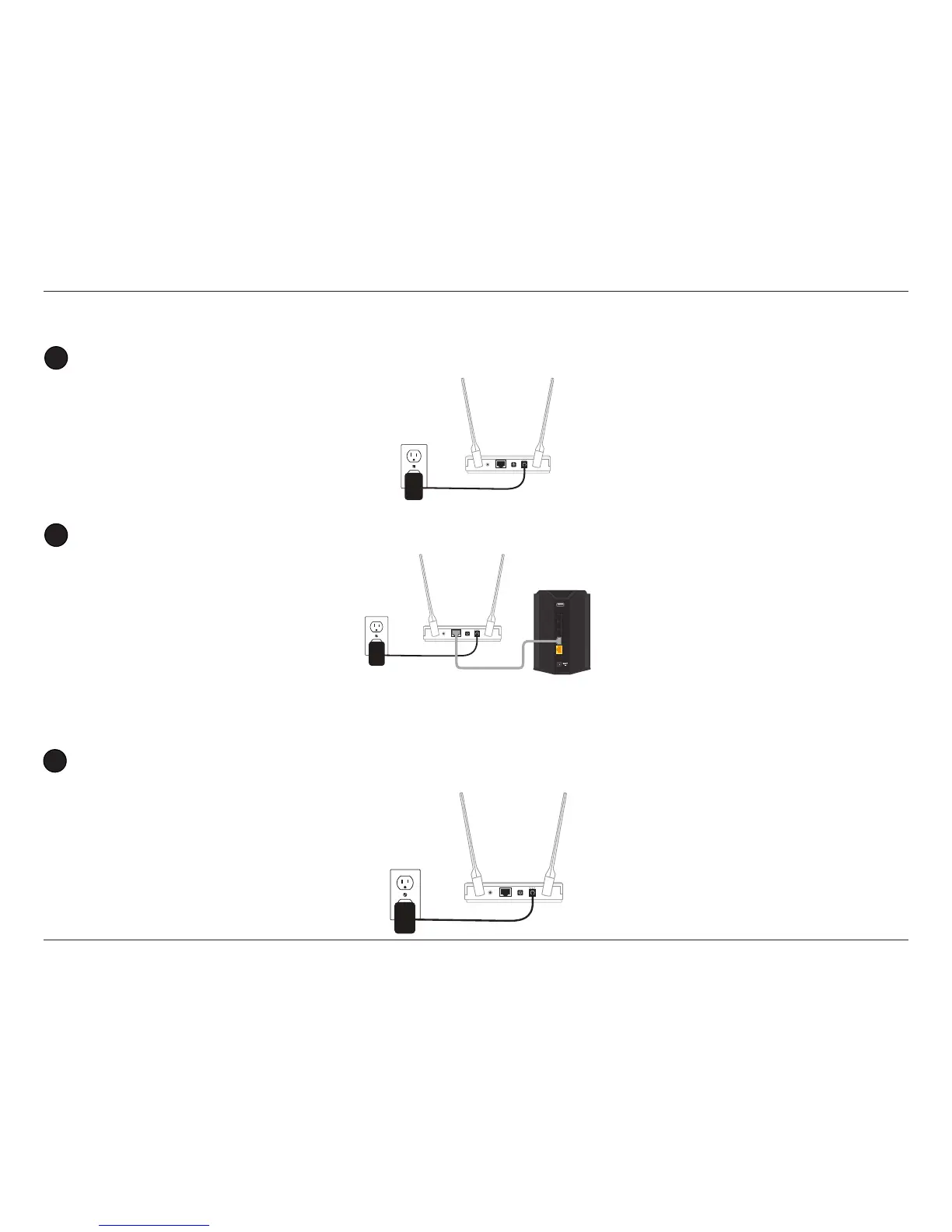

Plug the supplied power adapter into your DAP-1665 and connect it to the outlet or surge protector. Press the Power button on the back of the
device. Verify that the Power LED is lit.
RESET
LAN
5V 1A
1
Attach one end of the included Ethernet cable to the LAN port on the back of the DAP-1665, and the other end into the Ethernet port on your
wireless router.
RESET
LAN
5V
1A
12V
2A
USB
WPS
1
2
3
LAN
4
INTERNET
POWER
LAN
2
Repeater or Wireless Client Mode Installation
1
Find an available power outlet near your wireless router. Plug the supplied power adapter into your DAP-1665 and connect it to the outlet or to a
surge protector. Press the Power button on the back of the device. Verify that the Power LED is lit.
RESET
LAN
5V 1A
