D-Link DAP-1665

43D-Link DAP-1665 User Manual
Section 3 - Conguration
Wireless Mode:
Site Survey:
Repeater Network
Name:
Repeater Network
Band:
Channel Width:
Enable Wireless:
Repeater Network
Name:
Local Wi-Fi
Network Name:
Select Repeater from the drop-down menu.
Click Site Survey to display a list of available wireless networks
in your area. To select a wireless network, click on the radio
button in the far right column, and click Connect at the bottom
of the page to continue. The elds below for the Repeater
Network Name, Repeater Network Band, and Channel Width will
automatically be lled.
If you did not use the Site Survey option described above,
enter the SSID of the access point for which you would like to
repeat the signal .
If you did not use the Site Survey option described above, select
the wireless band of the repeater network.
If you did not use the Site Survey option described above,
select the Channel Width to be used for communication with
the repeater network.
Check the box to enable the 2.4GHz wireless band. If you do
not want to use wireless, uncheck the box to disable all wireless
functions. With wireless enabled, you may set up a specic
schedule. By default, the schedule is set to Always. You can
select a schedule from the drop-down menu, or click Add New
to create a new schedule.
Displays the name of the network to be repeated.
Select a method for naming the DAP-1665’s extended network:
Same as Repeater Name - The extended network will have the
same name (SSID) as the repeater network.
Create a New Wi-Fi Network Name - Enter a new Network
Name (SSID) for the extended network in the eld below.

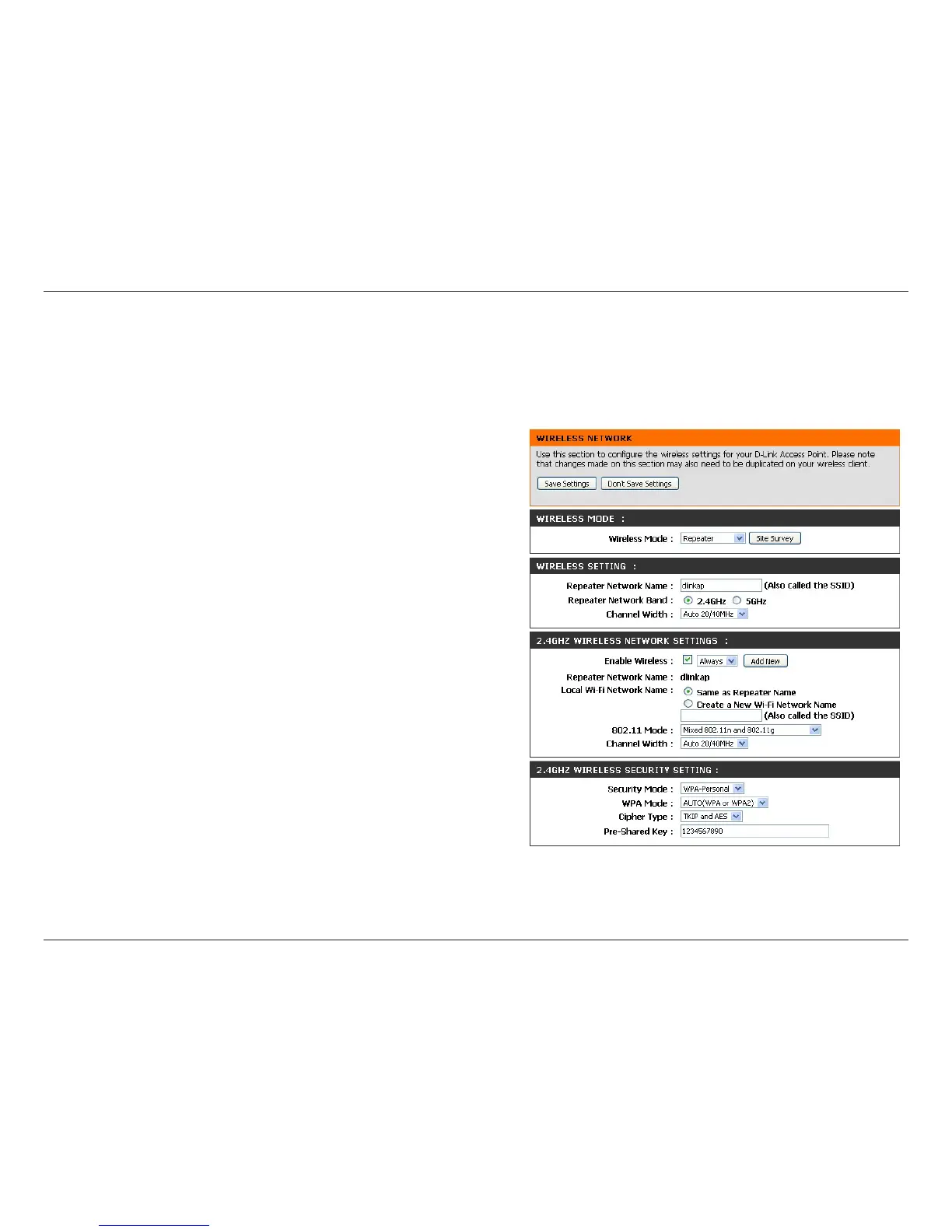

Repeater Mode
Repeater mode re-broadcasts the wireless signal of an existing network to increase coverage. The signal can be repeated using
both the 2.4GHz and 5GHz bands.
2.4GHz Band
