D-Link DAP-2695 User Guide

11D-Link DAP-2695 User Manual
Web User Interface
Web User Interface

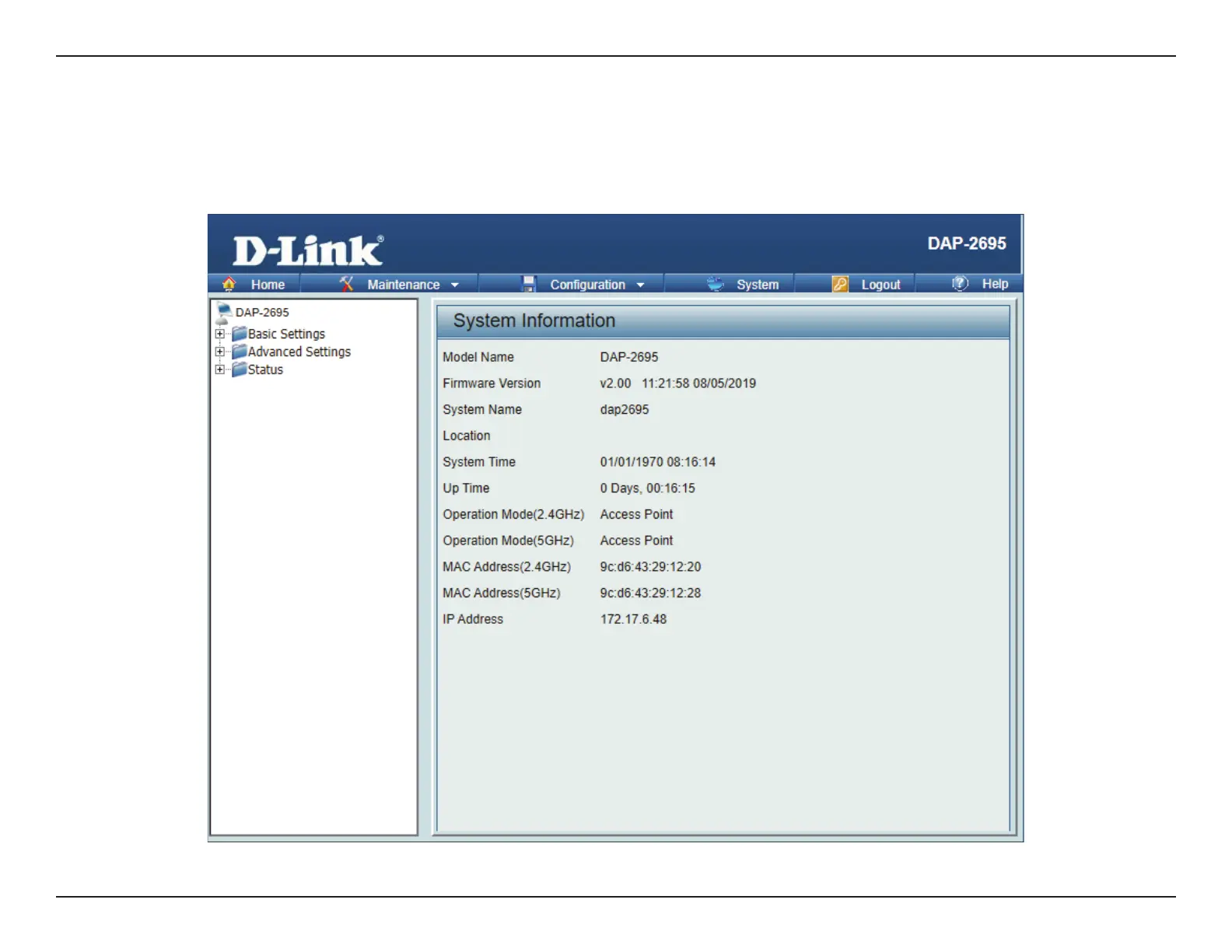

The DAP-2695 supports an elaborate web user interface where the user can congure and monitor the device. Launch a web browser, type
dap2695.local in the address eld and then press Enter to login. Most of the congurable settings are located in the menu of the left side of the
web GUI which contains sections called Basic Settings, Advanced Settings and Status.

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
