24D-Link DAP-2695 User Manual
Web User Interface

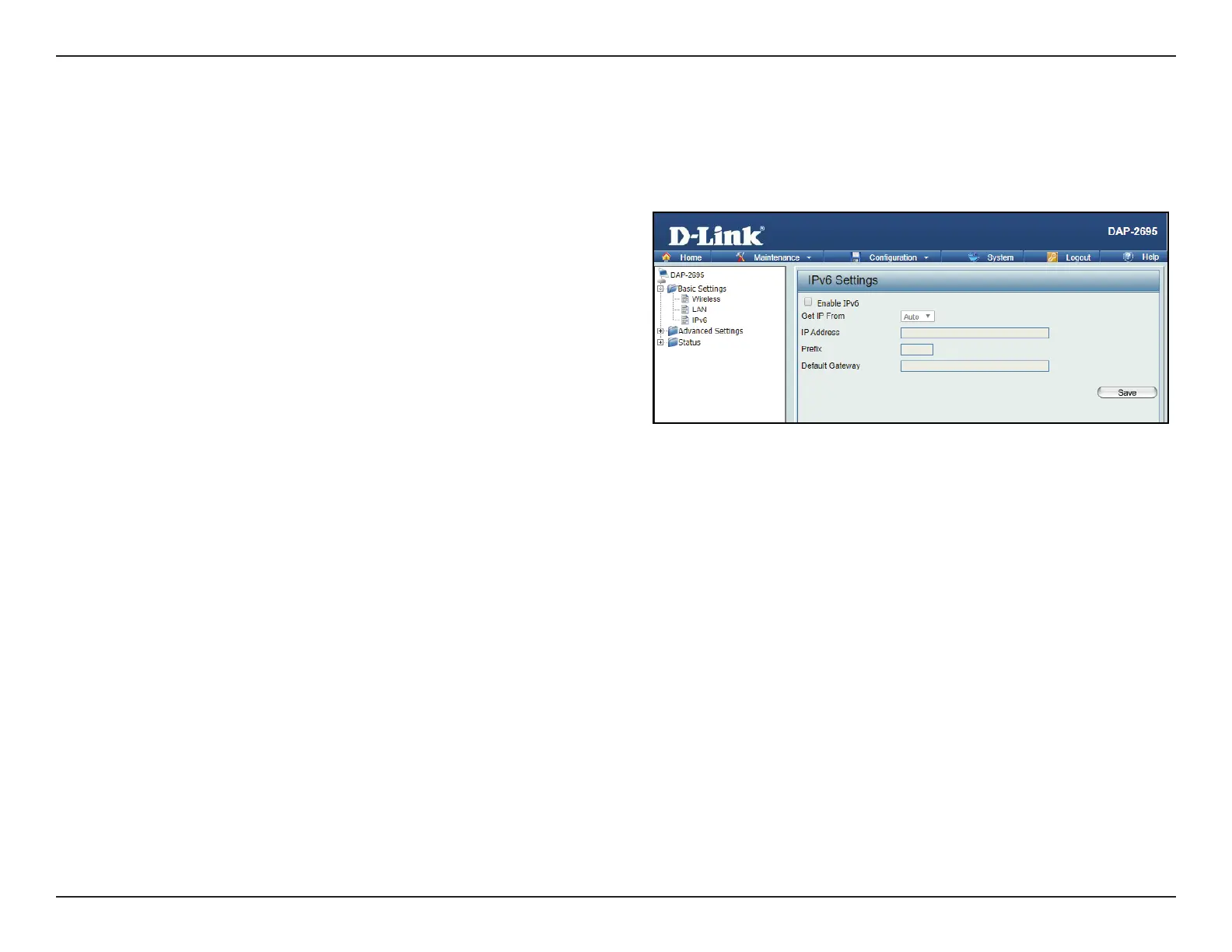

IPv6 Settings
This section allows you to enable the IPv6 conguration of the device.
Enable IPv6: Check to enable the IPv6.
Get IP From: Click the drop-down menu to select IPv6 address
setting mode.
y Auto: Choose this option and the device can get
IPv6 address automatically. The other elds will be
grayed out.
y Static: Choose this option to set IPv6 address
manually.
IP Address: Enter the LAN IPv6 address.
Prex: Enter the LAN subnet prex length value.
Default
Gateway: Enter the LAN default gateway IPv6 address.

Table of Contents

Other manuals for D-Link DAP-2695

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DAP-2695 and is the answer not in the manual?

D-Link DAP-2695 Specifications

Operating Environment IconOperating Environment
operating temperature0˚C to 40˚C
storage temperature-20˚C to 65˚C
operating humidity10%~90% (non-condensing)
storage humidity5%~95% (non-condensing)
Power IconPower
operating voltage48V DC +/- 10% for PoE
voltage and current for PoE48V/0.5A
Wireless Specifications IconWireless Specifications
wireless frequency range2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz3x Detachable 4 dBi Omni antennas
antenna type at 5GHz3x Detachable 6 dBi Omni antennas
Weight and Dimensions IconWeight and Dimensions
length198.8 mm
width190 mm
height36.5 mm
