80D-Link DAP-2695 User Manual
Web User Interface

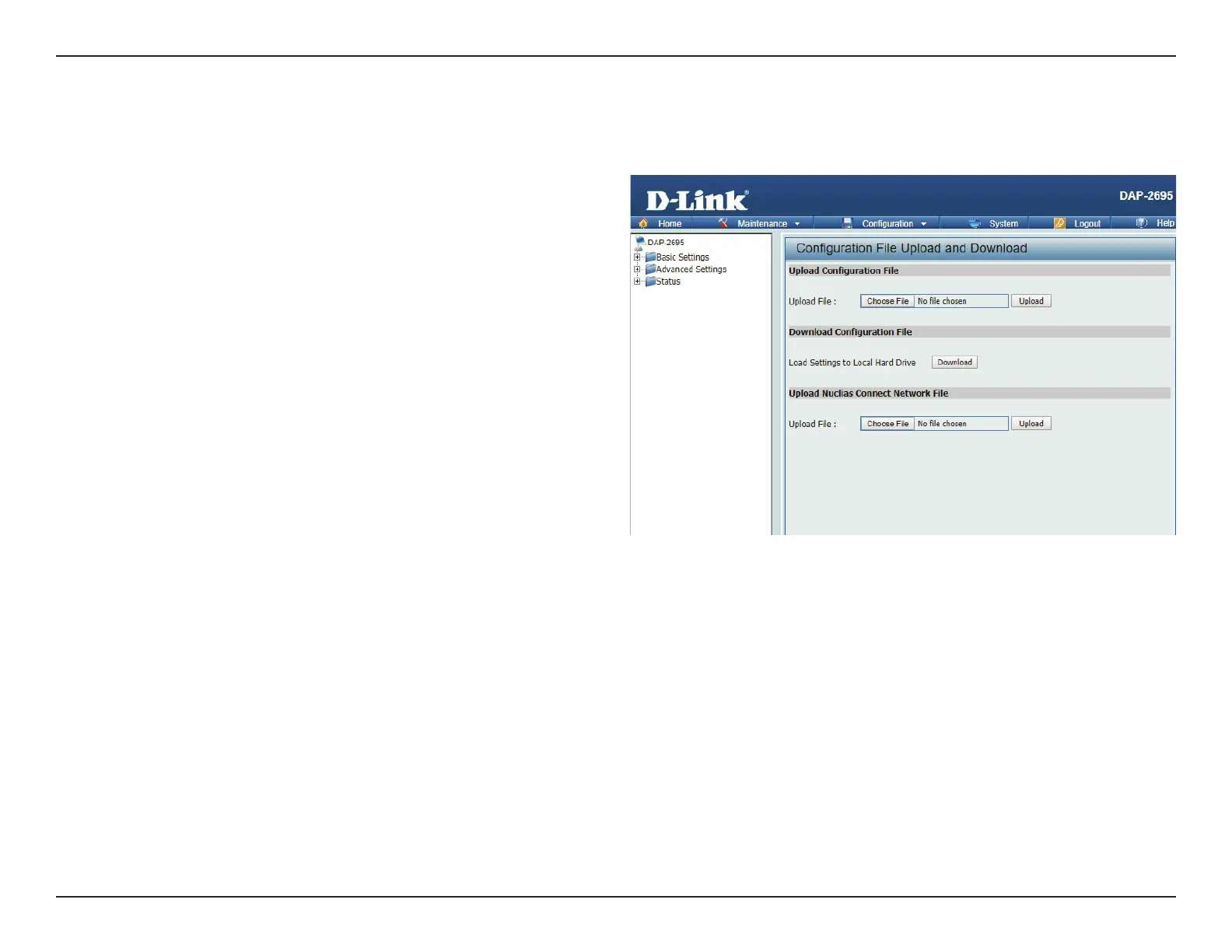

Conguration File Upload
This page allows the user to backup and recover the current conguration of the access point in case of a unit failure.
Upload Conguration
File:
After you have a configuration file, click
Choose File. Select the configuration file
and click Open and Upload to update the
conguration.
Download
Conguration File:
Click Download to save the current
configuration file to your local disk. Note
that if you save one conguration le with the
administrator’s password now, after resetting
your Nuclias C onnect AC1750 Dual Band P oE Access P oint
and then updating to this saved conguration
le, the password will be gone.
Upload Nuclias
Connect Network File:
After you have a saved Nuclias Connect le,
click Choose File. Select the saved Nuclias
Connect le and click Open and Upload to
upload the Nuclias Connect le.

Table of Contents

Other manuals for D-Link DAP-2695

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DAP-2695 and is the answer not in the manual?

D-Link DAP-2695 Specifications

Operating Environment IconOperating Environment
operating temperature0˚C to 40˚C
storage temperature-20˚C to 65˚C
operating humidity10%~90% (non-condensing)
storage humidity5%~95% (non-condensing)
Power IconPower
operating voltage48V DC +/- 10% for PoE
voltage and current for PoE48V/0.5A
Wireless Specifications IconWireless Specifications
wireless frequency range2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz3x Detachable 4 dBi Omni antennas
antenna type at 5GHz3x Detachable 6 dBi Omni antennas
Weight and Dimensions IconWeight and Dimensions
length198.8 mm
width190 mm
height36.5 mm
