D-Link DAP-2695 User Guide

36D-Link DAP-2695 User Manual
Web User Interface

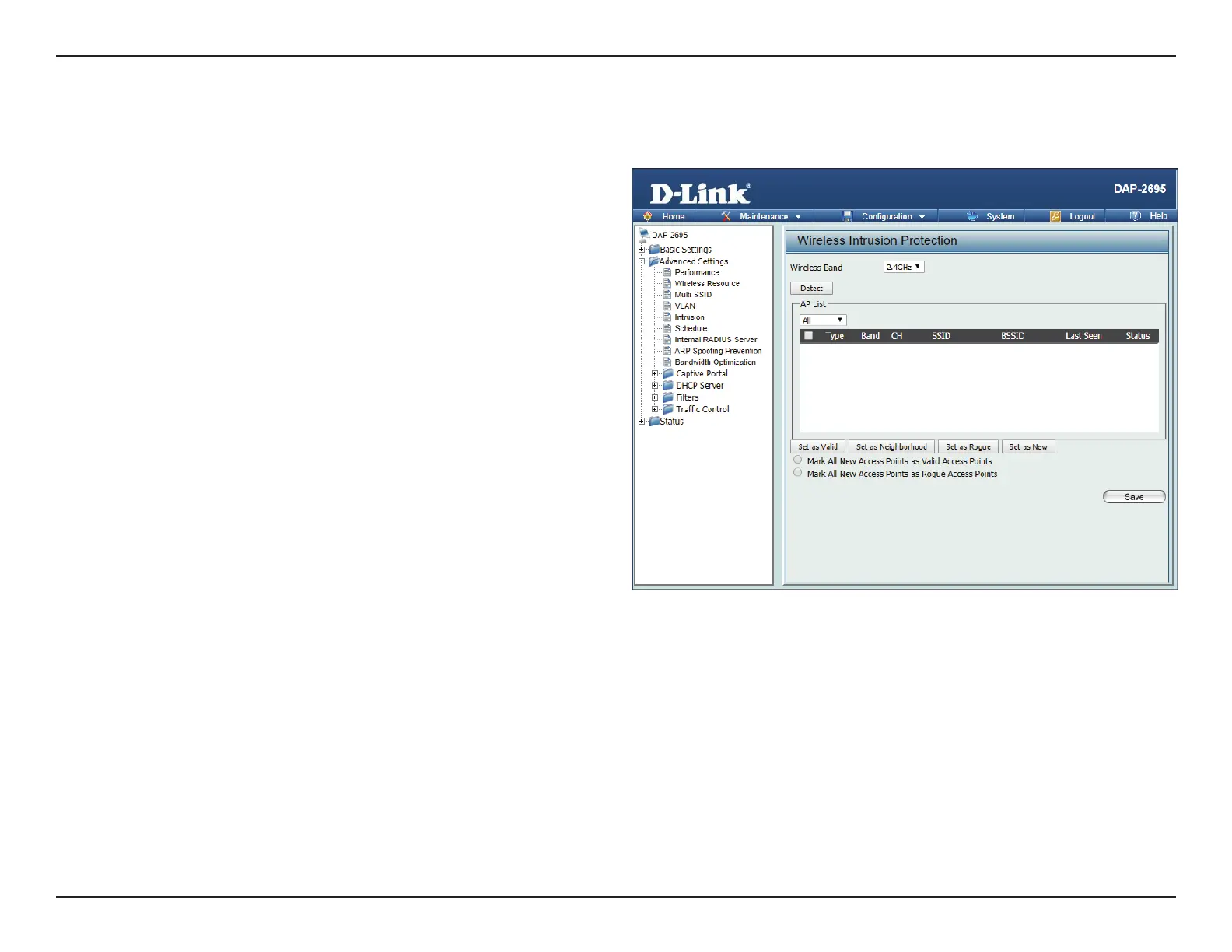

Intrusion
The Wireless Intrusion Protection window is used to set APs as All, Valid, Neighborhood, Rogue, and New. Click the Save button to let your changes
take eect.
Wireless Band Click the drop-down menu to select the
wireless band, 2.4GHz or 5GHz.
Detect Click Detect to initiate a scan of the network.
AP List Click the drop-down menu to select All, Valid,
Neighbor, Rogue, and New.
The following is a denition of the listed AP
categories:
Valid: An AP which is authenticated to the
network with encryption is classied as valid.
Neighbor: A detected AP with a weak signal
strength is classied as a suspect neighbor.
Rogue: An AP that has been installed on the
secure network with out explicit authorization.
New: An alternative category.
From the AP List select a detected AP and
click Set as Valid, Set as Neighborhood, Set
as Rogue, or Set as New to manually dene
the category type for the AP. Alternatively,
click the radio button to mark all new access
points as valid or rogue.

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
