D-Link DAP-2695 User Guide

73D-Link DAP-2695 User Manual
Web User Interface

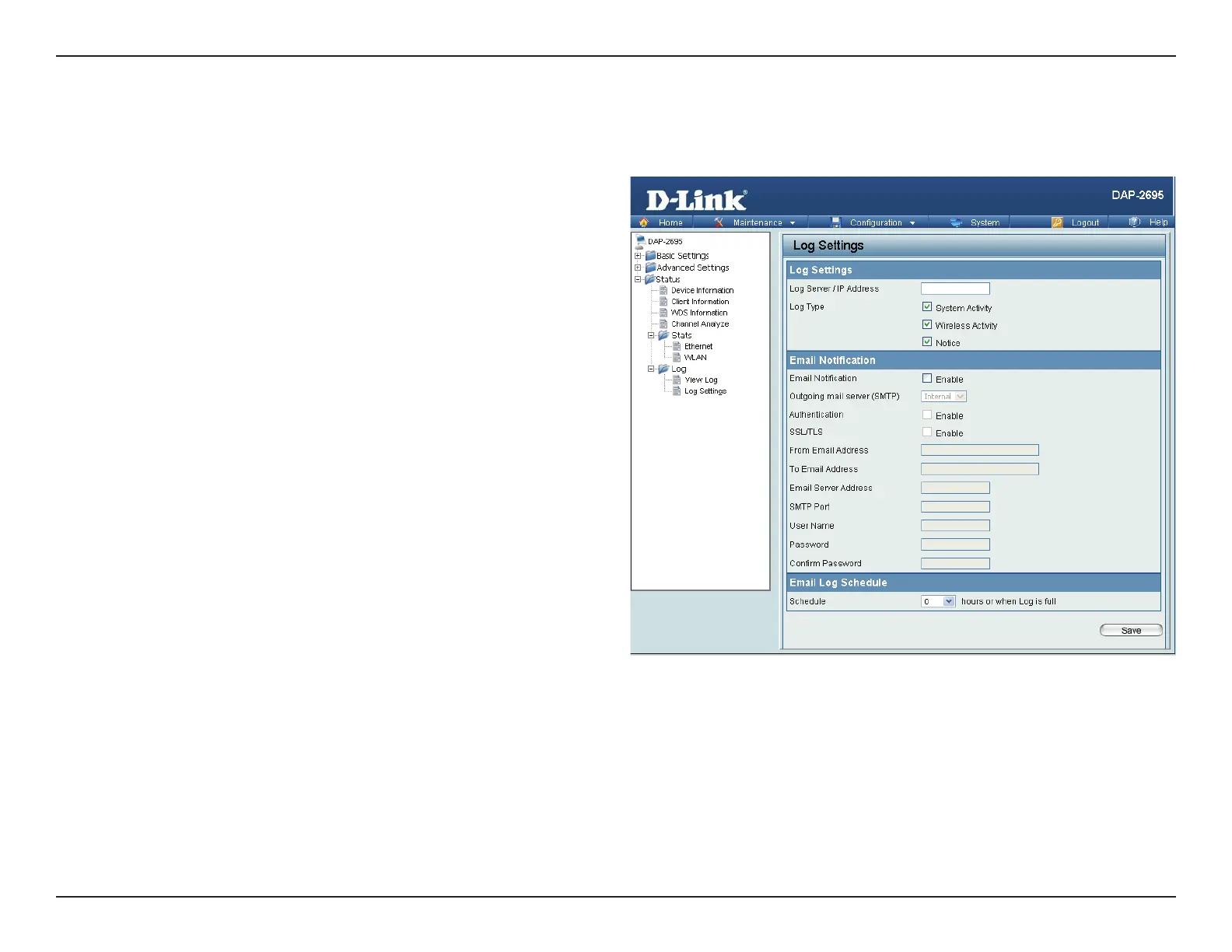

Log Settings
Enter the log server’s IP address to send the log to that server. Check or uncheck System Activity, Wireless Activity, or Notice to specify what kind
of log type you want it to log.
Log Server / IP Address: Enter the IP address of the log server.
Log Type: Check the boxes to select the log type.
Log Server / IP Address: Enter the IP address of the EU directive Syslog
server.
Email Notication: Check the box to enable sending email
notication.
Outgoing mail server
(SMTP):
Click the drop-down menu to select the SMTP
server type, options include: Internal, Gmail,
Hotmail.
Authentication: Check the box to enable the authentication
of the email notication.
SSL/TLS: Check the box to enable the SSL/TLS function.
From Email Address: Enter the email address.
To Email Address: Enter the email address.
Email Server Address: Enter the email server address.
SMTP Port: Enter the SMTP port.
User Name: Enter the name of the new user entry.
Password: Enter the password set for the email
notication.
Conrm Password: Retype the password entry to conrm the
password.
Schedule: Click the drop-down menu to set email log
schedule.

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
