D-Link DAP-2695 User Guide

75D-Link DAP-2695 User Manual
Web User Interface
Administration
Check one or more of the ve main categories to display the various hidden administrator parameters and settings displayed on the next ve pages.
Each of the ve main categories display various hidden administrator parameters and settings. The administrator or users with administration
privilege can access the administration management interface. By the default the admin account is not congured with a password. It is highly
recommended to create a password before conguring the settings.
After any setting modication, the updated conguration must be saved to the device through the Conguration function, otherwise, the settings
will not be saved to the rmware.

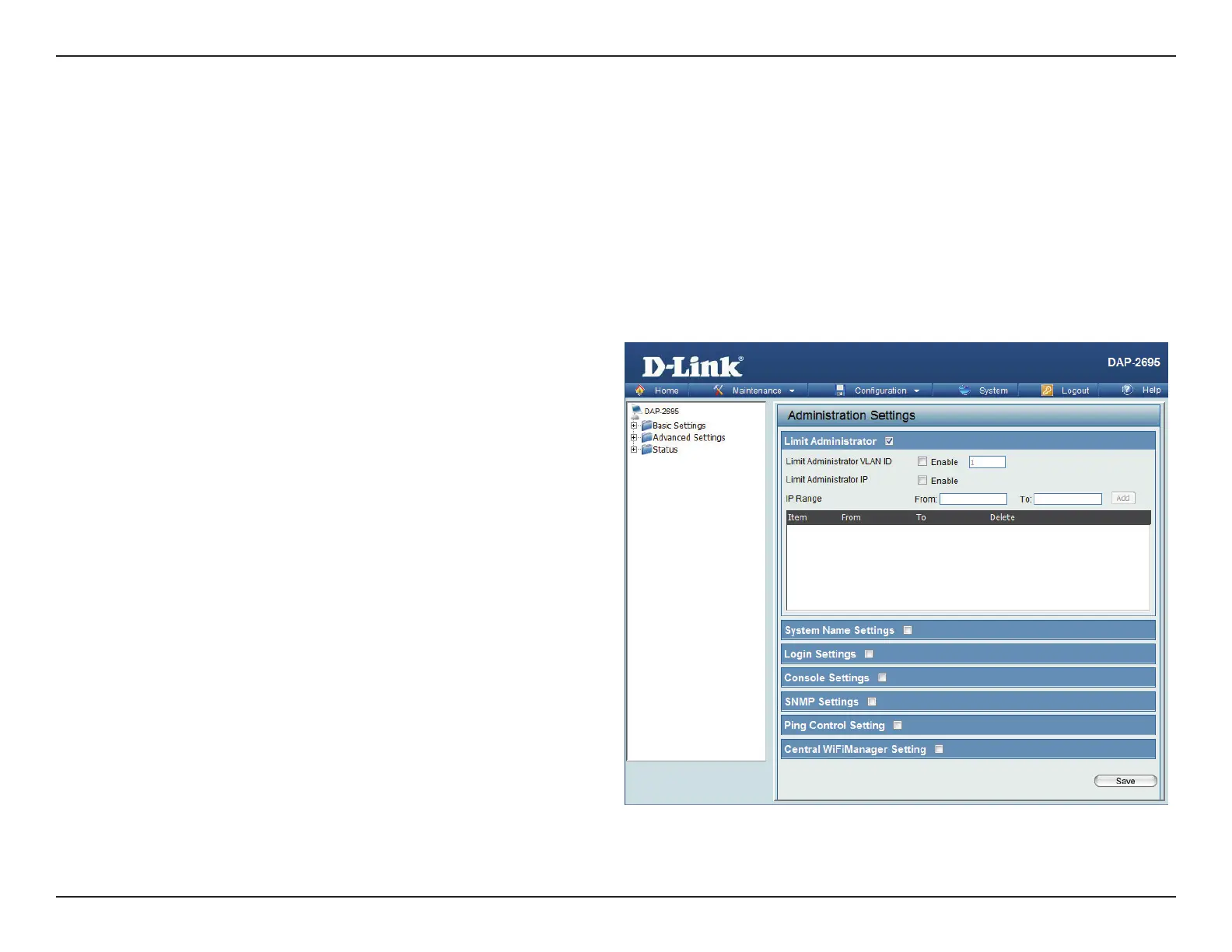

Limit Administrator VLAN
ID:
Limit Administrator IP:
IP Range:
Check the box provided and the
enter the specic VLAN ID that the
administrator will be allowed to log in
from.
Check to enable the Limit Administrator
IP address.
Enter the IP address range that the
administrator will be allowed to log in
from and then click the Add button.
Limit Administrator

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
