D-Link DAP-2695 User Guide

22D-Link DAP-2695 User Manual
Web User Interface

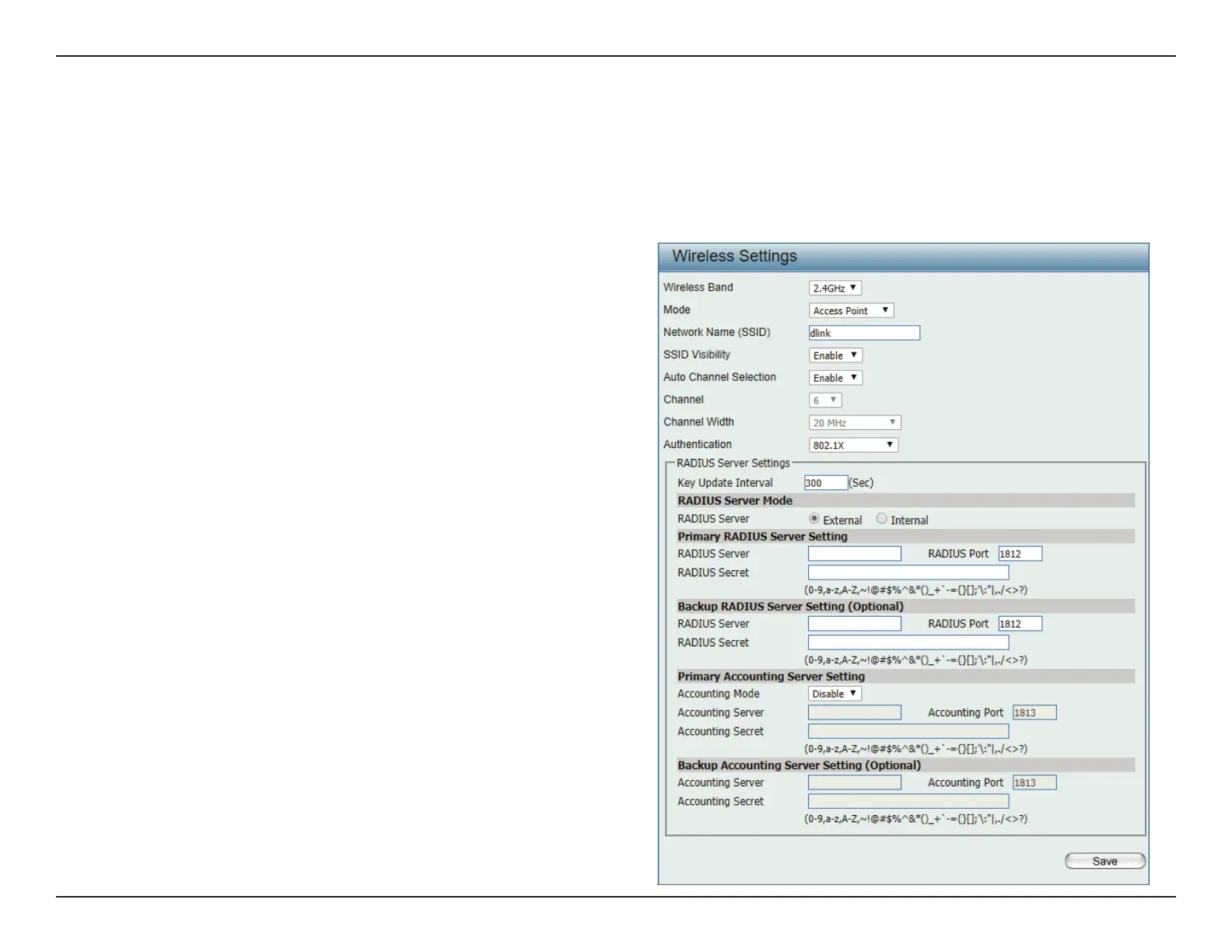

802.1x
802.1x is a standard for passing EAP over a wired or wireless LAN. With 802.1x, you package EAP messages in Ethernet frames and don’t use PPP.
This is desirable in situations in which the rest of PPP isn’t needed, where you’re using protocols other than TCP/IP, or where the overhead and
complexity of using PPP is undesirable.
802.1x also requires the user to install a Radius Server on the network for authentication.
Key Update Interval:
RADIUS Server Mode:
RADIUS Server:
RADIUS Port:
RADIUS Secret:
Accounting Mode:
Accounting Server:
Accounting Port:
Accounting Secret:
Choose interval (in seconds) in which the key is valid.
Choose external or Internal.
Enter the IP address of the RADIUS server.
Enter the RADIUS port.
Enter the RADIUS secret.
Click the drop-down menu to enable or disable
the accounting mode.
Enter the IP address of the accounting server.
Enter the accounting port.
Enter the accounting secret.

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
