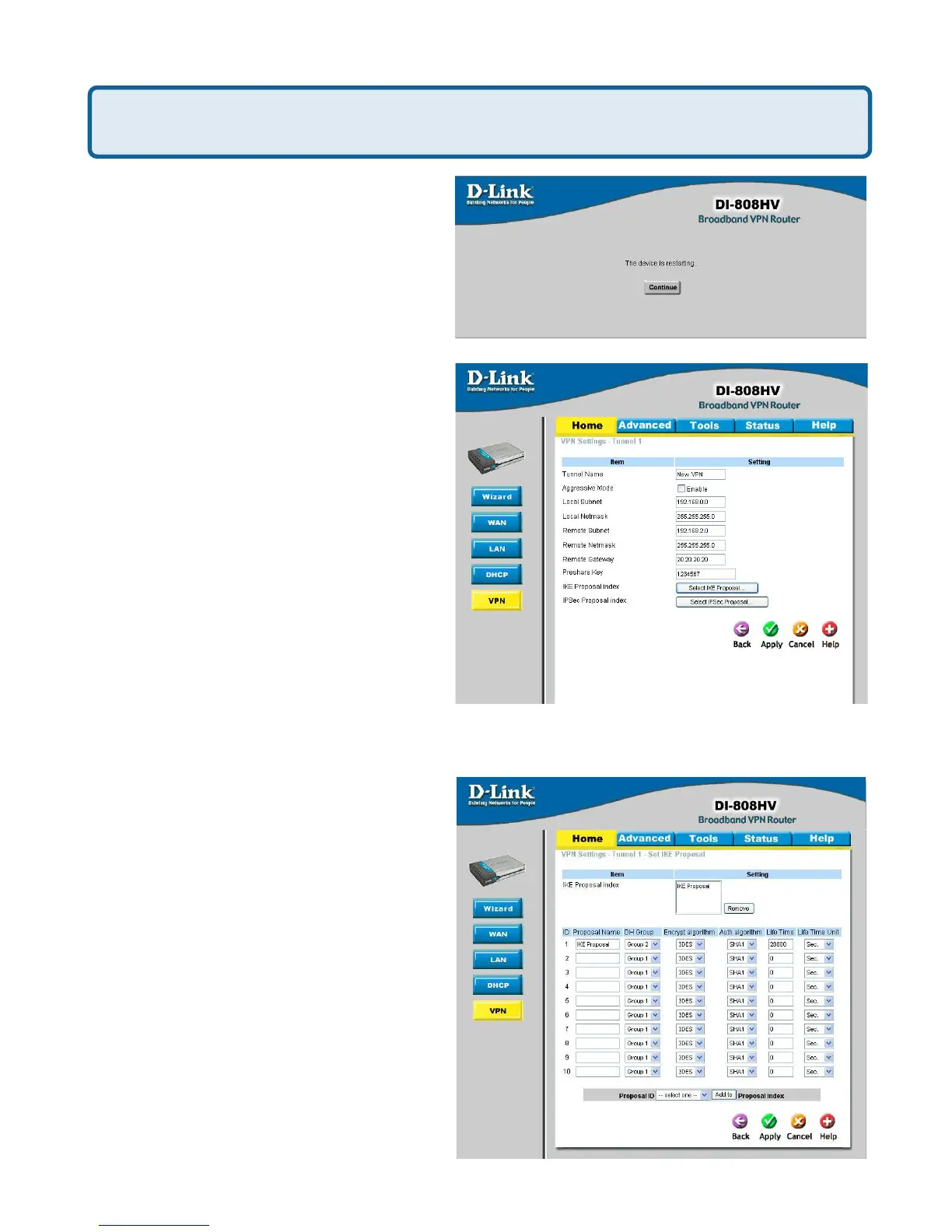

Step 7 In the Remote Gateway field
enter the WAN IP address of the remote
DI-804V or DI-804HV and in the
Preshare Key field, enter a key which
must be exactly the same as the
Preshare Key that is configured on the
DI-804V or DI-804HV.
Frequently Asked Questions (continued)
Step 10 Select 3DES as the
Encryption Algorithm and SHA-1 as the
Authentication Algorithm.
Step 8 Click Apply and then click on
Select IKE Proposal...
Step 9 Enter a name for proposal ID
number 1 and select Group 2 from the
DH Group drop down menu.
Step 11 Enter a Lifetime value of 28800
and then select Sec. as the unit for the
lifetime value.
How can I set up my DI-808HV to work with a DI-804V or DI-804HV Router?
(continued)
Step 6 The device will restart. Click on
the Continue button.
To Next Page
