4D-Link DNS-313 User Manual
Section 1 - Product Overview
Hardware Overview

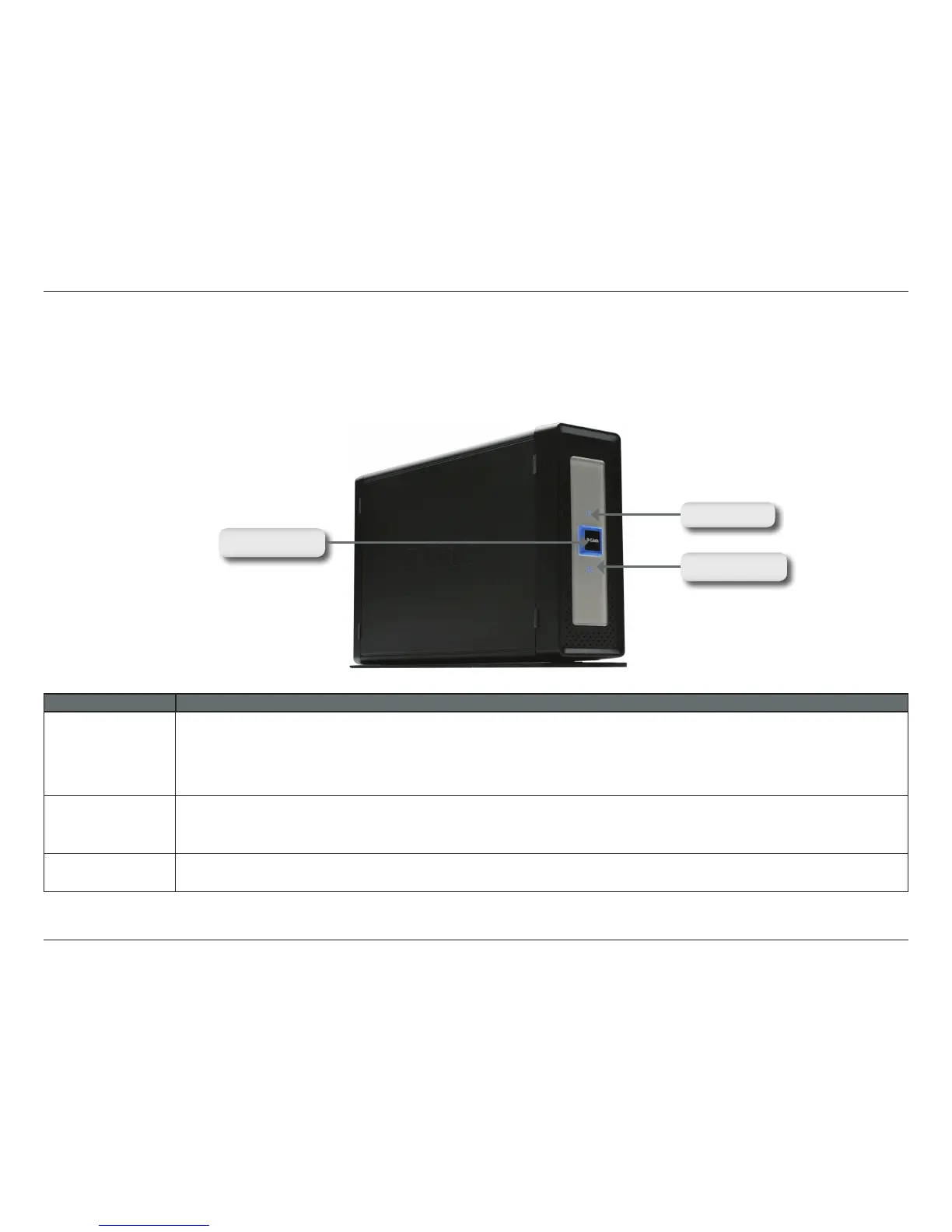

Front View
Power Button
Drive LED
Network LED
COMPONENT DESCRIPTION
Drive LED This LED will be solid BLUE when the drive is connected but inactive. The LED will blink when
the drive is being accessed, formatted or synchronized. The LED will be solid GREEN when the
remaining capacity of the drive is less than 5%. The LED will illuminate RED if the drive has failed.
Power Button Push in to power-on the DNS-313. The edges of the button will illuminate with a BLUE back lighting
when the device is powered on. Press again to turn off. There is a few seconds delay before the
device powers on or off.
Activity LED The Activity LED will be solid BLUE when there is an Ethernet connection. The Activity LED blinks
to indicate that there is LAN trafc.

Other manuals for D-Link DNS-313

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DNS-313 and is the answer not in the manual?

D-Link DNS-313 Specifications

Device Interfaces IconDevice Interfaces
Gigabit Ethernet port1 10/100/1000
USB port1 USB 2.0
Power socketexternal power adapter
Operating Environment IconOperating Environment
Operating temperature0˚ to 55˚ C (32˚ to 131˚ F)
Storage temperature-20˚ to 70˚ C (-4˚ to 158˚ F)
Operating humidity5% to 90% (non-condensing)
Weight and Dimensions IconWeight and Dimensions
Dimensions200 (L) x 124 (H) x 49 (W) mm
Weight1.29 Kg
Supported hard drive type3.5-inch internal SATA
