D-Link DNS-313 User Manual

11D-Link DNS-313 User Manual
Section 3 - Configuration

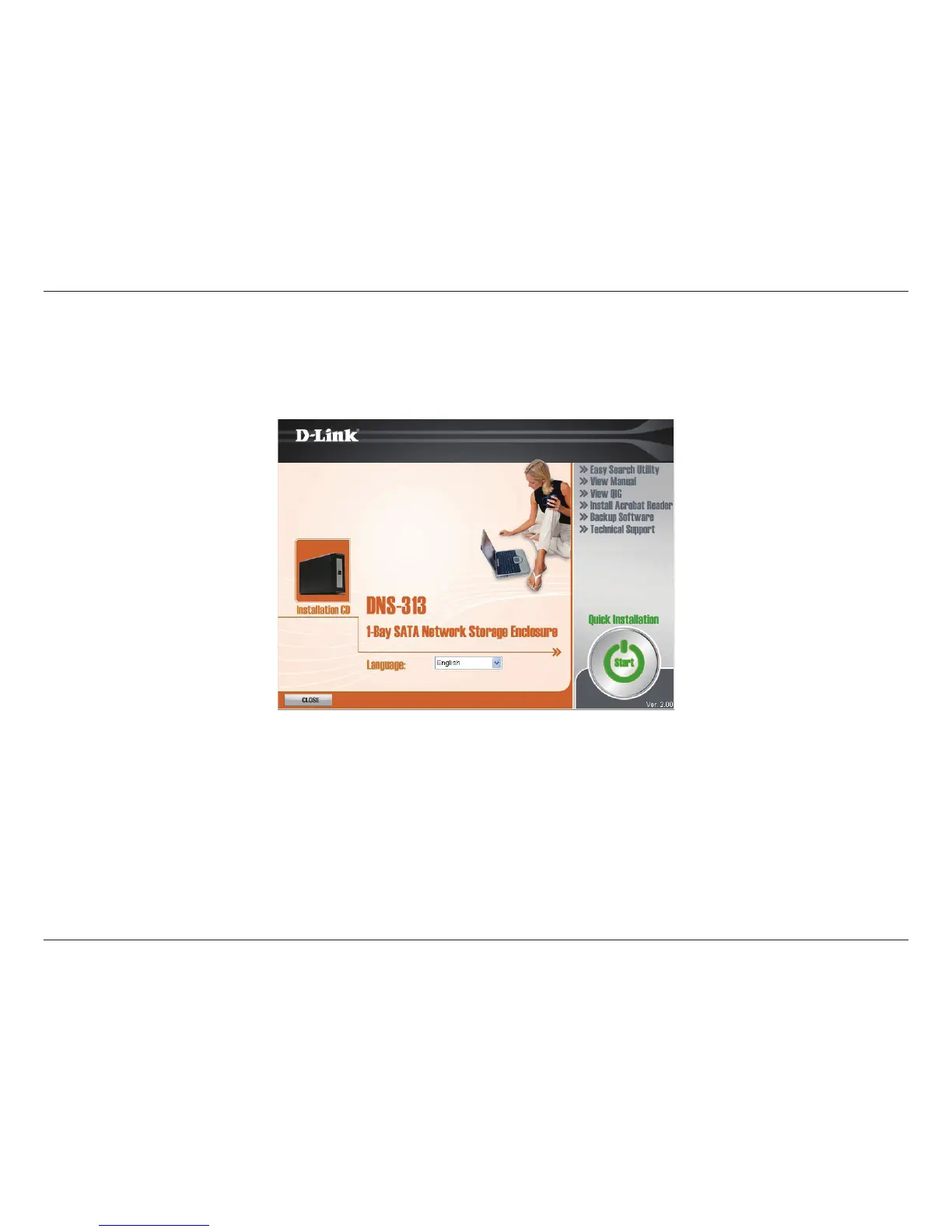

To use the D-Link Click n’ Connect utility, choose the preferred language, then click on the Quick Installation - Start
button in the menu. The button appears green when the cursor is placed over the button.
Click n’ Connect Utility

D-Link DNS-313 Specifications

Device Interfaces

Gigabit Ethernet port	1 10/100/1000
USB port	1 USB 2.0
Power socket	external power adapter

Operating Environment

Operating temperature	0˚ to 55˚ C (32˚ to 131˚ F)
Storage temperature	-20˚ to 70˚ C (-4˚ to 158˚ F)
Operating humidity	5% to 90% (non-condensing)

Weight and Dimensions

Dimensions	200 (L) x 124 (H) x 49 (W) mm
Weight	1.29 Kg
Supported hard drive type	3.5-inch internal SATA
