Section 3 - Conguration
Your device has two wireless radios, one operating on 5 GHz and one at 2.4 GHz.

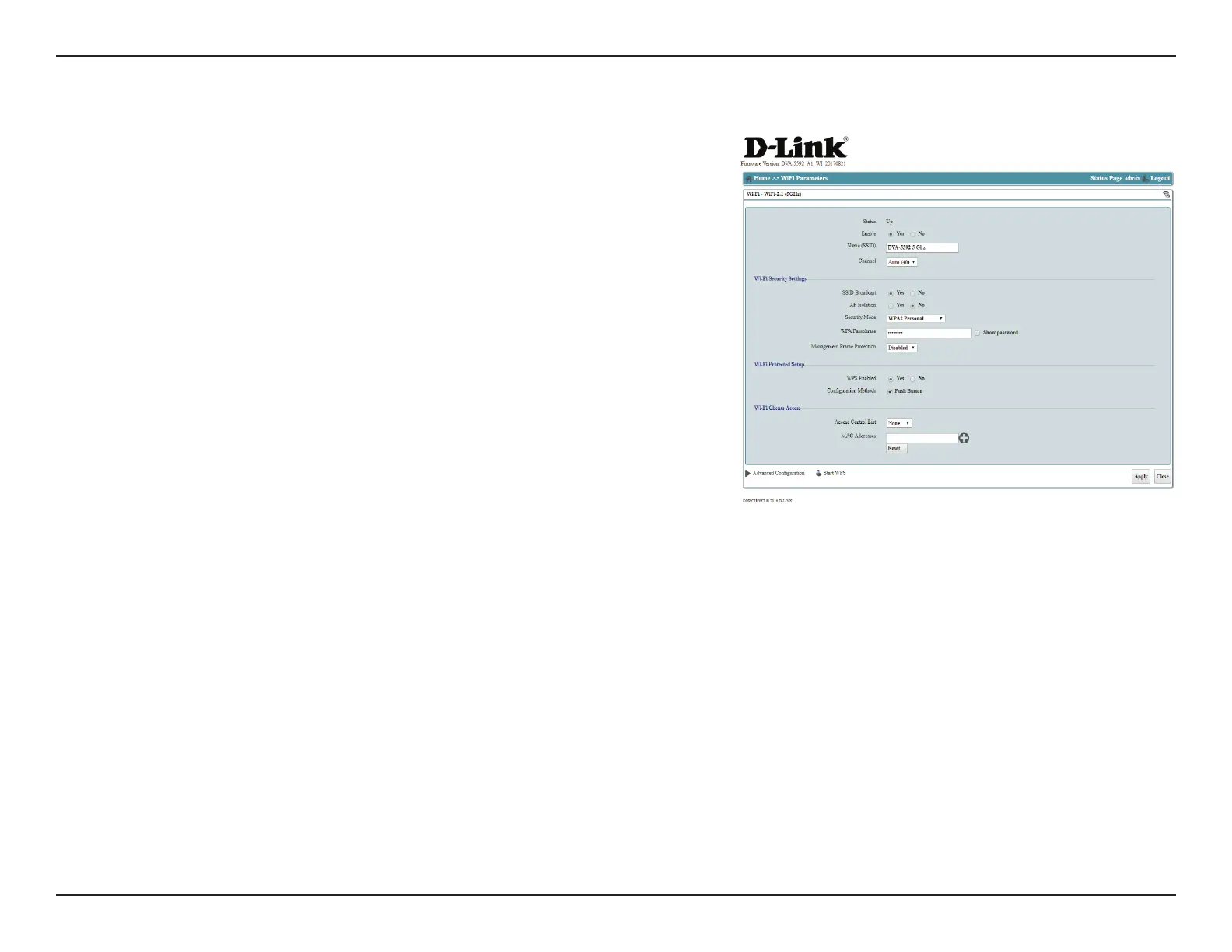

This screen allows you to congure the 5 GHz radio for 802.11ac/n/a wireless access.
WiFi-2.1 (5GHz)
Status: Indicates whether the interface is Up or Down.
Enable: Select Yes to enable the Wi-Fi access point. Selecting No will disable
Wi-Fi on this frequency
Name (SSID): Enter the name of your Wi-Fi access point.
Channel: Specify the channel number your access point will use.
Wi-Fi Security Settings
SSID Broadcast: Select Yes to broadcast the SSID. Selecting No will require all devices
wishing to connect to your network to enter the SSID manually in
addition to any security.
AP Isolation: Select Yes to isolate the wireless network from other devices on the
LAN while retaining Internet access. The default is No.
Security Mode: Select an encryption mode to help protect your Wi-Fi network from
being accessed by unauthorized devices. WPA2 Personal is the
default and recommended mode. WEP and older WPA standards
are less secure and provided for compatibility with older devices.
WPA Passphrase: Choose a strong password to help protect your network. The longer
and harder to guess a password is, the stronger the protection. The
password can be any letter, number, symbol, or space. Accent marks
and non-ASCII characters are not supported. Passwords must be at
least 8 characters.

D-Link DVA-5592 Specifications

General

Wireless Standard	802.11ac
Frequency Bands	2.4 GHz, 5 GHz
LAN Ports	4 x Gigabit Ethernet
WAN Port	1 x Gigabit Ethernet
VoIP	Yes
Weight	500 g
DSL	VDSL2
Security Features	WPA/WPA2, Firewall
Antennas	Internal Antennas
