D-Link DWL-2100AP User Manual

41DWL-2100AP User Manual

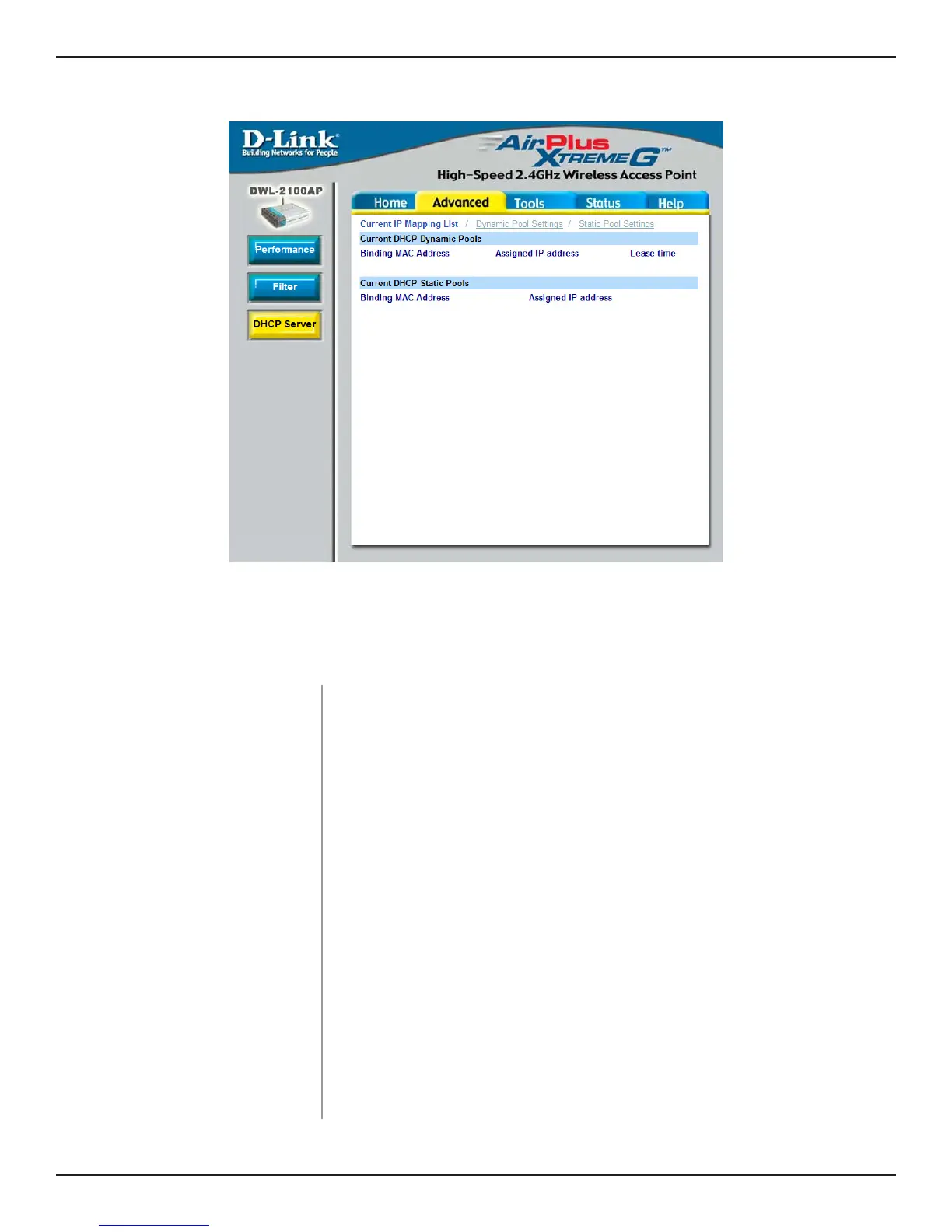

Current IP Mapping List
These are IP address pools to which the DHCP server function has
assigned dynamic IP addresses.
This screen displays information about the current DHCP dynamic and static IP
address pools. This information is available when you enable the DHCP function of the
DWL-2100AP and assign dynamic and static IP address pools.
Current DHCP
Dynamic Pools:
Binding MAC
address:
Assigned IP
address:
Lease Time:
The MAC address of a device on the network that is within the
DHCP dynamic IP address pool.
The current corresponding DHCP-assigned dynamic IP address
of the device.
The length of time that the dynamic IP address will be valid.
These are IP address pools to which the DHCP server function has
assigned static IP addresses.
The MAC address of a device on the network that is within the
DHCP static IP address pool.
The current corresponding DHCP-assigned static IP address of
the device.
Current DHCP
Static Pools:
Binding MAC
address:
Assigned IP
address:

D-Link DWL-2100AP Specifications

General

Frequency Band	2.4 GHz
Data Transfer Rate	54 Mbps
Security	WEP, WPA, WPA2
LAN Port	1 x 10/100Base-TX (RJ-45)
Device Type	Wireless Access Point
Form Factor	External
Data Link Protocol	IEEE 802.11b, IEEE 802.11g
Antenna Qty	1
Interface	1 x 10Base-T/100Base-TX - RJ-45
Power Supply	External power adapter
Wireless Standard	IEEE 802.11b/g
Antenna	Detachable
Compliant Standards	IEEE 802.11b, IEEE 802.11g
Encryption Algorithm	WEP, WPA, WPA2
Authentication Method	RADIUS
Features	MAC address filtering
Operating Modes	Access Point, Repeater
