D-Link DWL-2100AP User Manual

61DWL-2100AP User Manual

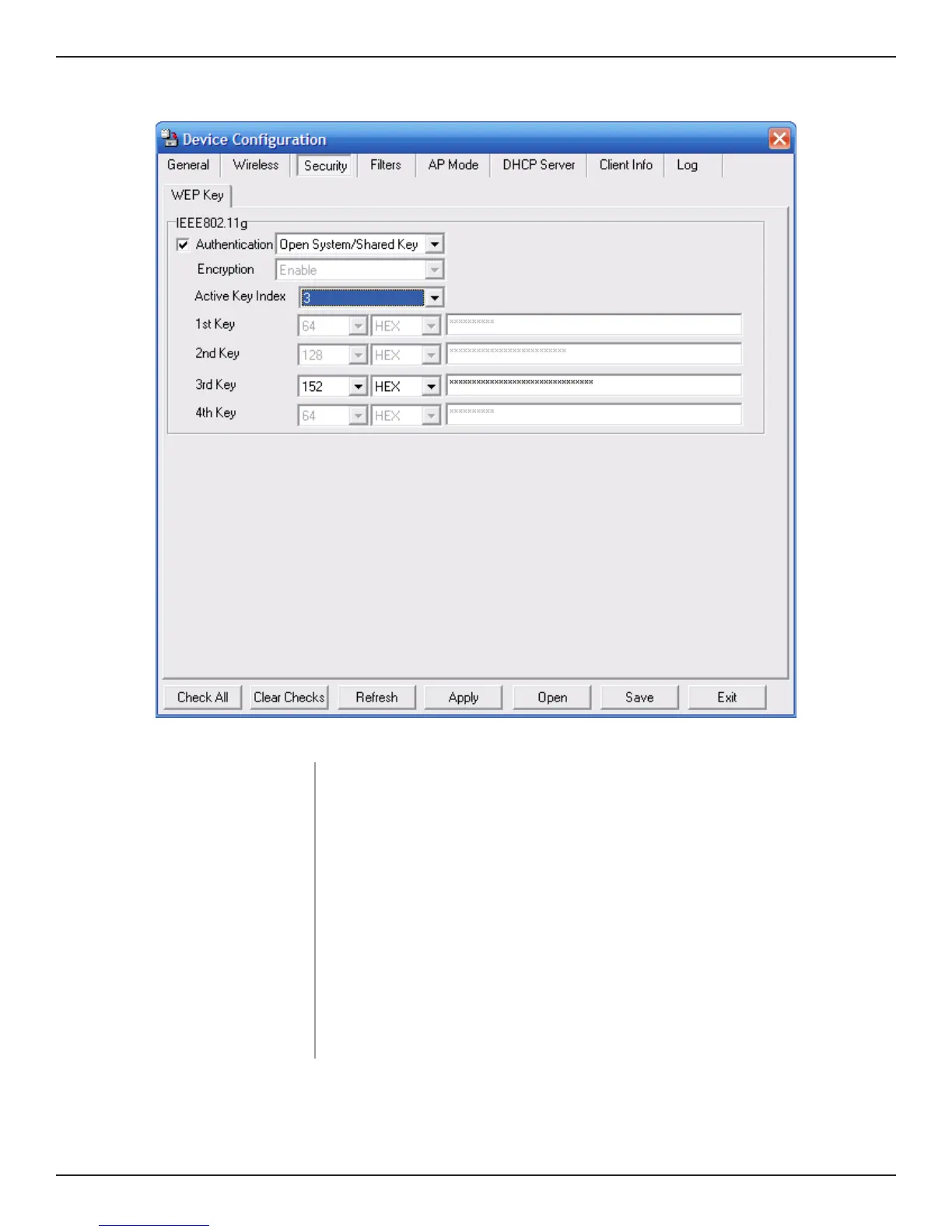

WEP Encryption
Select the key size (64-bit, 128-bit, or 152-bit) and key type (HEX or
ASCII) and then enter a string to use as the key. The key length is
automatically adjusted based on the settings you choose.
Active Key Index:
Select which defined key is active on the selected device(s).
Key Values:
The key is communicated across the network.
Open:
Shared:
Open System/
Shared Key:
Limited to communication with devices that share the same
WEP settings.
The key is communicated and identical WEP settings are required.
Authentication
Type:
Select from the pulldown menu the type of authentication to be used
on the selected device(s).

D-Link DWL-2100AP Specifications

General

Frequency Band	2.4 GHz
Data Transfer Rate	54 Mbps
Security	WEP, WPA, WPA2
LAN Port	1 x 10/100Base-TX (RJ-45)
Device Type	Wireless Access Point
Form Factor	External
Data Link Protocol	IEEE 802.11b, IEEE 802.11g
Antenna Qty	1
Interface	1 x 10Base-T/100Base-TX - RJ-45
Power Supply	External power adapter
Wireless Standard	IEEE 802.11b/g
Antenna	Detachable
Compliant Standards	IEEE 802.11b, IEEE 802.11g
Encryption Algorithm	WEP, WPA, WPA2
Authentication Method	RADIUS
Features	MAC address filtering
Operating Modes	Access Point, Repeater
