D-Link DWL-2100AP User Manual

44DWL-2100AP User Manual

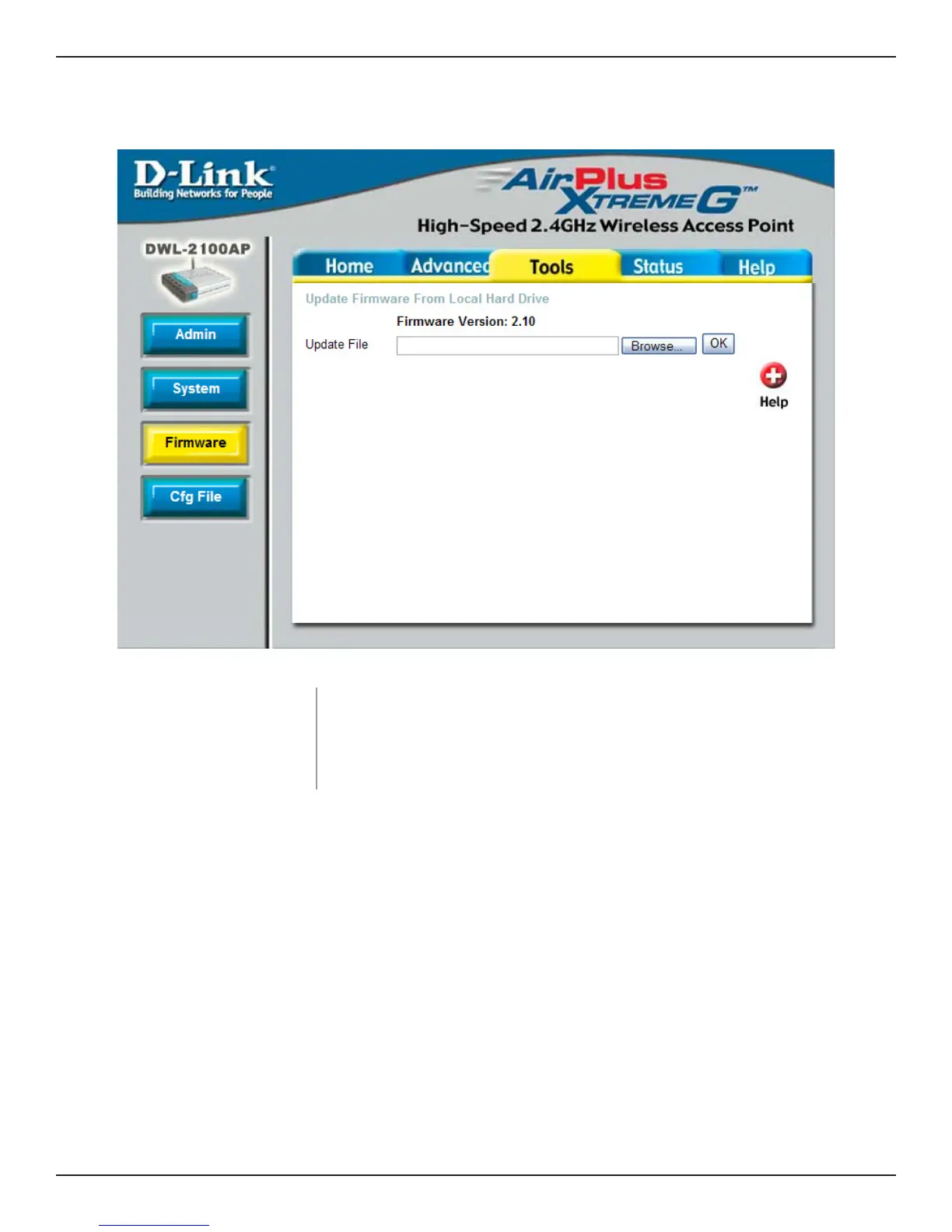

Update File:
After you have downloaded the most recent version of the firmware
from http://support.dlink.com to your hard drive, you can Browse
your hard drive to locate the downloaded file. Select the file and click
OK to update the firmware.
Upgrade Firmware

D-Link DWL-2100AP Specifications

General

Frequency Band	2.4 GHz
Data Transfer Rate	54 Mbps
Security	WEP, WPA, WPA2
LAN Port	1 x 10/100Base-TX (RJ-45)
Device Type	Wireless Access Point
Form Factor	External
Data Link Protocol	IEEE 802.11b, IEEE 802.11g
Antenna Qty	1
Interface	1 x 10Base-T/100Base-TX - RJ-45
Power Supply	External power adapter
Wireless Standard	IEEE 802.11b/g
Antenna	Detachable
Compliant Standards	IEEE 802.11b, IEEE 802.11g
Encryption Algorithm	WEP, WPA, WPA2
Authentication Method	RADIUS
Features	MAC address filtering
Operating Modes	Access Point, Repeater
