D-Link DWL-2100AP User Manual

18DWL-2100AP User Manual

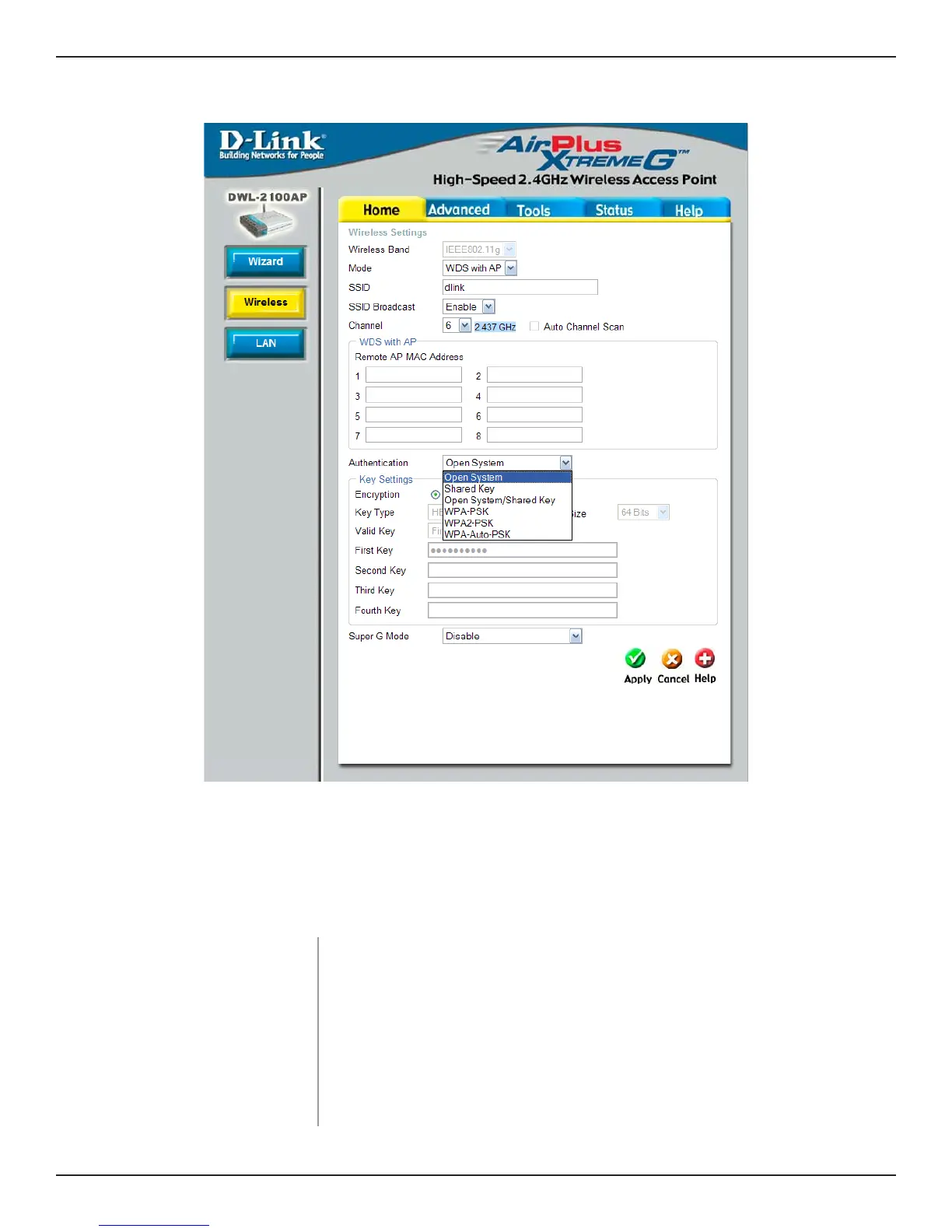

WDS with AP
In WDS with AP mode, the DWL-2100AP wirelessly connects multiple networks, while still functioning
as a wireless AP. WDS (Wireless Distribution System) allows access points to communicate with one
another wirelessly in a standardized way. It can also simplify the network infrastructure by reducing the
amount of cabling required. Basically the access points will act as a client and an access point at the
same time.
IEEE 802.11g
WDS with AP is selected from the pull-down menu.
Service Set Identifier (SSID) is the name designated for a specific
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
Wireless Band:
Mode:
SSID:

D-Link DWL-2100AP Specifications

General

Frequency Band	2.4 GHz
Data Transfer Rate	54 Mbps
Security	WEP, WPA, WPA2
LAN Port	1 x 10/100Base-TX (RJ-45)
Device Type	Wireless Access Point
Form Factor	External
Data Link Protocol	IEEE 802.11b, IEEE 802.11g
Antenna Qty	1
Interface	1 x 10Base-T/100Base-TX - RJ-45
Power Supply	External power adapter
Wireless Standard	IEEE 802.11b/g
Antenna	Detachable
Compliant Standards	IEEE 802.11b, IEEE 802.11g
Encryption Algorithm	WEP, WPA, WPA2
Authentication Method	RADIUS
Features	MAC address filtering
Operating Modes	Access Point, Repeater
