D-Link DWL-2100AP User Manual

46DWL-2100AP User Manual

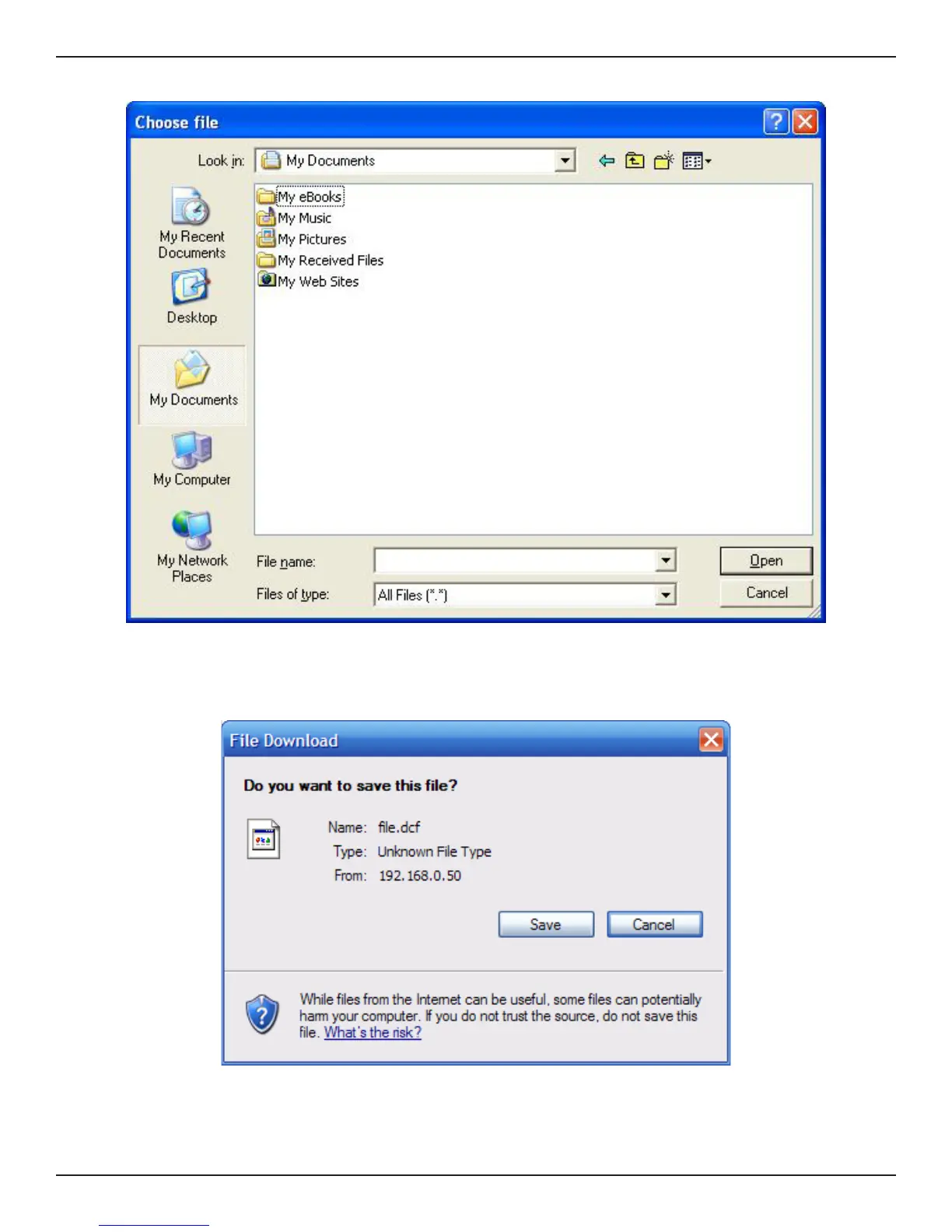

When you click Browse in the previous screen, the dialog box shown above appears.
Select the file you wish to download and click Open.
When this dialog box appears, click Save and select a location to save the configuration file.

D-Link DWL-2100AP Specifications

General

Frequency Band	2.4 GHz
Data Transfer Rate	54 Mbps
Security	WEP, WPA, WPA2
LAN Port	1 x 10/100Base-TX (RJ-45)
Device Type	Wireless Access Point
Form Factor	External
Data Link Protocol	IEEE 802.11b, IEEE 802.11g
Antenna Qty	1
Interface	1 x 10Base-T/100Base-TX - RJ-45
Power Supply	External power adapter
Wireless Standard	IEEE 802.11b/g
Antenna	Detachable
Compliant Standards	IEEE 802.11b, IEEE 802.11g
Encryption Algorithm	WEP, WPA, WPA2
Authentication Method	RADIUS
Features	MAC address filtering
Operating Modes	Access Point, Repeater
