D-Link DWL-2100AP User Manual

75DWL-2100AP User Manual
To upgrade the firmware:
Download the latest firmware upgrade from http://support.dlink.com
to an easy to find location on your hard drive.

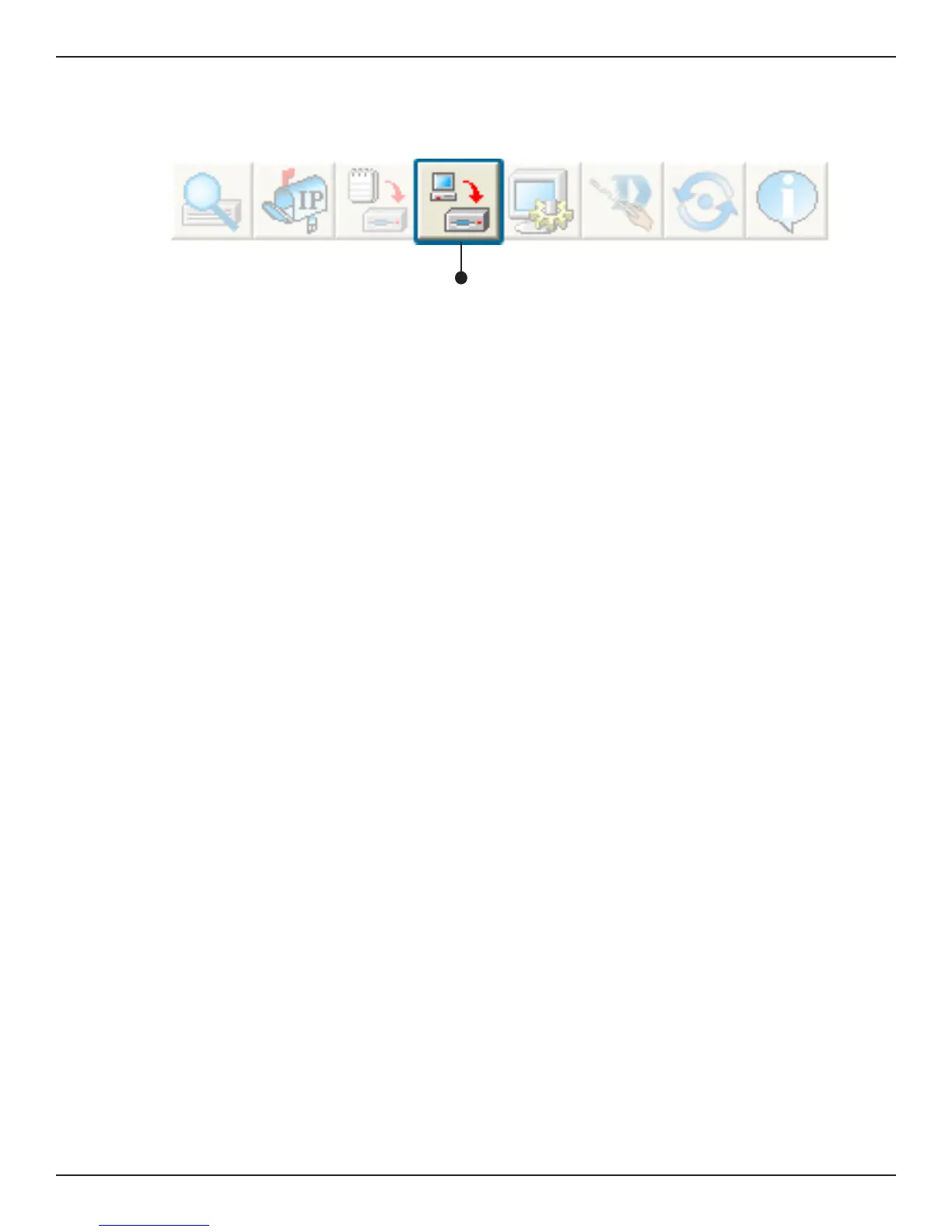

Click on the firmware button as shown above.
A popup window will appear. Locate the firmware upgrade file and
click Open.
You can upgrade the firmware by clicking on this button after
selecting the device(s).
Firmware



IMPORTANT! DO NOT DISCONNECT POWER FROM THE UNIT WHILE THE
FIRMWARE IS BEING UPGRADED.

D-Link DWL-2100AP Specifications

General

Frequency Band	2.4 GHz
Data Transfer Rate	54 Mbps
Security	WEP, WPA, WPA2
LAN Port	1 x 10/100Base-TX (RJ-45)
Device Type	Wireless Access Point
Form Factor	External
Data Link Protocol	IEEE 802.11b, IEEE 802.11g
Antenna Qty	1
Interface	1 x 10Base-T/100Base-TX - RJ-45
Power Supply	External power adapter
Wireless Standard	IEEE 802.11b/g
Antenna	Detachable
Compliant Standards	IEEE 802.11b, IEEE 802.11g
Encryption Algorithm	WEP, WPA, WPA2
Authentication Method	RADIUS
Features	MAC address filtering
Operating Modes	Access Point, Repeater
