D-Link DWL-2100AP User Manual

80DWL-2100AP User Manual

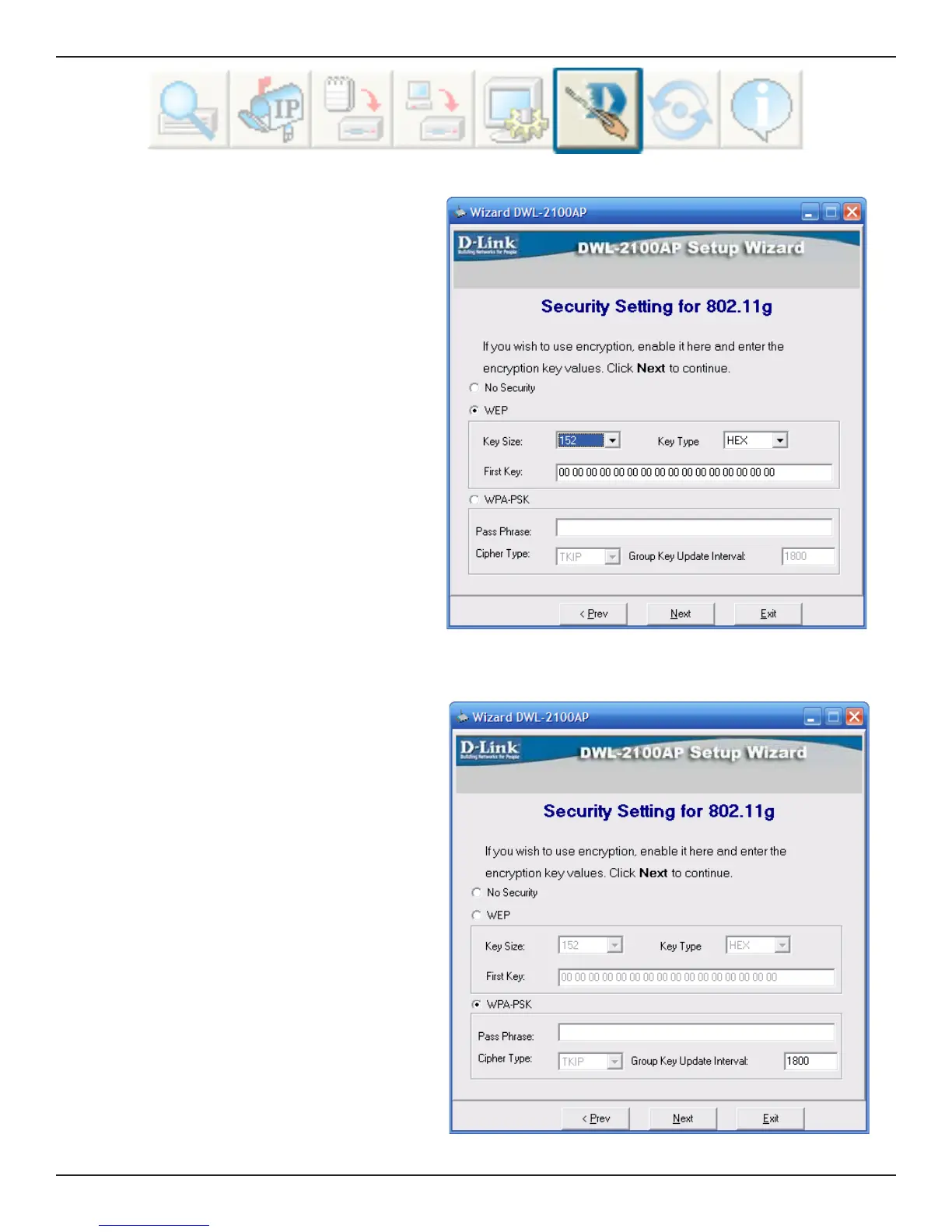

If you selected WEP, select the key size
(64, 128, or 152-bit), the key type (HEX or
ASCII), and then enter your WEP key.
Click Next.
If you selected WPA-Personal (PSK),
enter the passphrase.
Cipher Type TKIP is used. 1800 for Group
Key Update Interval is suggested.
Click Next.

D-Link DWL-2100AP Specifications

General

Frequency Band	2.4 GHz
Data Transfer Rate	54 Mbps
Security	WEP, WPA, WPA2
LAN Port	1 x 10/100Base-TX (RJ-45)
Device Type	Wireless Access Point
Form Factor	External
Data Link Protocol	IEEE 802.11b, IEEE 802.11g
Antenna Qty	1
Interface	1 x 10Base-T/100Base-TX - RJ-45
Power Supply	External power adapter
Wireless Standard	IEEE 802.11b/g
Antenna	Detachable
Compliant Standards	IEEE 802.11b, IEEE 802.11g
Encryption Algorithm	WEP, WPA, WPA2
Authentication Method	RADIUS
Features	MAC address filtering
Operating Modes	Access Point, Repeater
