D-Link DWL-2100AP User Manual

96DWL-2100AP User Manual

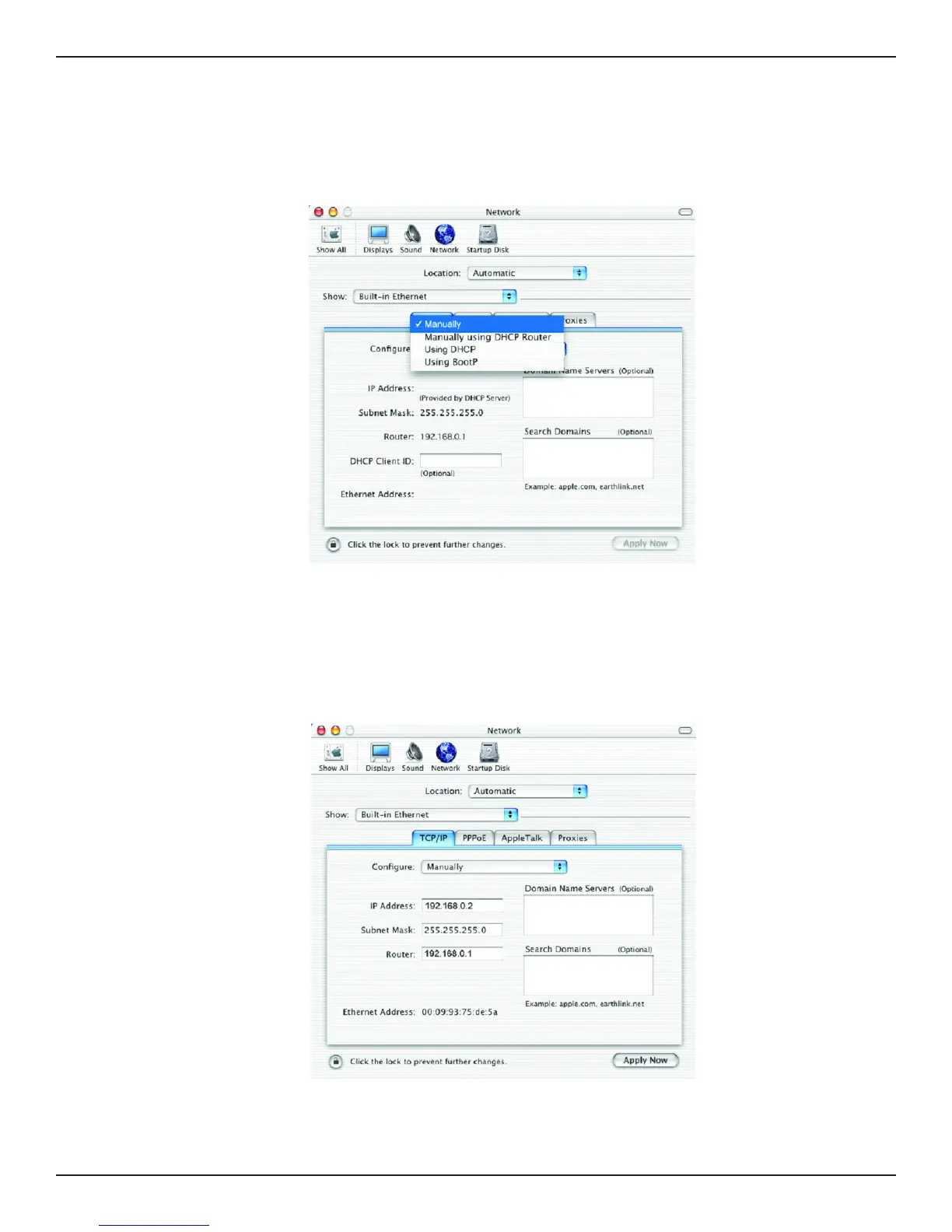

Select Built-in Ethernet in the Show pull-down menu.
Select Manually in the Configure pull-down menu.
Input the Static IP Address, the Subnet Mask and the Router IP Address in the
appropriate fields.
Click Apply Now.

D-Link DWL-2100AP Specifications

General

Frequency Band	2.4 GHz
Data Transfer Rate	54 Mbps
Security	WEP, WPA, WPA2
LAN Port	1 x 10/100Base-TX (RJ-45)
Device Type	Wireless Access Point
Form Factor	External
Data Link Protocol	IEEE 802.11b, IEEE 802.11g
Antenna Qty	1
Interface	1 x 10Base-T/100Base-TX - RJ-45
Power Supply	External power adapter
Wireless Standard	IEEE 802.11b/g
Antenna	Detachable
Compliant Standards	IEEE 802.11b, IEEE 802.11g
Encryption Algorithm	WEP, WPA, WPA2
Authentication Method	RADIUS
Features	MAC address filtering
Operating Modes	Access Point, Repeater
