D-Link GO-RT-N300 User Manual

30D-Link GO-RT-N300 User Manual
Section 3 - Conguration
Access Control List

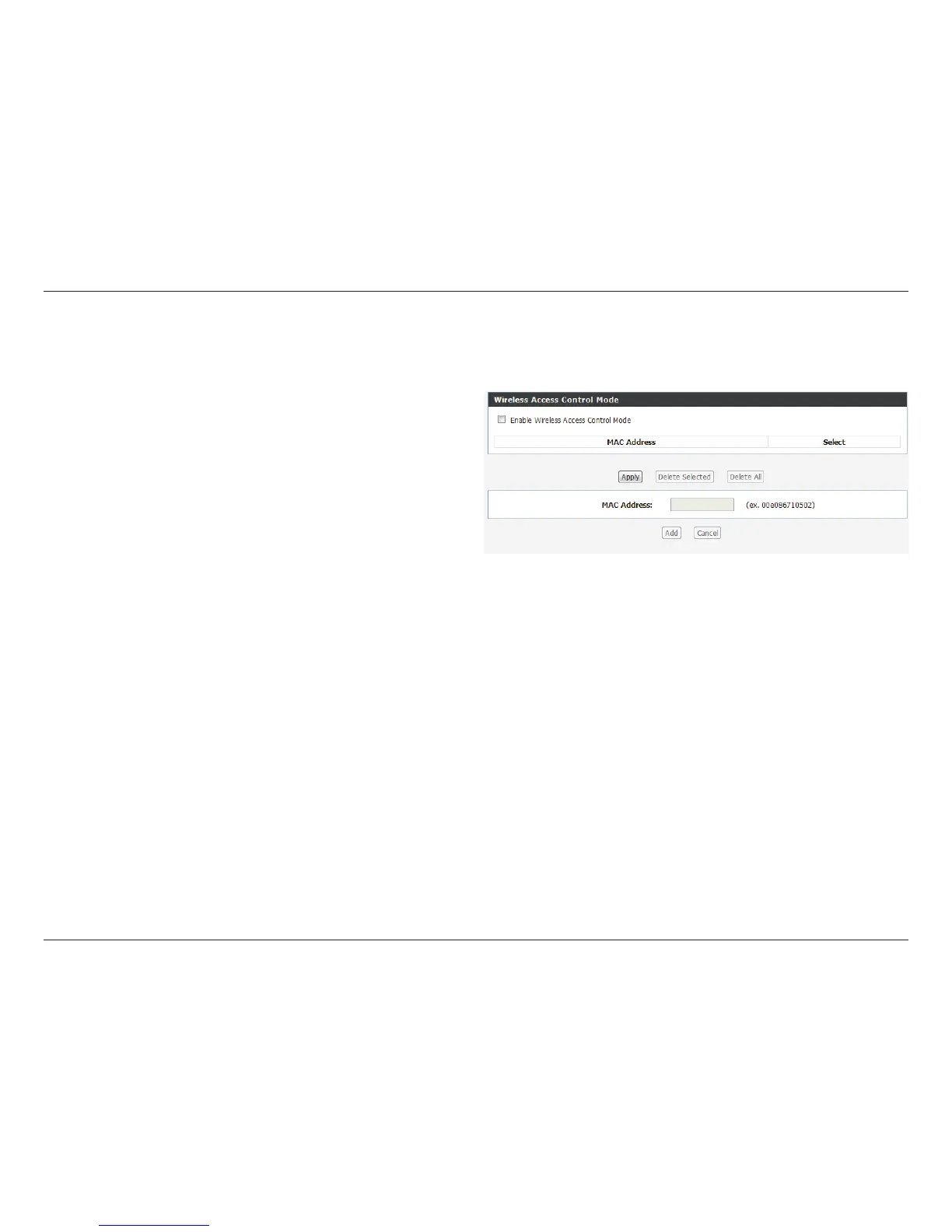

Click the ACL Setup button to edit the ACL (Access Control List). This takes you to the screen below.
Click to enable Wireless Access Control Mode. In this
mode, only listed wireless devices will be allowed to
connect to the wireless network.
Click the Apply button when you are done.
Enter the MAC Address of a device you wish to allow
access for to the WLAN.
Click the Add button when you are done. This will add
the device’s MAC Address to the table above.
Click the Delete button and the button in the Select field to delete the device.
Enable Wireless
Access Control
Mode:
MAC Address:

D-Link GO-RT-N300 Specifications

Wireless Signal Rates

IEEE 802.11n 20MHz channel	150 Mbps (max)
IEEE 802.11n 40MHz channel	300 Mbps (max)
IEEE 802.11g rates	54 Mbps - 48 Mbps - 36 Mbps - 24 Mbps - 18 Mbps - 12 Mbps - 11 Mbps - 9 Mbps - 6 Mbps

Operating Environment

operating temperature	0 °C to 40 °C (32 °F to 104 °F)
storage temperature	-20 °C to 65 °C (-4 °F to 149 °F)
humidity	10% minimum to 95% maximum (non-condensing)

Dimensions

length	160 mm (6.3 inches)
width	120 mm (4.72 inches)
height	59 mm (2.32 inches)
