D-Link GO-RT-N300 User Manual

32D-Link GO-RT-N300 User Manual
Section 3 - Conguration
Authentication
Type:
Encryption
Strength:
Security
Encryption
(WEP) Key:
Pre-shared
Key:
IP Address:
Subnet Mask:

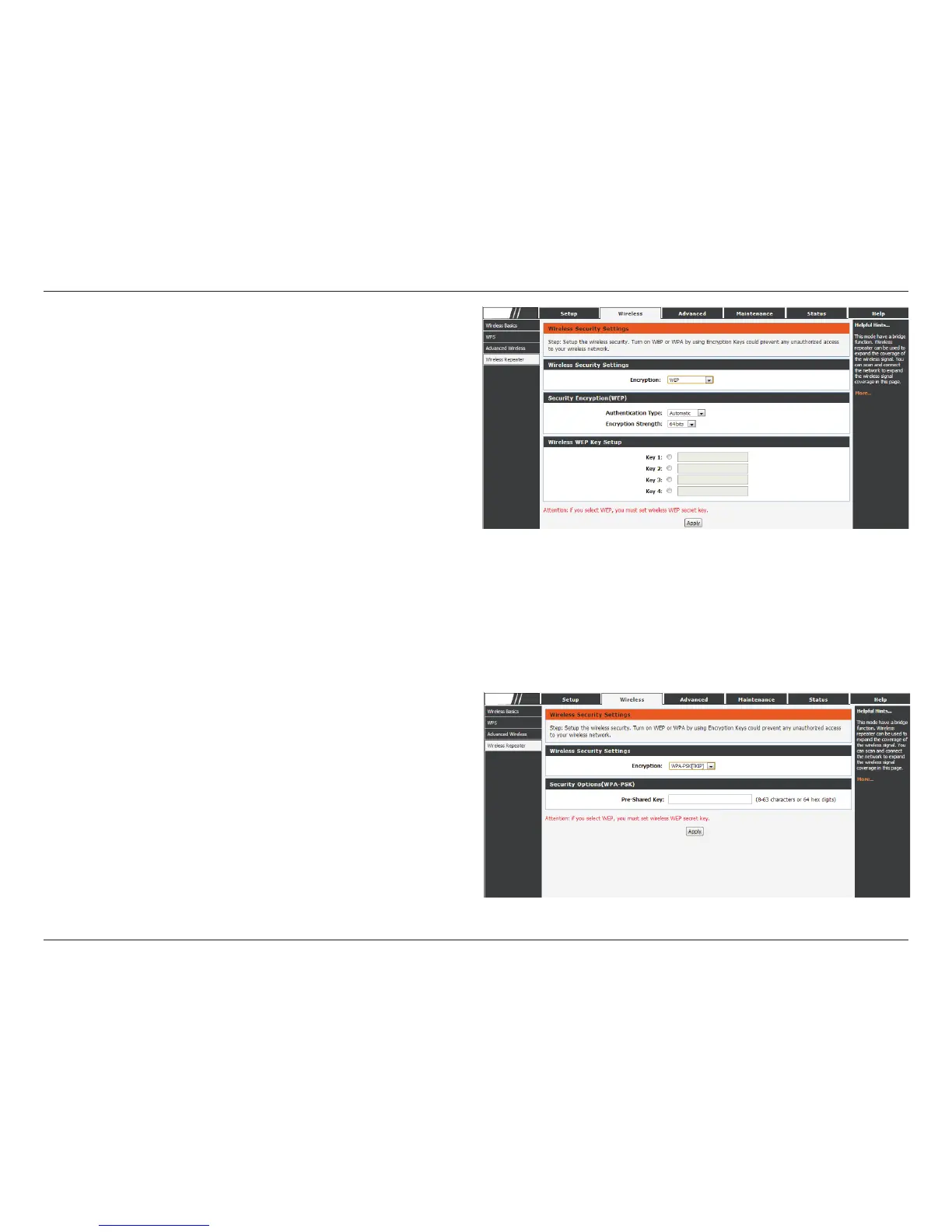

You can then set up wireless security for the network.
If you select WEP as the security option, the following
settings below will appear.
Select the authentication type.
Select the encryption strength.
Select up to four WEP keys.
If you have selected any WPA option, the following setting will appear.
Enter a pre-shared key.
You can then set up wireless security for the network.
Enter the IP address.
Enter the subnet mask.
Click the Finish button to save the configuration.
Click the Apply button to save any changes made. You will be taken to the next page.
GO-RT-N300
GO-RT-N300

D-Link GO-RT-N300 Specifications

Wireless Signal Rates

IEEE 802.11n 20MHz channel	150 Mbps (max)
IEEE 802.11n 40MHz channel	300 Mbps (max)
IEEE 802.11g rates	54 Mbps - 48 Mbps - 36 Mbps - 24 Mbps - 18 Mbps - 12 Mbps - 11 Mbps - 9 Mbps - 6 Mbps

Operating Environment

operating temperature	0 °C to 40 °C (32 °F to 104 °F)
storage temperature	-20 °C to 65 °C (-4 °F to 149 °F)
humidity	10% minimum to 95% maximum (non-condensing)

Dimensions

length	160 mm (6.3 inches)
width	120 mm (4.72 inches)
height	59 mm (2.32 inches)
