D-Link GO-RT-N300 User Manual

67D-Link GO-RT-N300 User Manual
Section 5 - Connecting to a Wireless Network

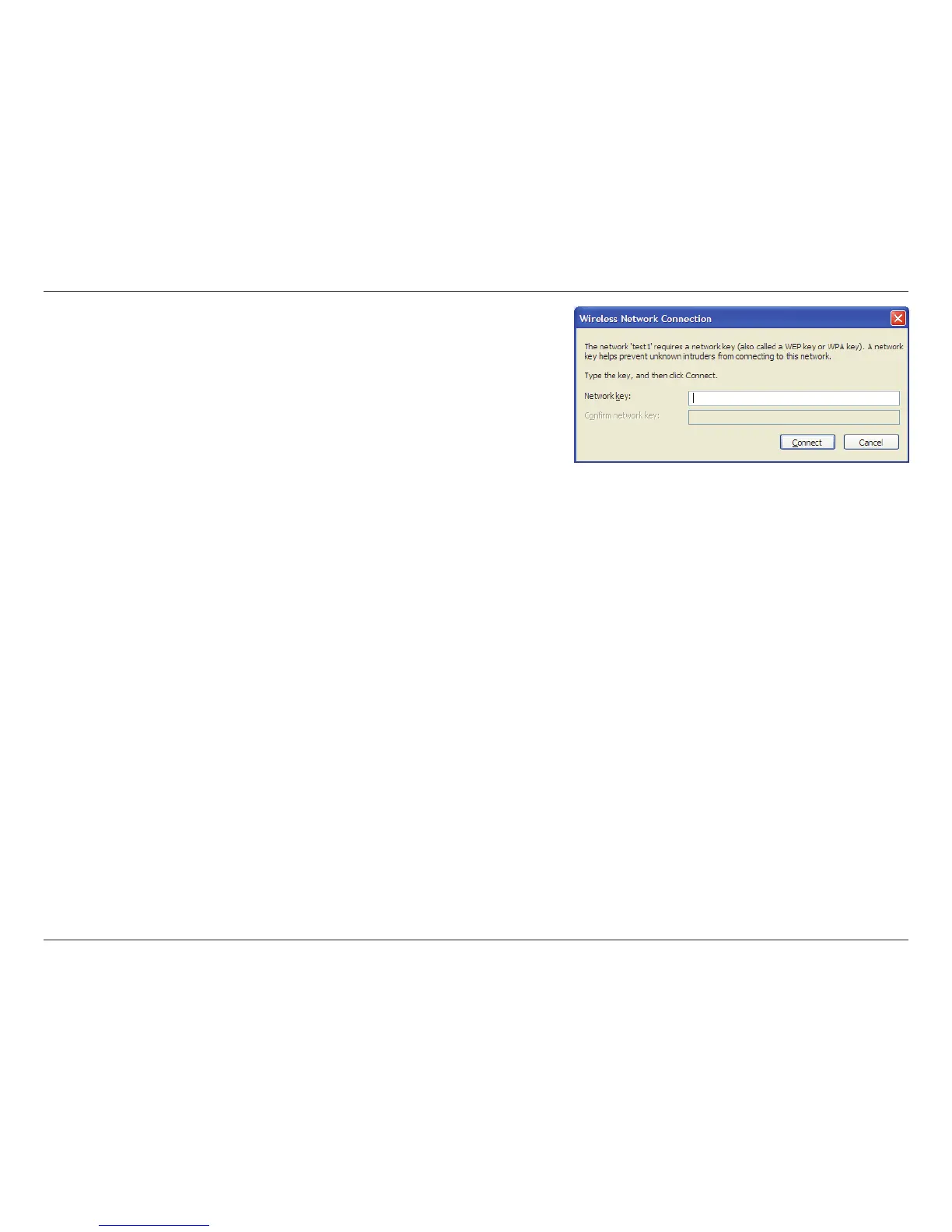

3. The Wireless Network Connection box will appear. Enter the WPA-PSK
passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct. The
WPA-PSK passphrase must be exactly the same as on the wireless router.

D-Link GO-RT-N300 Specifications

Wireless Signal Rates

IEEE 802.11n 20MHz channel	150 Mbps (max)
IEEE 802.11n 40MHz channel	300 Mbps (max)
IEEE 802.11g rates	54 Mbps - 48 Mbps - 36 Mbps - 24 Mbps - 18 Mbps - 12 Mbps - 11 Mbps - 9 Mbps - 6 Mbps

Operating Environment

operating temperature	0 °C to 40 °C (32 °F to 104 °F)
storage temperature	-20 °C to 65 °C (-4 °F to 149 °F)
humidity	10% minimum to 95% maximum (non-condensing)

Dimensions

length	160 mm (6.3 inches)
width	120 mm (4.72 inches)
height	59 mm (2.32 inches)
