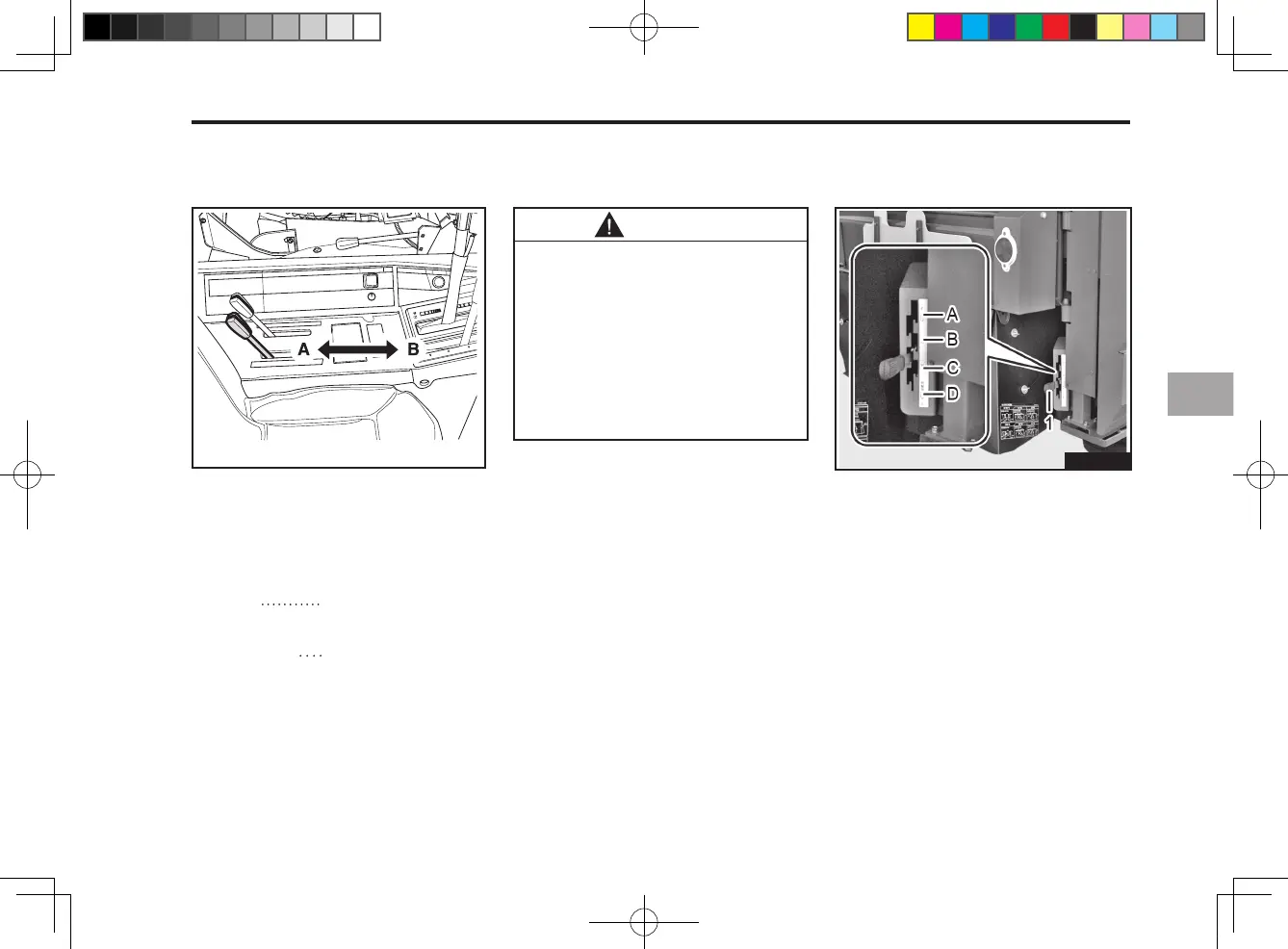

REAPING CLUTCH LEVER
417O416A
(1) Reaping Clutch Lever
(A) Engage (B) Disengage
When the aux iliary shift
lever is at the position of
“High Speed”, the reaping
clutch lever will not be en-
gaged. Certainly, engage
auxiliary shift lever to the
position of low speed on
standard when reaping.
•
CAUTION
This lever is to engaged/disen-
gaged the reaping unit.
Engage The reap ing unit
operates.
Disengage The reaping unit
stops.
STRAW DEBRIS TREATMENT
If straw debris treatment amount
needs to be adjusted, operate
through straw debris treatment ad-
justment lever.
1. When the separation is bad or
grains with ear stems are found,
place the debris treatment lever to
direction “D”.
2. When grain loss or crushed grains
are considerable, the debris treat-
ment adjustment lever should be
placed to the direction “A”
(1) Straw debris treatment
(A) When Bad Seperation (B) Rice
(C) Wheat (D) When Loss of Grain
