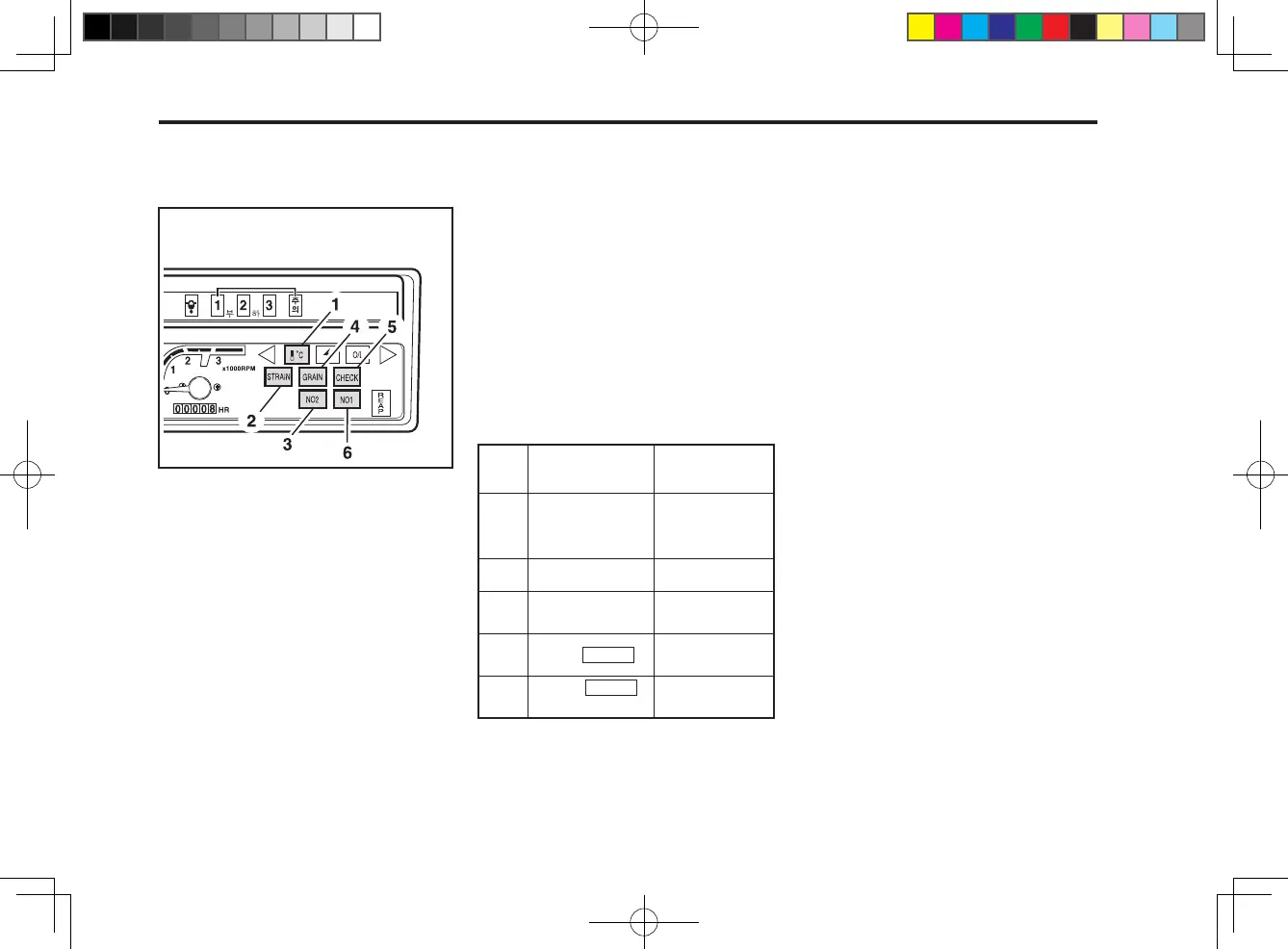

(1) Grain Lamp
(2) Straw Discharge Alarm Lamp
(3) No. 2 Auger Blockage Alarm Lamp
(4) Coolant Indication Lamp
(5) Check indicator light
(6) No. 1 Auger Blockage Alarm Lamp
ALARM LIGHT DEVICE
417O421B
HOW TO READ THE LOAD GAUGE
The load gauge displays the load
of the threshing unit by number.
The larger the number, the greater
the load.
1. Select the speed based on the
load gauge.
Please select the appropriate
speed according to the load
gauge.
Step
Load lamp •
Horn
Suitable shift
1
1
Acceleration
is possible
2
12
Proper speed
3
123
Maximum
speed
4
123
CAUTION
Deceleration
is necessary
5
123
CAUTION
Horn (Beep)
Decelerate
immediately
2. Manual reaping is allowed at
only Step 1, 2 or 3.
To Next Page
