Daedong KIOTI DK40SE - ATTACHING DEVICES FOR AN IMPLEMENT

6 -4 DK35SE/DK40(C)SE/DK45(C)SE
H23O532A
H23O533A

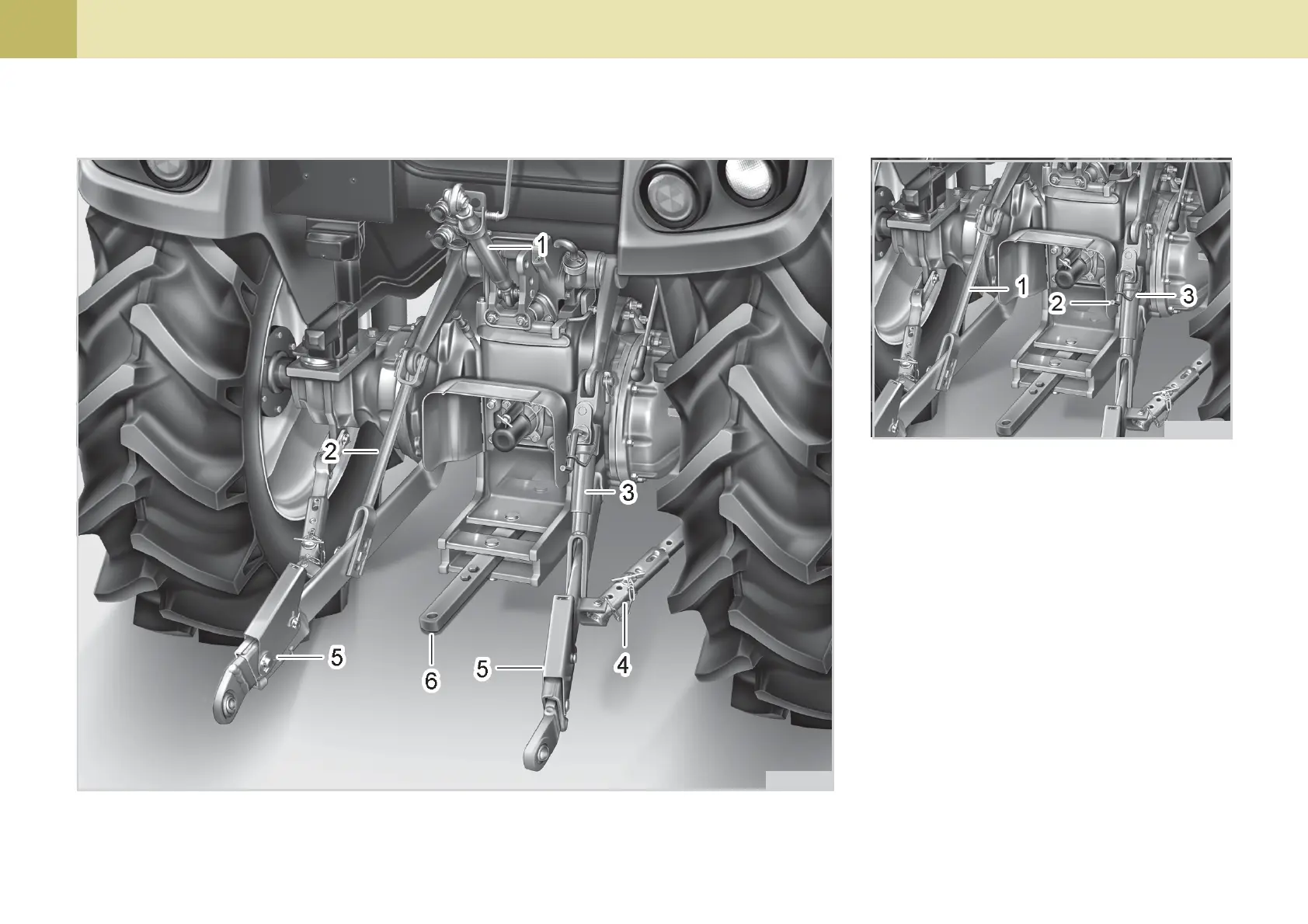

ATTACHING DEVICES FOR AN IMPLEMENT
(3) Crank Lifting Rod (R)
(4) Telescopic Stabilizers
(1) Lift Rod (2) Lift Rod Handle
(3) Stopper
1. Adjust the implement level balanced
by turning the lift rod handle.
2. After adjustment, fix it with the
stopper.
(1) Top Link
(2) Crank Lifting Rod (L)
ADJUSTMENT OF LIFT ROD
(5) Lower Link
(6) Draft Hitch
