DESCRIPTION OF OPERATING SYSTEM
4
H11O454A H11O455A

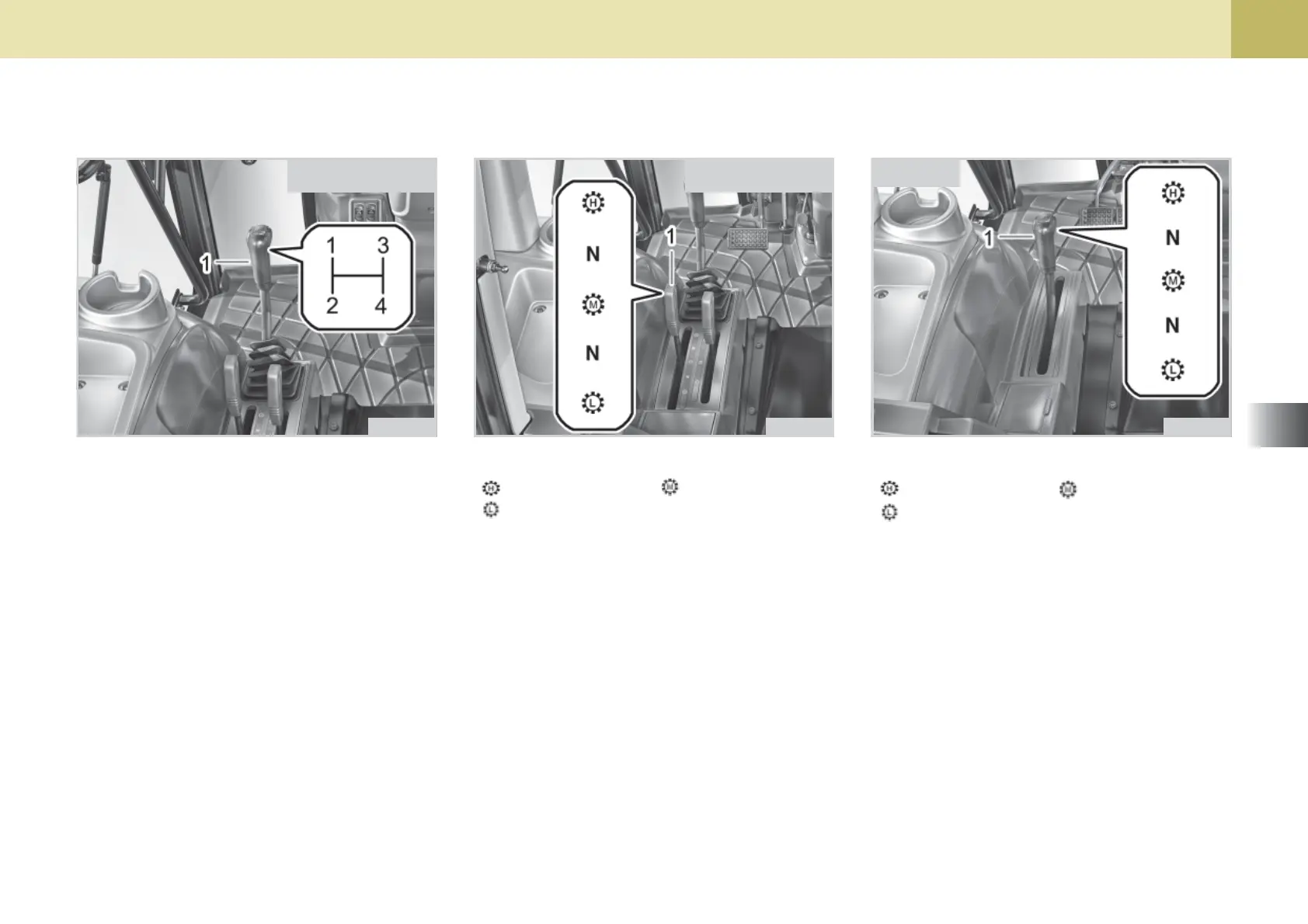

Four speeds can be selected by mov-
ing this main shift lever in “H” shaped
path. You can shift into this lever from
the 1st to 4th gears even when the trac-
tor body is moving by disengaging the
clutch during driving as these gears are
synchromeshed.
In total, 24 forward driving speeds and
24 reverse driving speeds are provided
by combination of the main shift lever
(4 speeds), range shift lever (3 speeds),
shuttle shift lever, and creep speed
lever.
(1) Main Shift Lever
H11O456A
High, mid and low speeds can be se-
lected by the range shift lever.
Follow the instruction below if a prob-
lem occurs during shifting this lever:
1. Put the range shift lever into the neu-
tral position.
2. Depress the pedal slightly to prevent
the gears in the transmission from
rotating.
3. Shift the range shift lever into the
desired position with the brake pedal
and front/rear driving pedals
depressed. (HST type)
(1) Range Gear Shift lever
( ) High Speed ( ) Mid Speed
( ) Low Speed (
N
) Neutral
(1) Range Shift Lever
( ) High Speed ( ) Mid Speed
( ) Low Speed (
N
) Neutral
HST typeMANUAL Type MANUAL Type
High, mid and low speeds can be se-
lected by the range shift lever. Make
sure to shift the range shift lever after
the tractor is completely stopped by
depressing the clutch pedal.
If the lever is not moved freely or makes
abnormal noise, put the lever into the
neutral position, engage and disengage
the clutch, and then try to shift the lever.
MAIN SHIFT LEVER RANGE GEAR SHIFT LEVER
