DK35(CH)SE/DK40(CH)SE/DK45(C)HSE
H11O453A

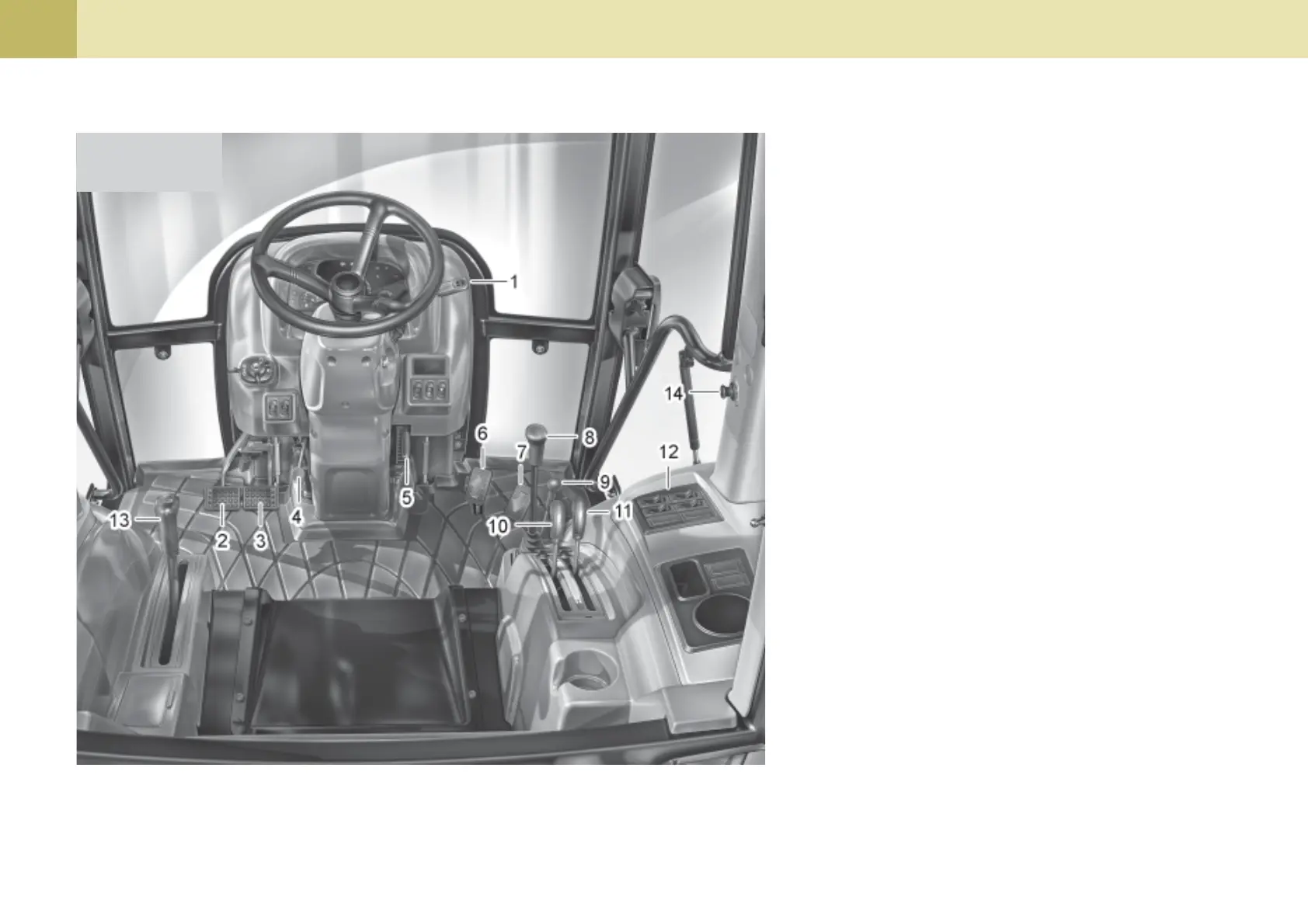

CABIN MODEL
(HST type)
(1) Hand Throttle Lever
(2) Brake Pedal (L)
(3) Brake Pedal (R)
(4) Tilt Steering Pedal
(5) Parking Brake Lock Lever
(6) Forward Driving Pedal
(7) Reverse Driving Pedal
(8) Joystick Lever
(9) Double Acting Lever (A, B)
(10) Draft Control Lever
(11) Lift Position Control Lever
(12) Switch Panel
(13) Range Gear Shift Lever
(14) Power Socket
