DESCRIPTION OF OPERATING SYSTEM
4

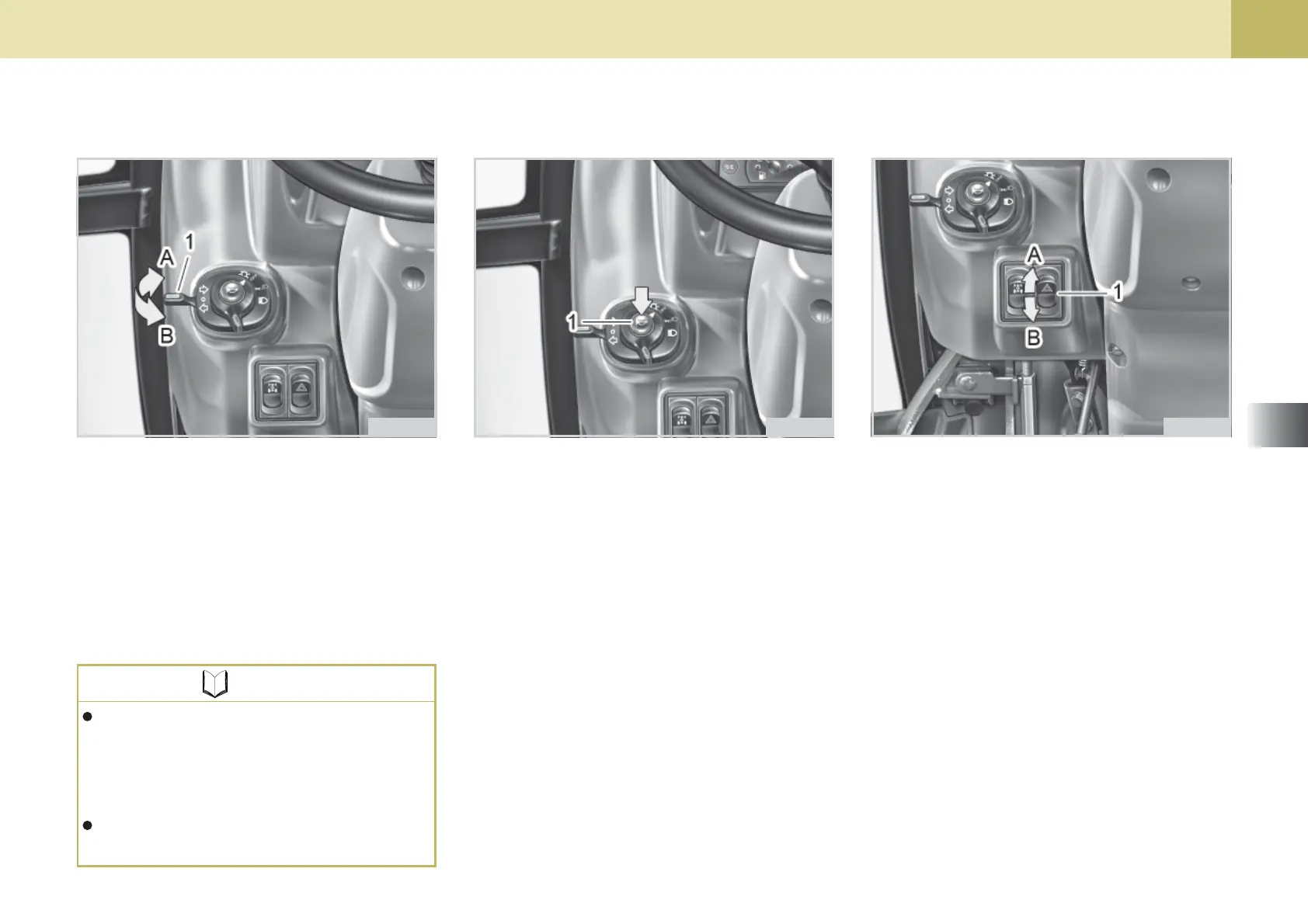

(1) Horn switch
The horn switch can be operated with-
out the key inserted. Pressing this
switch sounds the horn.
HORN SWITCH
H11O405A
H11O409A
This switch can be used to warn other
vehicles when malfunction occurs in the
tractor while driving on a public road.
Pressing this switch up blinks the haz-
ard lamp and returning it turns off the
lamp. The turn signal lights cannot be
operated while this switch is pressed
up to operate the hazard lamps.
HAZARD LAMP SWITCH
(1) Hazard lamp switch
(A) ON (B) OFF
H11O410A
TURN SIGNAL LIGHT SWITCH
H11O405A
H11O408A
(1) Turn signal light switch
(A) Right turn (B) Left turn
NOTE
The turn signal light lever is not the
self-return type. Therefore, make
sure to return the lever manually
after turning the vehicle.
The turn signal lamps can be oper-
ated without the key inserted.
The turn signal lights are used when
turning the vehicle left or right. Pulling
the lever up blinks the right turn signal
light while pushing the lever down blinks
the left turn signal light.
