DESCRIPTION OF OPERATING SYSTEM
4

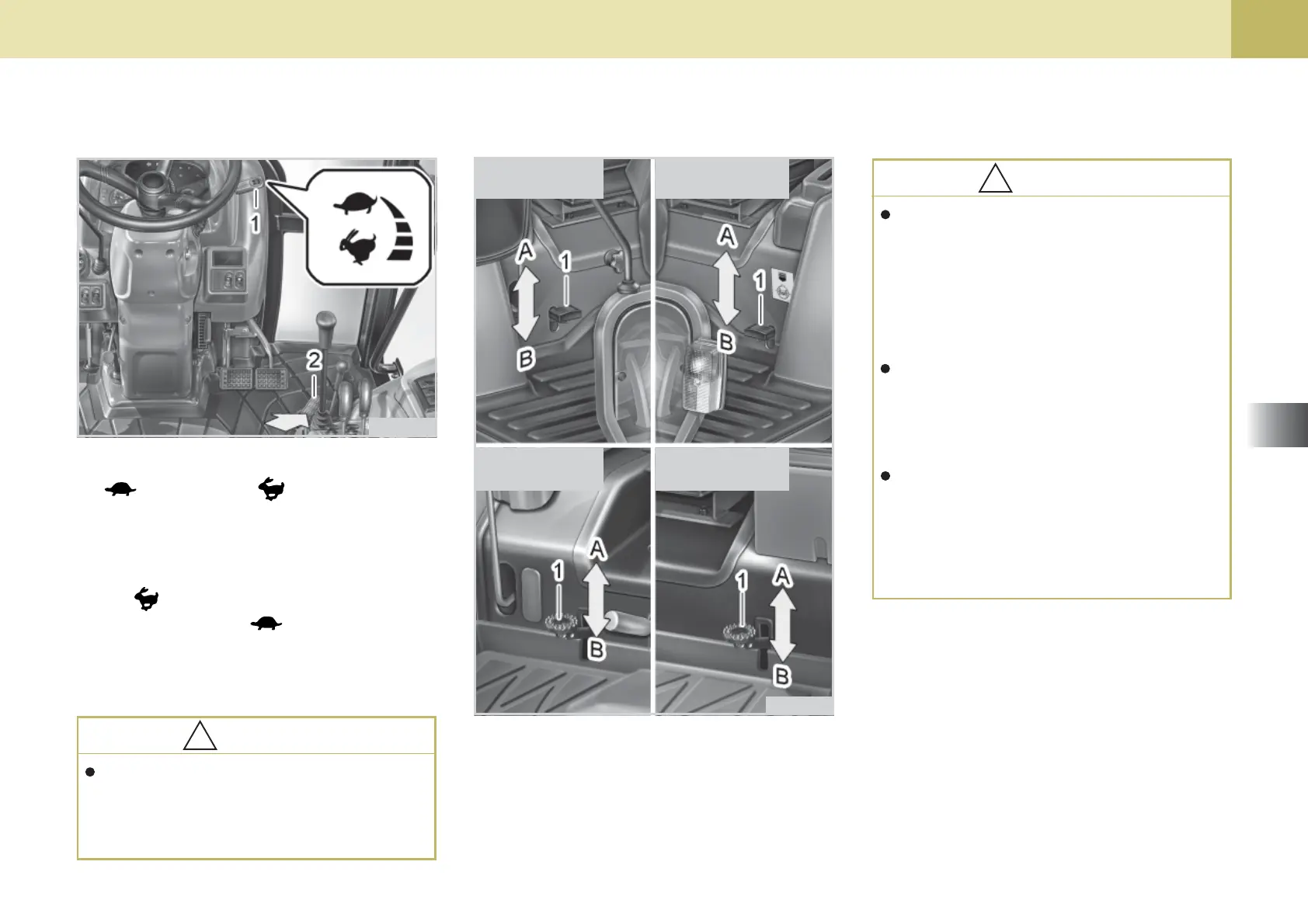

DIFFERENTIAL LOCK PEDAL
(1) Lock Pedal
(A) Release to “Disengage”
(B) Depress to “Engage”
HAND THROTTLE LEVER
H11O431A
H23O466A
H23O467A
(1) Hand Throttle Lever (2) Accelerator Pedal
Decrease Increase
CABIN MODEL
(Manual Type)
CABIN MODEL
(HST Type)
!!
!!
!
CAUTION
The differential lock should be
engaged only while the driving
clutch is engaged. If the differ-
ential lock pedal does not move
when depressing it, try to de-
press it again after releasing it.
When engaging the differential
lock, reduce the engine speed.
After engaging it, accelerate the
tractor.
Make sure to set the steering
wheel in the straight ahead po-
sition while the differential lock
is in use. Otherwise, the differ-
ential system can be damaged.
ROPS MODEL
(Manual Type)
ROPS MODEL
(HST Type)
The hand throttle lever is to control the
engine rpm.The engine accelerates to
its full speed by pulling the hand throttle
lever ( position) completely out while
pushing the lever ( position) decel-
erates the engine.
The hand throttle lever is mainly used
while working on a field.
!!
!!
!
CAUTION
Using the accelerator lever dur-
ing driving can lead to an acci-
dent as it becomes hard to de-
celerate the tractor rapidly.
