DESCRIPTION OF OPERATING SYSTEM
4
JOYSTICK LEVER

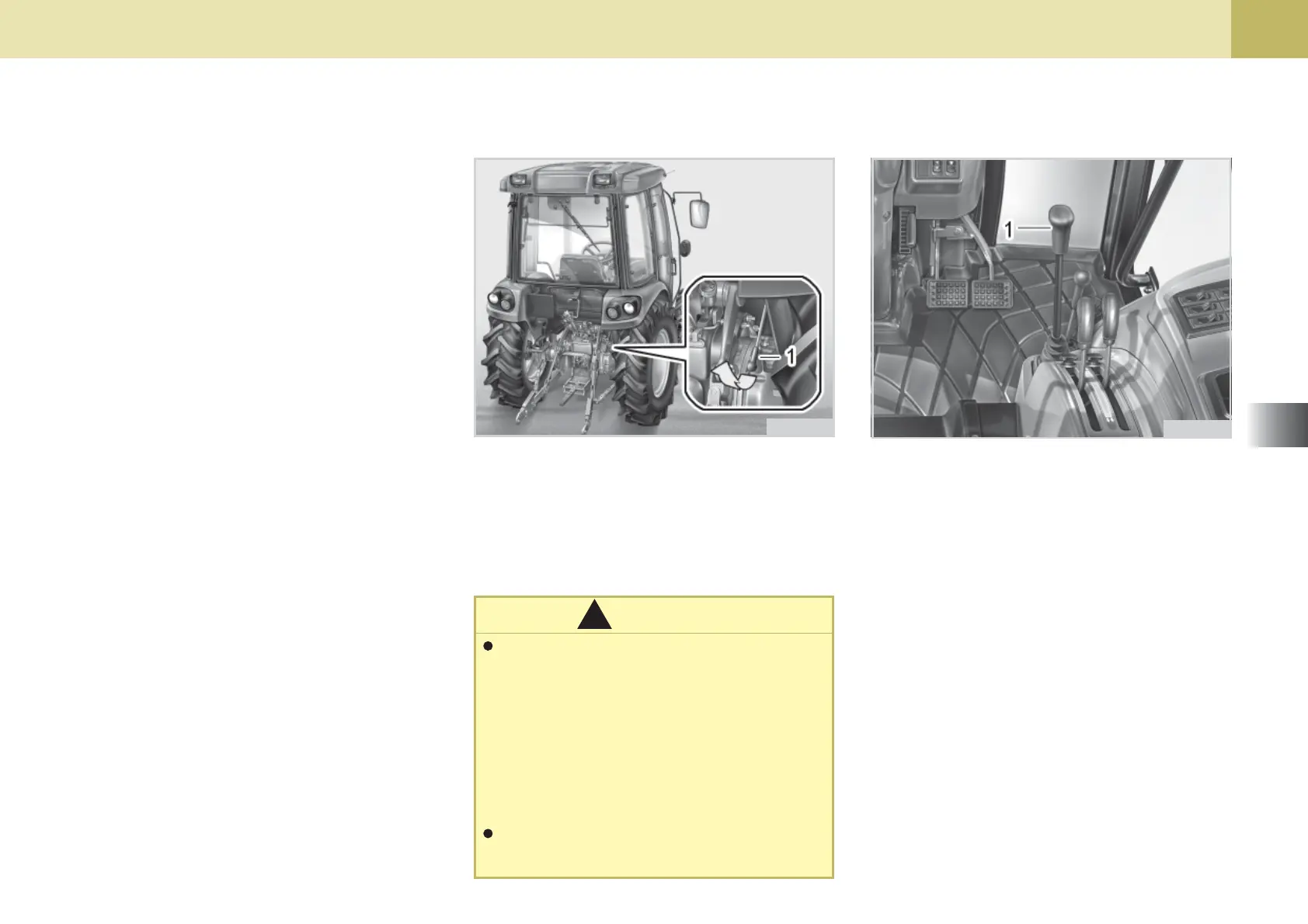

(1) Joystick Lever
H11O475AH23O474A
This lever is used to connect the imple-
ment and 3-point hitch.
(1) External Position Control Lever
EXTERNAL POSITION CON-
TROL LEVER
WARNING
!!
!!
!
When operating the external po-
sition control lever, make sure
that the shift levers and PTO shift
lever are set in the neutral
position. Also, make sure that the
parking brake is applied and the
engine is idling.
Use the outer position control le-
ver only on a level ground.
This joystick lever is used only to lift
and lower the loader attached to the
tractor.
For detailed information, refer to “Han-
dling Loader” in Chapter 6.
“Shallow” position to activate the draft
function at light load.
For detailed information, refer to “Initial
Operation” in Chapter 5.
