DESCRIPTION OF OPERATING SYSTEM
4
DOUBLE ACTING LEVER
(OPTIONAL)
This lever is used to control a hydraulic
implement installed to the exterior.
Lowering the lever supplies hydraulic
fluid to Port B, while raising it supplies
hydraulic fluid to Port A.
See chapter 5, "Operation" for details.

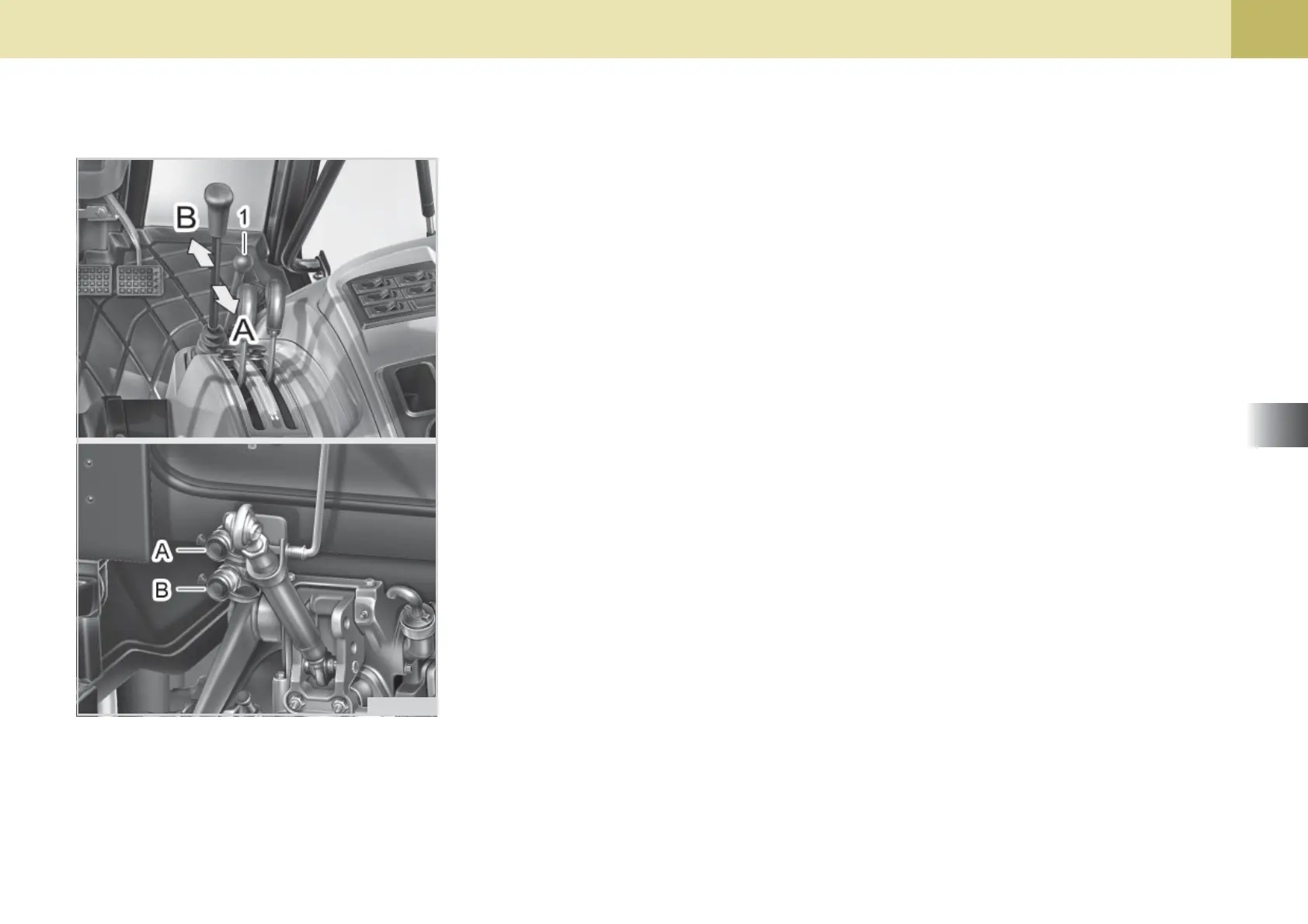

(1) Double Acting Lever
(A) Port A (B) Port B
