DK35(CH)SE/DK40(CH)SE/DK45(C)HSE

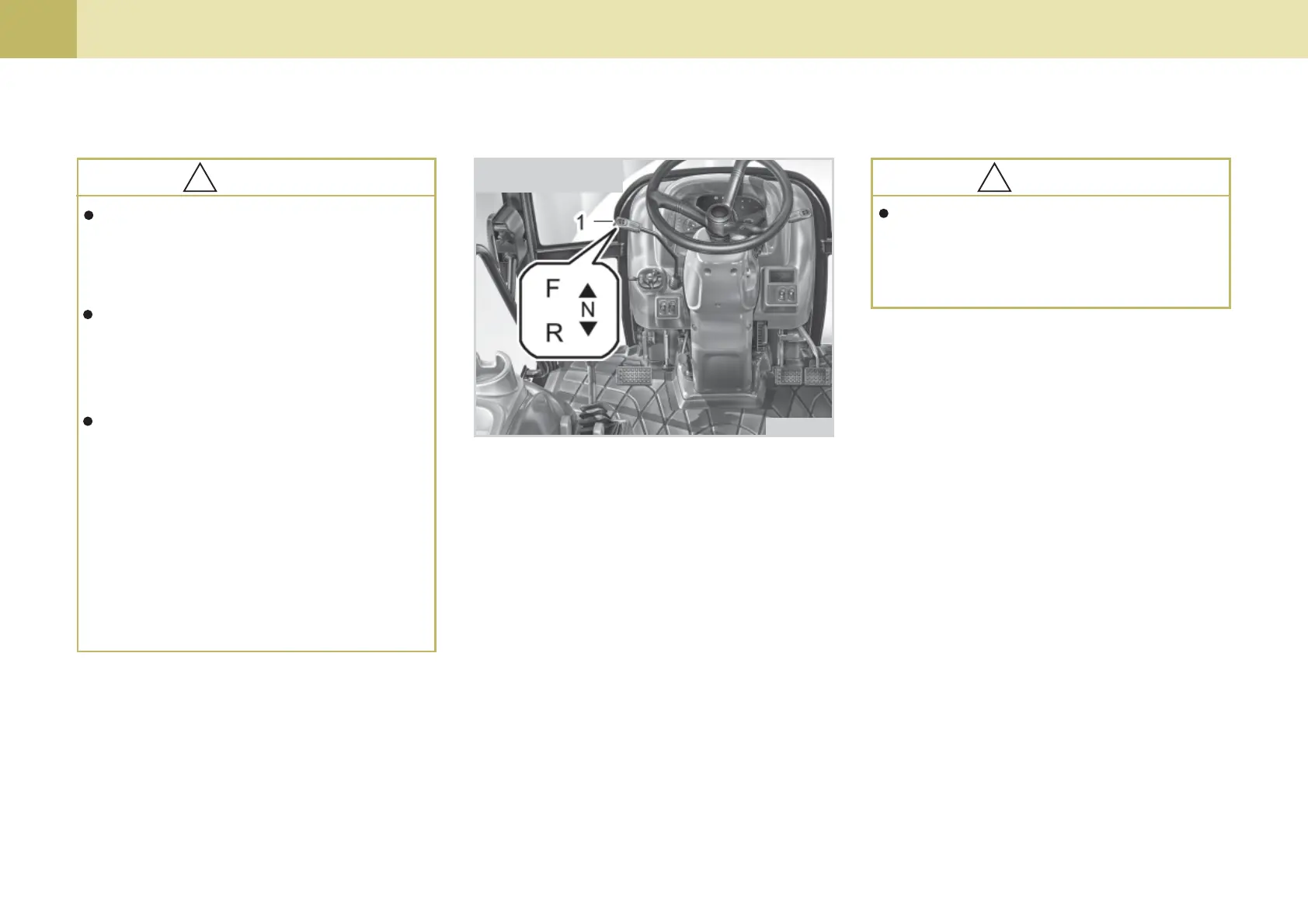

SHUTTLE SHIFT LEVER
H23O457A
(1) Shuttle shift lever
(
F
) Forward (
R
)Reverse
(
N
)Neutral
Make sure to shift the lever with
the clutch pedal depressed and
the tractor stationary(Manual
Type).
Never put the range shift lever
into the high speed position dur-
ing driving backward as it is dan-
gerous to drive at a high speed.
The tractor is not braked by de-
pressing the brake pedal with-
out depressing the clutch pedal
at a low speed as rotational
force of the axle has a major
effect at a low speed. Therefore,
disengage the clutch before
depressing the brake pedal to
stop the tractor (Manual Type).
!!
!!
!
CAUTION
Reduce the speed before mov-
ing this lever since it is very dan-
gerous to switch the driving di-
rection at a high speed.
!!
!!
!
CAUTION
This lever is used to select forward or
reverse driving. Shifting this lever fre-
quently can deteriorate the trans-
mission’s life and durability.
Put this lever into the neutral position
when the tractor is not driven. Pushing
this lever forward sets the forward driv-
ing gear and pulling this lever backward
sets the reverse driving gear regardless
of the positions of the main and range
shift levers (Manual Type).
MANUAL Type
