Daedong KIOTI DK40SE - Lubricating Grease Fittings(P)

7 -19
MAINTENANCE
7

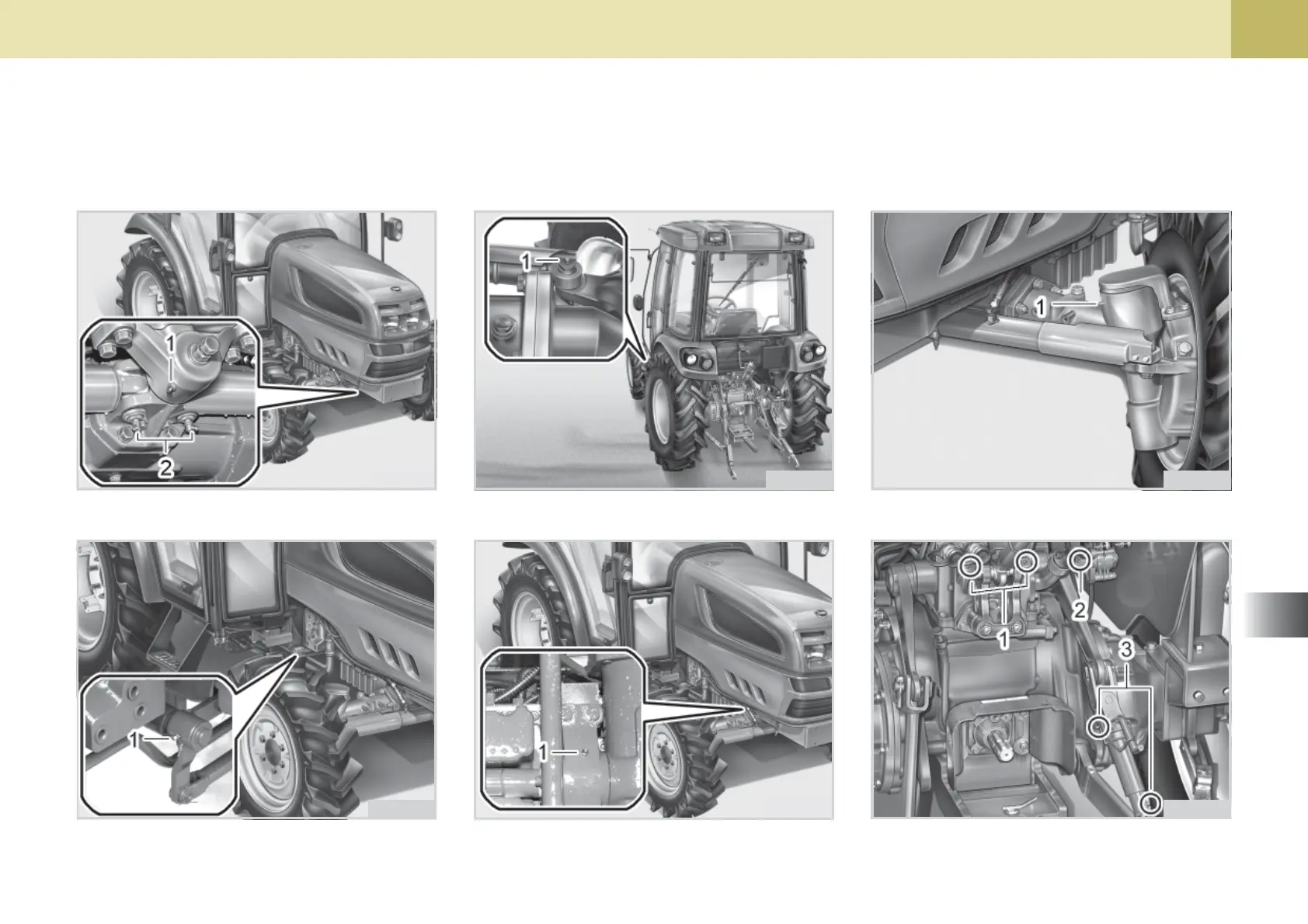

Apply high-quality multi-purpose grease onto the positions in the figure at every 50 hours of operation or whenever necessary
and record the operating time when applying it.
H11O621A
H11O624A
H23O622A
H11O625A
(1) Grease Fitting(Bevel Gear Case, LH/RH)
H11O623A
(1) Grease Fitting(Top Link Holder)
(2) Grease Fitting(Hydraulic Cylinder Support)
(3) Grease Fitting(Lifting Rod, RH)
H11O626A
LUBRICATING GREASE FITTINGS(P)
(1) Grease Fitting (Front Bracket Axle Pivot)
(2)
Grease Fitting (Power Steering Cylinder)(RH,LH)
(1) Grease Fitting (Brake Rod RH, LH)
(1)
Grease Fitting (Power Steering Cylinder) (RH, LH)
(1) Grease Fitting (Rear Bracket Axle Pivot)
