6 -6 DK35SE/DK40(C)SE/DK45(C)SE
During draw bar pulling work,
make sure to use the draw bar
and never pull an implement by
connecting it to the top link
mounting plate or safety frame.
An accident, such as rollover,
or injury can occur.
Be sure to install the auxiliary
chain when installing a trailer.

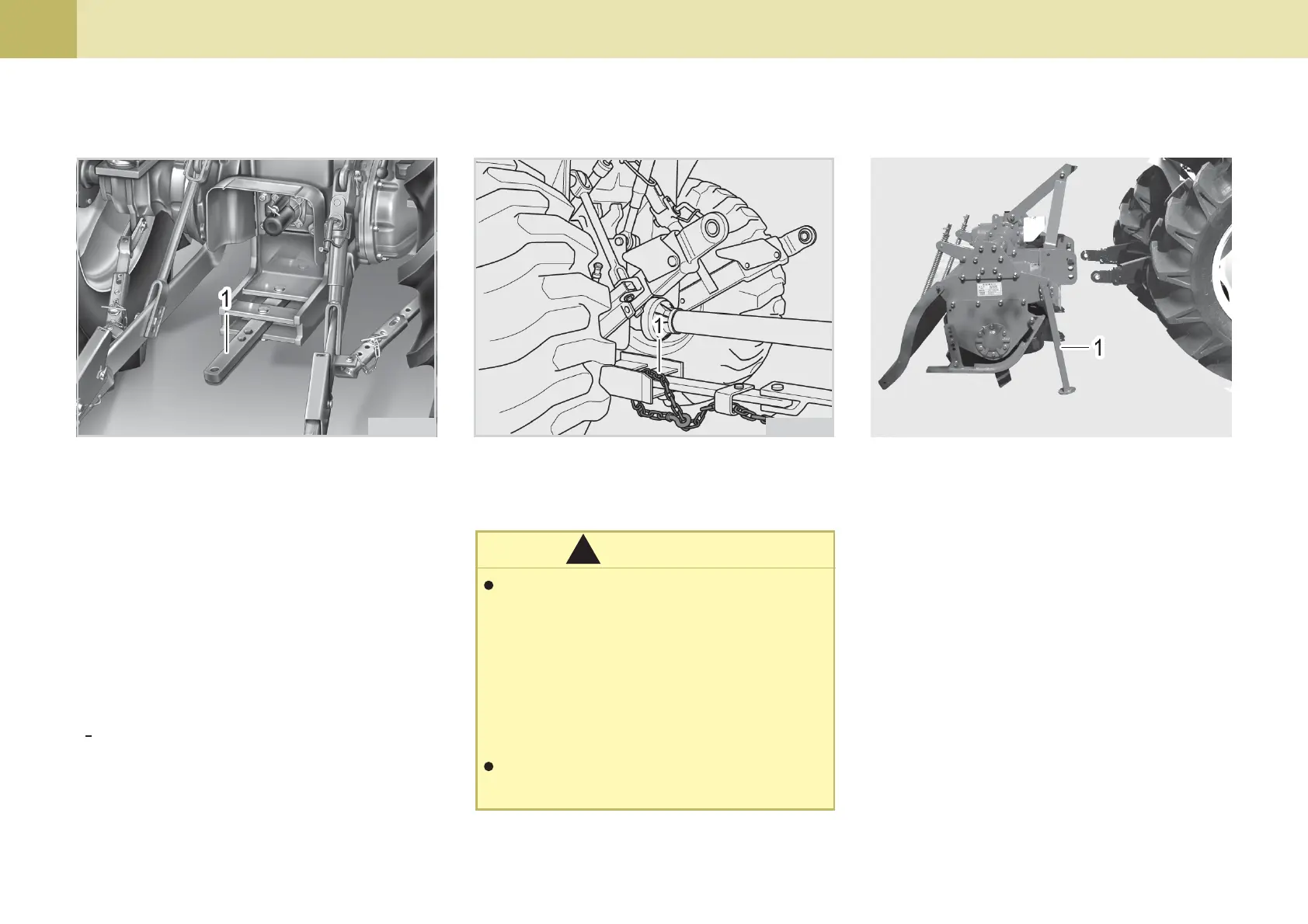

DRAFT HITCH AND TRAILER
(1) Draw Bar
H23O547A
REMOVAL AND INSTALLATION
OF 3-POINT HITCH IMPLEMENT
(WITH PTO SHAFT)
The draw bar is used to pull an
implement, such as a trailer. This trac-
tor is equipped with a fine draw bar.
Make sure to check the max. towing
weight of the trailer and max. vertical
load that can be applied to the draw
bar.
Max. trailer weight (trailer + loaded
weight) = 7,716 lbs (3,500 kg)
-Vertical load of hitch (draw-bar)
= 1,433 lbs (650 kg)
1. Drive the tractor backward to move
close to an implement (approx. 5
cm). Then, adjust the height of the
lower link to be parallel to the pins
of the implement.
2. Put all the shift levers in the neutral
position, stop the engine, and ap-
ply the parking brake.
H11O562A
WARNING
!!
!!
!
(1) Safety Chain
H11O682A
(1) Implement Support
