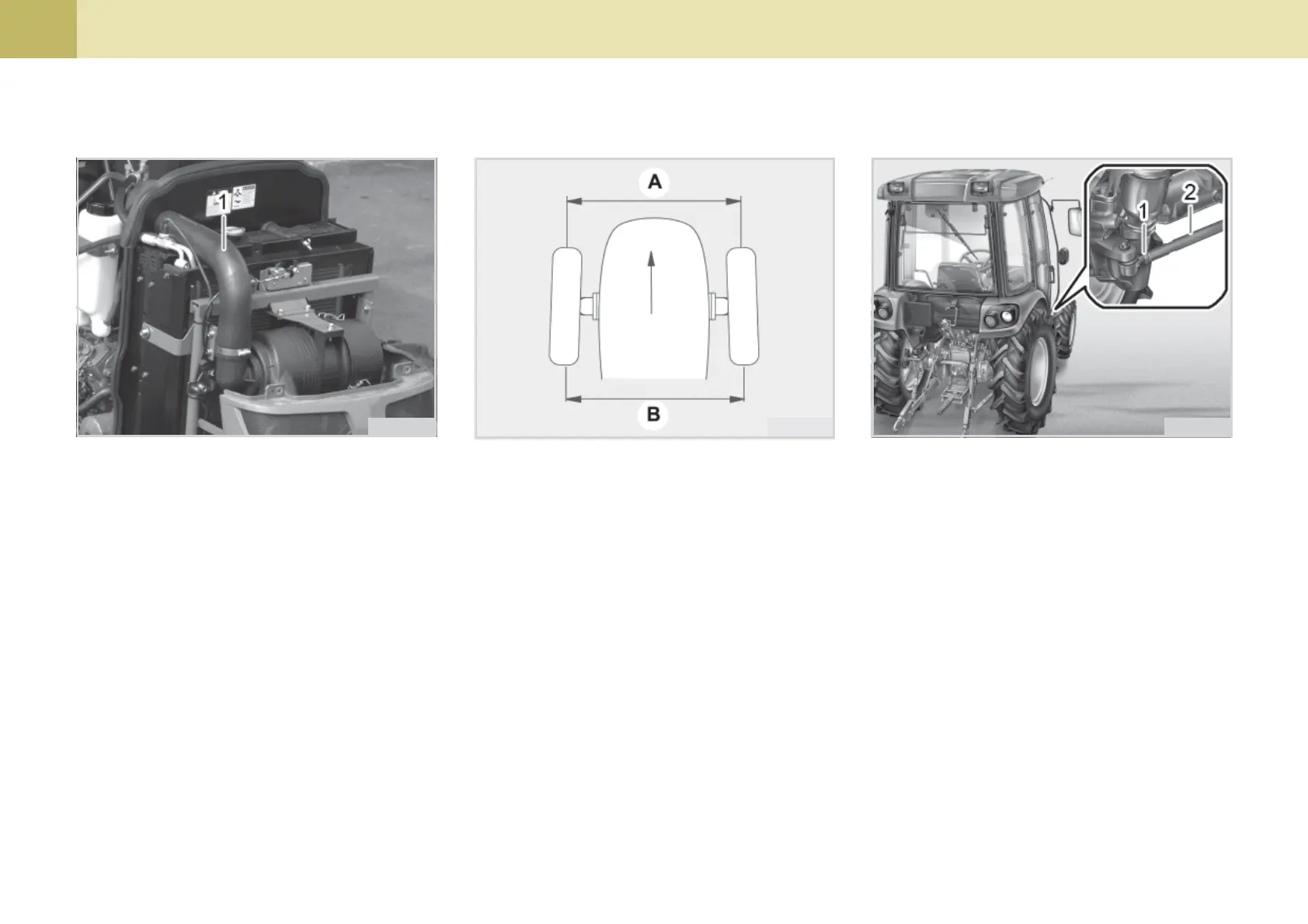

CHECKING INTAKE AIR LINE
(X)
ADJUSTING TOE-IN(Y)
H11O634A
(1) Air Line Hose
T46OA36A
ADJUSTING PROCEDURE
READJUSTMENT
(1) Tie Rod Lock Nut (2) Tie Rod
H23O635A
1. Loosen the lock nut and turn the turn-
buckle to adjust the rod length until
the proper toe-in measurement is
obtained.
2. Check the toe-in value after the tie
rod is adjusted.
3. Adjust it again if necessary.
1. If the hose clamps are loose , tighten
clamps securely.
2. If the hoses and clamps are dama-
ged, you must replace them at once.
Failure to do so could lead to en-
gine damage.
(A) Wheel - To - Wheel Distance At Front
(B) Wheel - To - Wheel Distance At Rear
1. Park tractor on a flat place
2. Turn steering wheel so front wheels
are pointed straight ahead.
3. Lower the implement, lock the park-
ing brake and stop the engine.
4. Measure distance between tire
beads(center) at front of tire and hub
height.
5. Measure distance between tire
beads at the rear of tire and hub
height.
6. Front distance should be 2~8mm
less than rear distance. If not, ad-
just ball joint length
