4-9

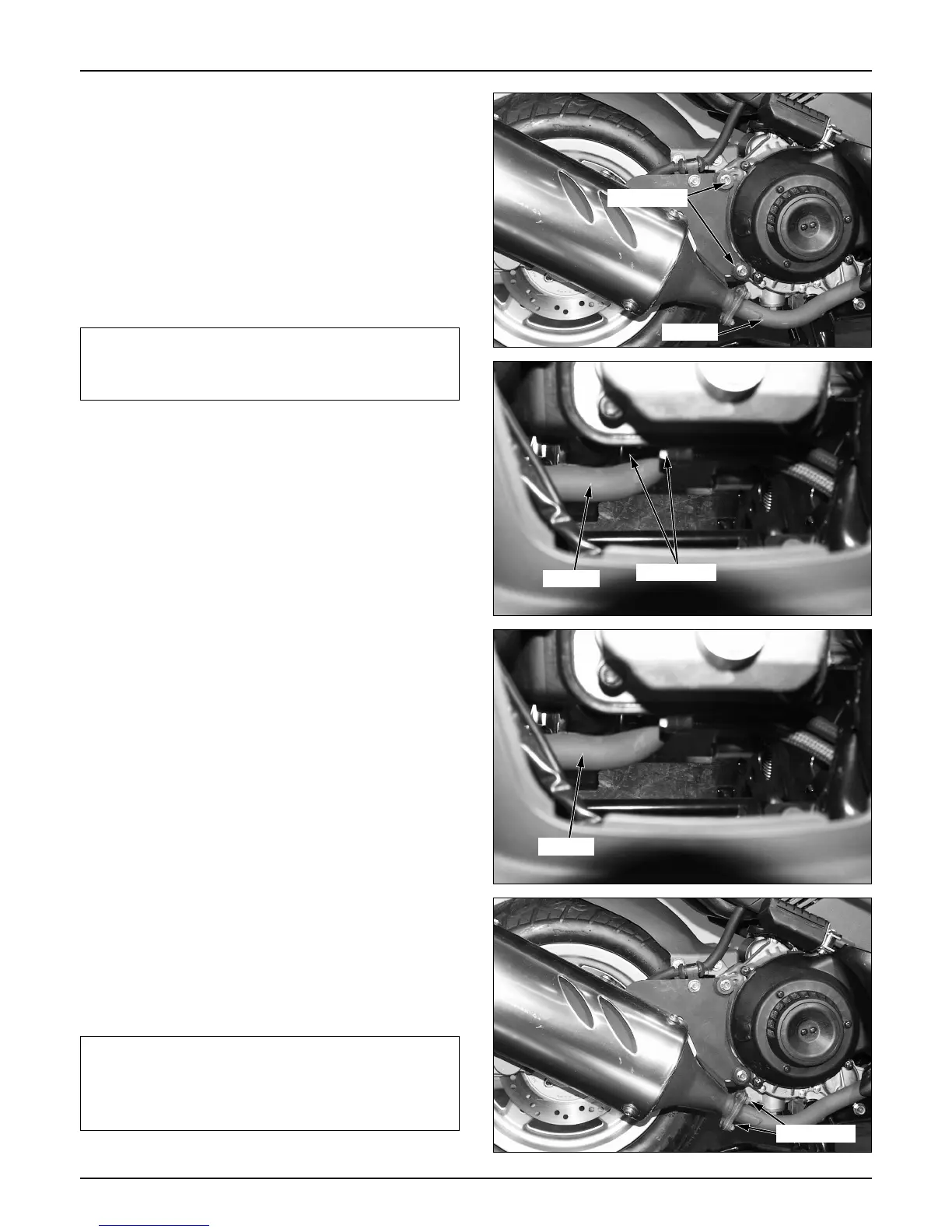

Muffler
Removal
Loosen the 3 flange nuts securing the EX. pipe comp.
Loosen the rear brake hose setting bolt.
Loosen the flange bolt securing the rear wheel
mud guard.
Loosen the 2 flange bolts securing the R. crankcase.
Remove the EX. muffler comp.
WARNING
EX. Pipe removal
Remove the plug maintenance cover.
Loosen the 2 flange bolts securing the cylinder
comp.
Remove the EX. pipe by drawing it to the ground
direction.
Installation
Install the 2 flange bolts after securing the EX.
pipe with the stud bolt of the cylinder comp.
Install the gasket on the EX. muffler, connect the
EX. pipe and install the 2 flange nuts temporarily.
Install the 2 flange bolts on the R.crankcase
temporarily.
Tighten the 3 flange nuts to install the EX. muffler
and EX. pipe.
Install the flange bolt on the rear wheel mud guard.
Tighten the muffler securing 2 flange bolts to
install the R. crankcase.
Tighten torque of the R. crankcase.
Torque: 5.5kg-m(55N.m, 40ft-lb)
Tighten the rear brake hose setting bolt.
WARNING
External Parts
Never perform the maintenance of the muffler
right after stopping the vehicle because the
muffler is extremely hot.
When installing the gasket, replace it with the
new one.
Check to see if there is any evacuation after
installing the muffler.
Flange bolts
Flange bolts
Flange nuts
EX.pipe
EX.pipe
EX.pipe
To Next Page
