DAELIM NS125DLX - Engine Removal

Engine Removal
Engine Removal
 Drain the engine oil.
 Remove the following parts.
- Luggage box (⇨ 4-5)
- Body cover (⇨ 4-6)
- Air cleaner (⇨ 5-4)
- Carburetor (⇨ 5-6)

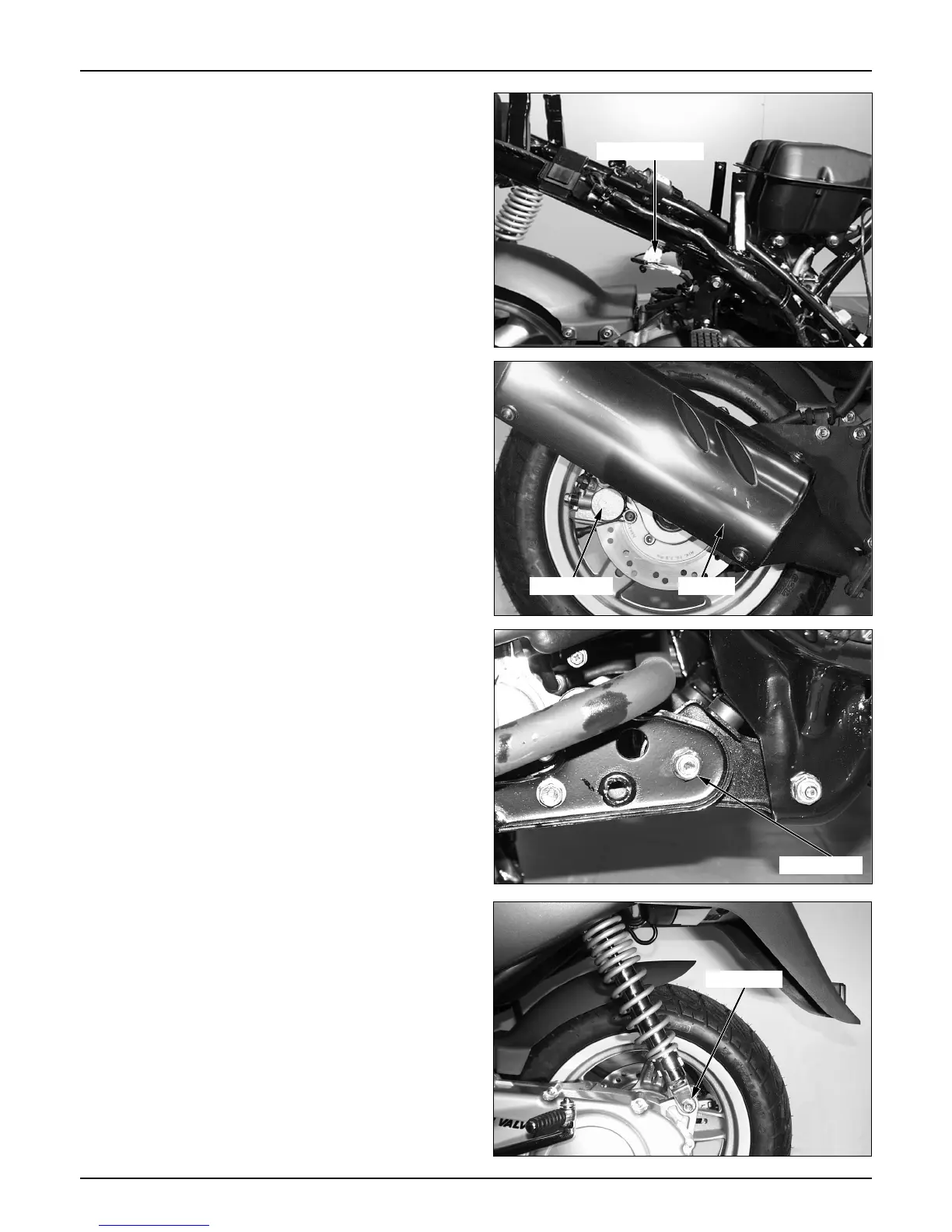

 Disconnect the A.C. generator connector and
starter motor cable cord.

Disconnect the high-tension cord from the engine.
 Remove the negative pressure tube from the
caburetor insulator.
 Remove the EX. muffler. ( 4-9)
 Remove the rear brake caliper.
 Remove the L.floor side cover.( 4-5)
 remove the radiator hose.
 Loosen the 3 rear mud-guard setting bolts.
 Loosen the engine hanger mounting bolt.
 Loosen the rear cushion lower bolt.
6-2
A.C.G connector
Rear caliper
Muffler
Hanger bolt
Lower bolt
