L. Crank Case Cover/Kick Starter/Continuously Variable Transmission
7-13

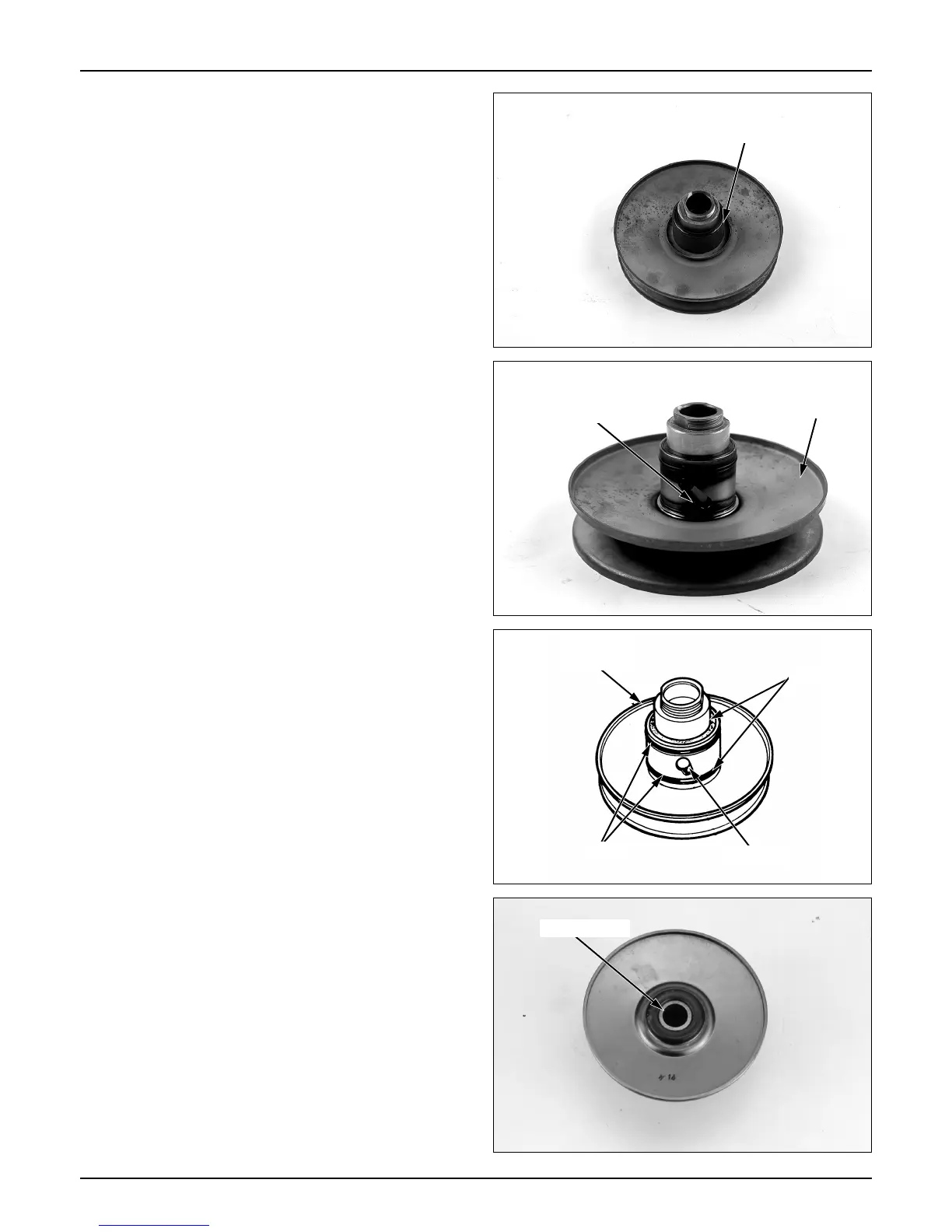

Remove the seal collar.
Remove the guide roller and its pin.
Remove the movable driven face.
Remove the O-ring from the movable drive face.
Remove the oil seal from the movable driven
face.
Remove the inner bearing.
Seal collar
Guide roller
Inner bearing
Movable
driven face
Oil seal
Guide pin
O-ring
Movable
driven face
To Next Page
