Generator/Starter Clutch
Use a special socket to tighten the starter driven
gear with lock nuts.
Torque value: 9.0kg-m(90N.m, 65ft-lb)
Tool: Special socket (12.7
××
28
××
120)
Assemble the washer.
Assemble the R. crank case cover ( 8-4)
Assemble the A.C. generator. ( 8-2)
Assemble the shroud. ( 8-2)
8-8

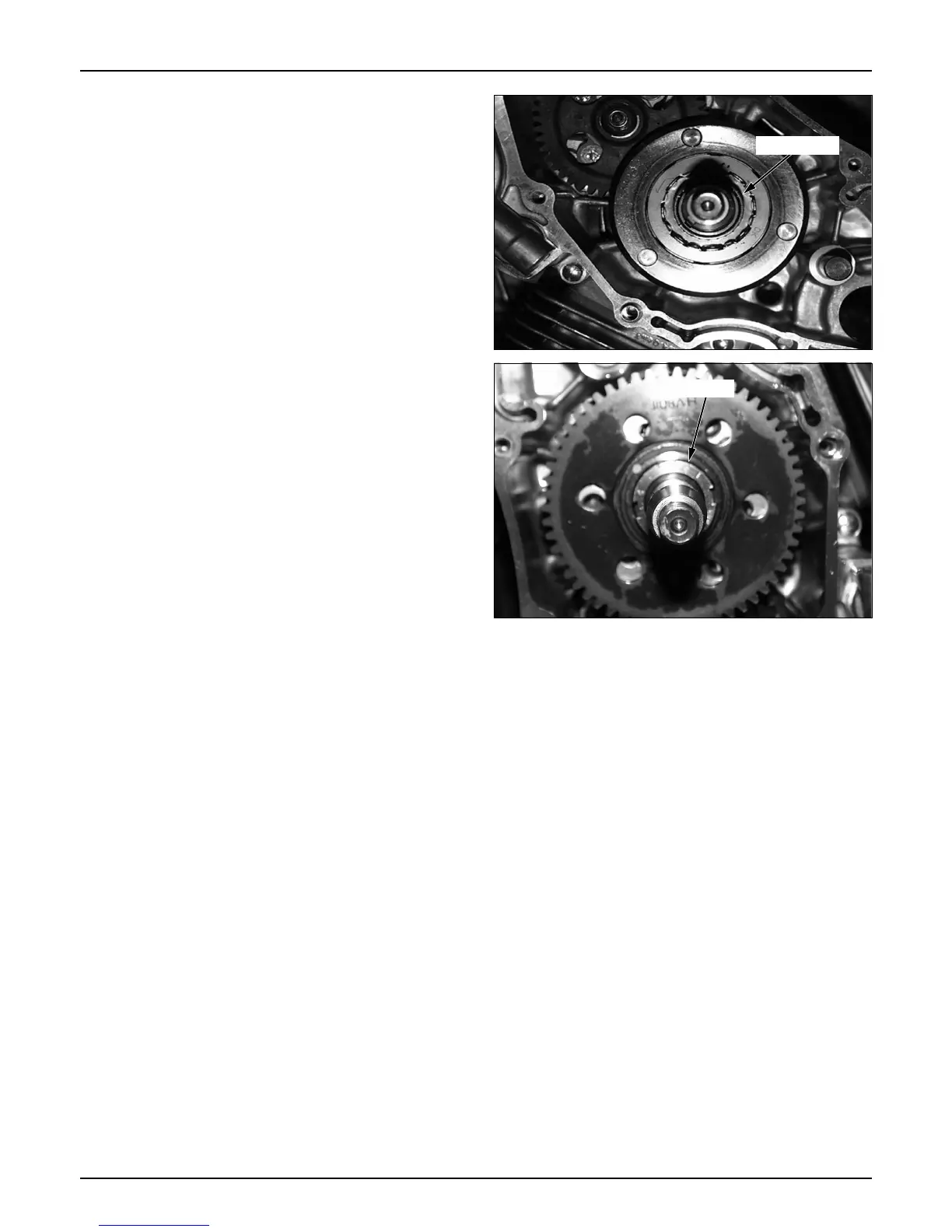

Starter clutch
Lock nut
