Dahua NVR5464-4KS2-V2

User's Manual
89

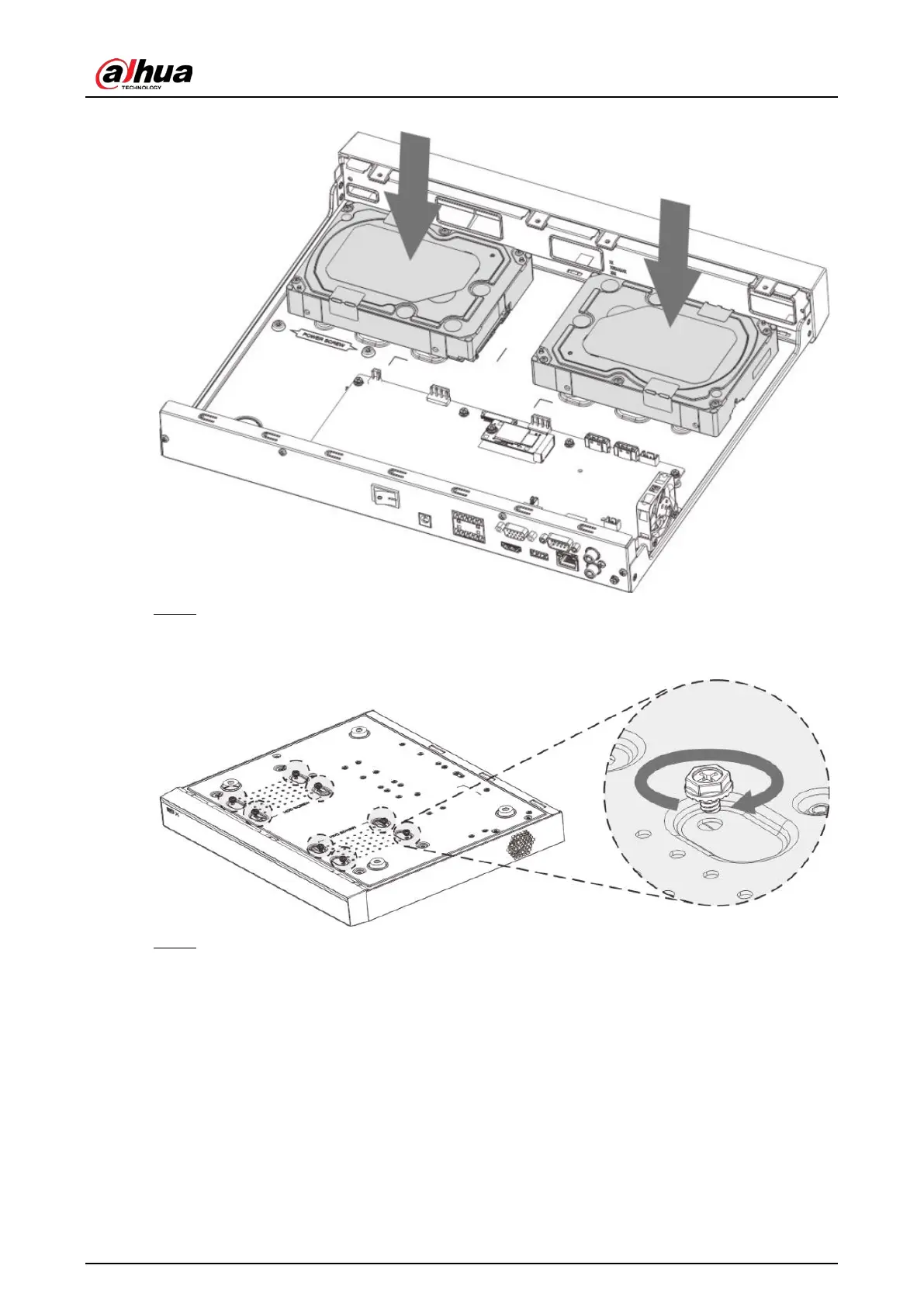

Figure 3-14 Align HDD
Step 4 Turn the device upside down, match the screws with the holes on the HDD and then fasten
them. The HDD is fixed to the baseboard.
Figure 3-15 Fasten screws
Step 5 Connect the HDD data cable and power cable to the device.
