13
Table 2-7 Icons
Icon Name Function
HDD
HDD status indicator
light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
PWR Power status indicator light
The blue light is on when the power
connection is OK.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner and
more.
USB port
Connects to the external devices
such as keyboard, mouse, and USB
storage device.
IR indicator
Receives signals from the remote
control.
2.1.9 NVR48-I/NVR58-I/NVR58-I/L Series
The section takes NVR4832-I/NVR5864-I/NVR5864-I/L/NVR5832-I/NVR5832-I/L series as examples.
The figure is for reference only.

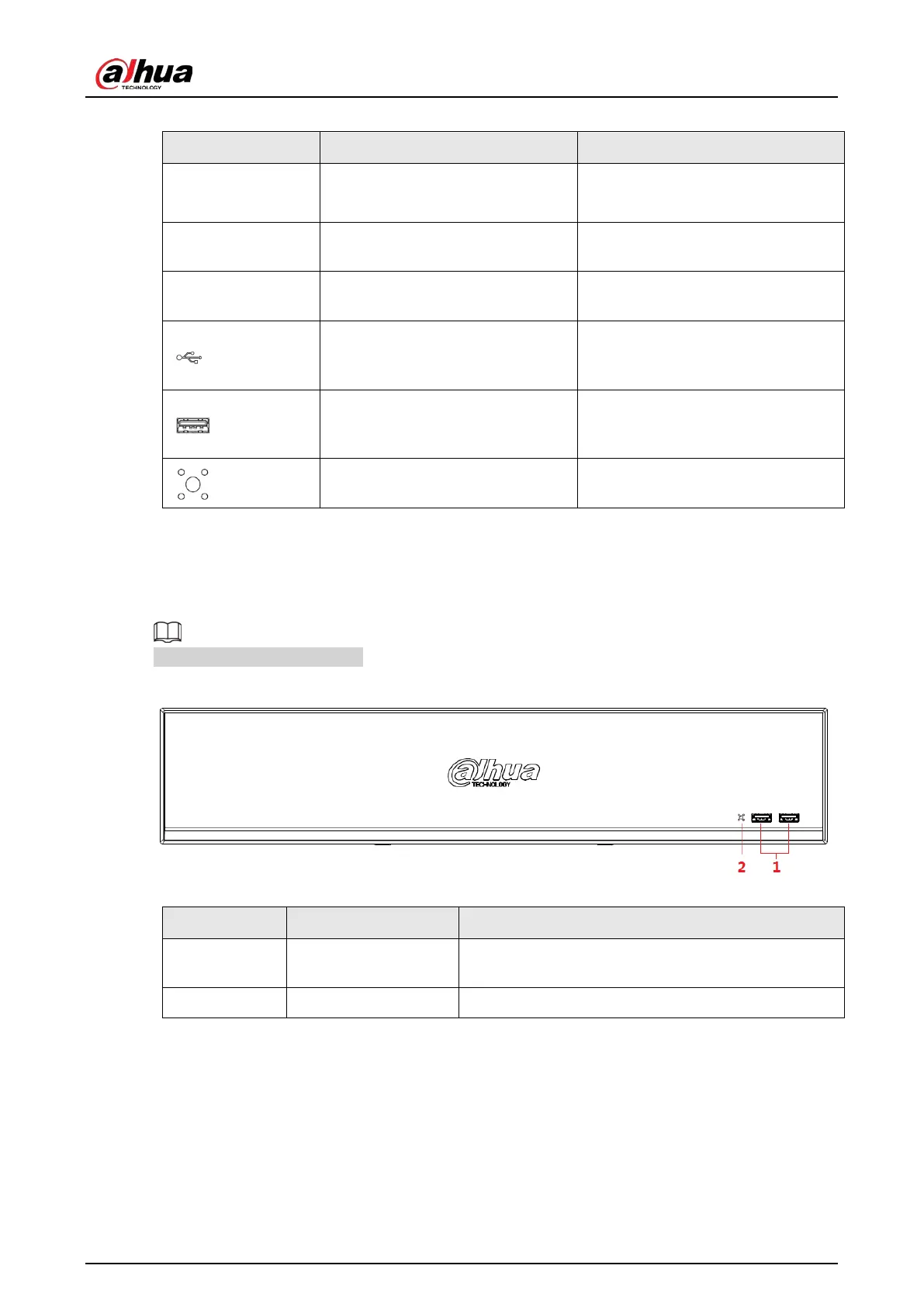

Figure 2-21 Front panel
Table 2-8 Icons
No. Port Name Function
1 USB port
Connects to the external devices such as keyboard,
mouse, and USB storage device.
2 IR indicator Receives signals from the remote control.
2.1.10 NVR42-I/NVR44-I/NVR54-I/NVR54-I/L/NVR52-I/NVR52-I/L
Series
The section uses NVR4208-8P-I/NVR4216-I/NVR4216-16P-I/NVR4416-16P-I/NVR4432-I/NVR5432-16P-
I/NVR5432-16P-I/L/ NVR5216-16P-I/NVR5216-16P-I/L/NVR5216-8P-I/NVR5216-8P-I/L series as
examples.
