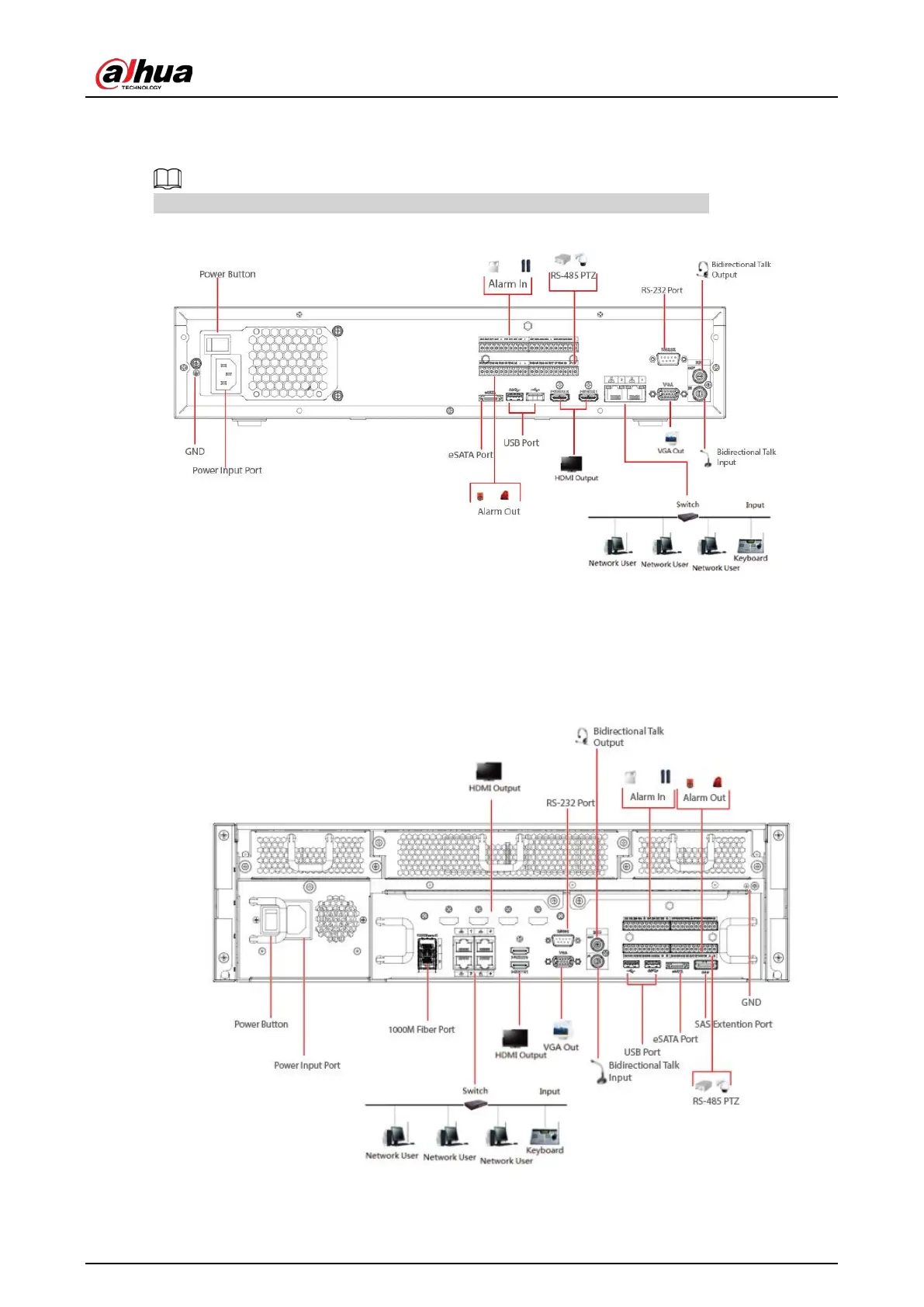

3.5.14 NVR608-4KS2/NVR608H-XI/NVR608RH-XI Series
The following figure is for reference only and might differ from the actual product.
Figure 3-61 Typical connection
3.5.15 NVR616-4KS2 Series
Figure 3-62 Typical connection
