User's Manual
75
Icon Name Function
VGA VGA video output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
PoE PORTS —
Built-in Switch. Support PoE or ePoE function.
For ePoE series product, port 1 to port 8 are the
ePoE ports. ePoE port supports 300
meters@100Mbps, 800 meters@10Mbps. Port 9
to port 16 are general PoE ports.
The 16 PoE series supports total 150W.
2.2.32 NVR50-EI Series

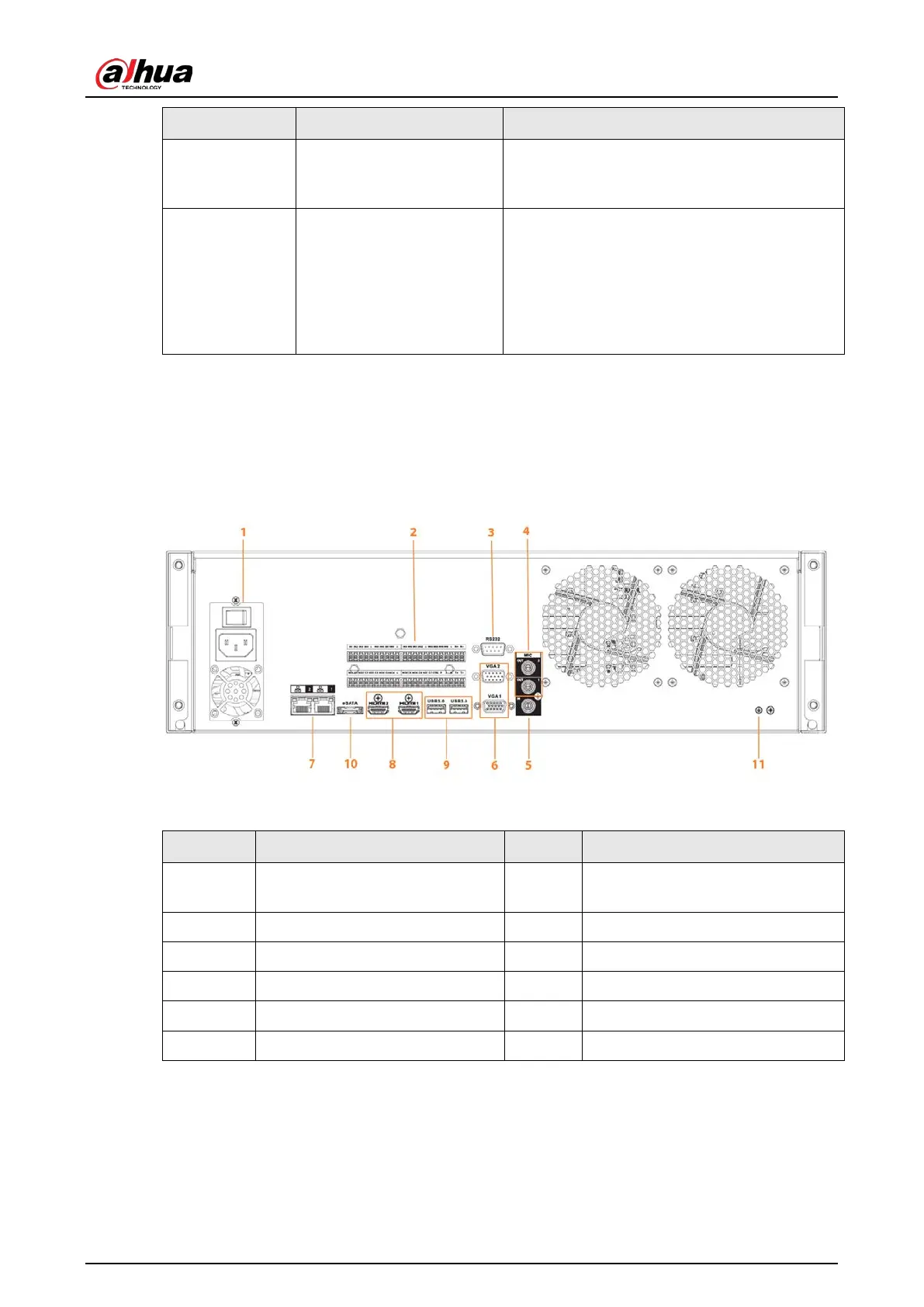

The NVR50-EI series rear panel is shown as below.
Figure 2-116 Rear panel
Table 2-47 Ports description
No. Function No. Function
1 Power socket. 2
Alarm input/alarm output/RS-485
port
3 RS-232 port 4 Audio output
5 Audio input 6 VGA port
7 Network port 8 HDMI port
9 USB 3.0 port 10 eSATA port
12 Ground — —
