User's Manual
12

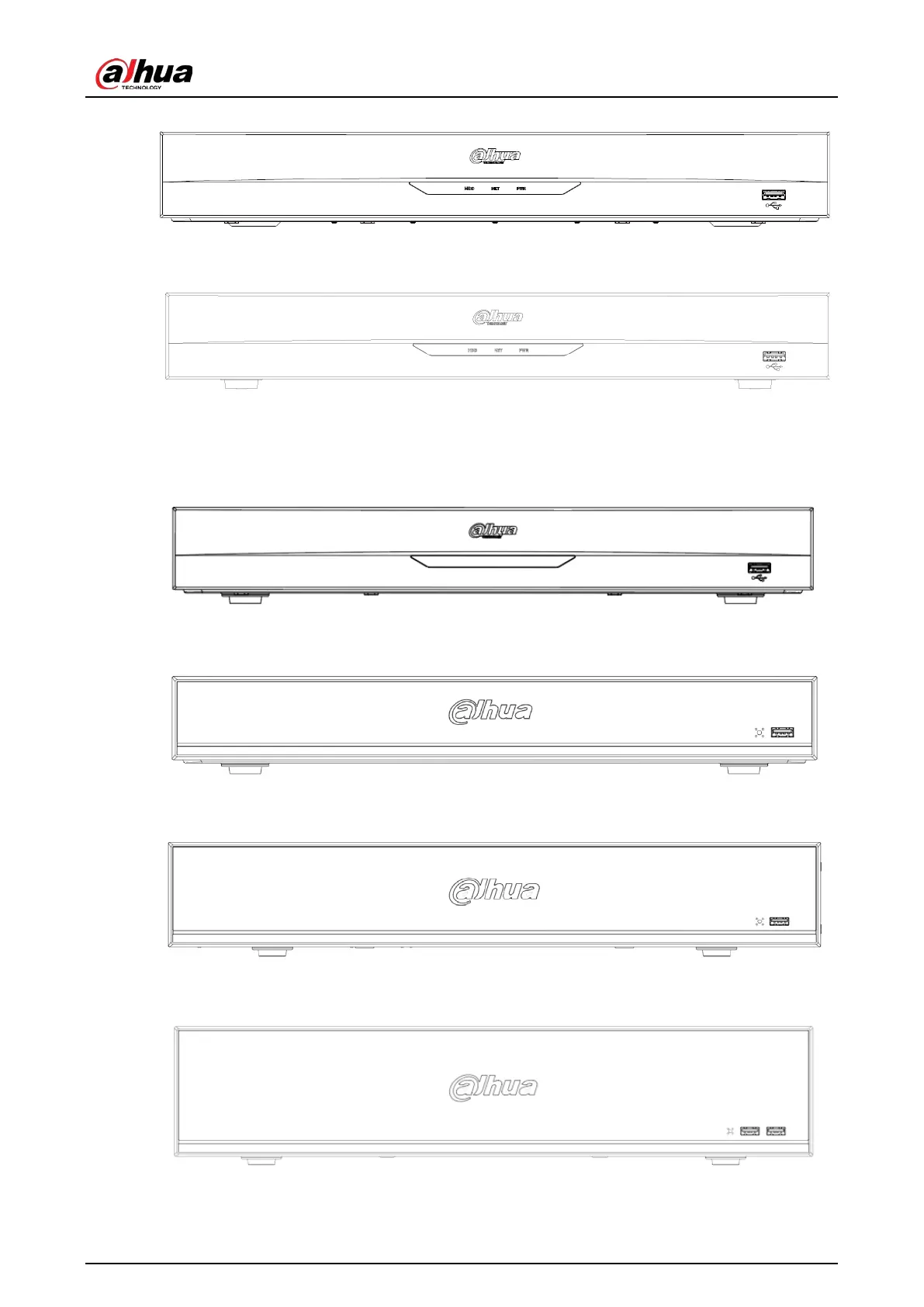

Figure 2-15 Front panel
The NVR22-16P-I/NVR22-16P-I2 front panel is shown as below.
Figure 2-16 Front panel
The NVR52-EI/NVR52-8P-EI/NVR52-16P-EI/NVR54-EI/NVR54-16P-EI/NVR41HS-EI/NVR42-EI/NVR41HS-
P-EI/NVR42-P-EI/NVR41HS-8P-EI/NVR42-8P-EI/NVR42-16P-EI/NVR44-EI/NVR44-16P-EI front panel is
shown as below.
Figure 2-17 Front panel
The NVR52-XI/NVR52-8P-XI/NVR52-16P-XI front panel is shown as below.
Figure 2-18 Front panel
The NVR54-XI front panel is shown as below.
Figure 2-19 Front panel
The NVR58-XI front panel is shown as below.
Figure 2-20 Front panel
