User's Manual
359

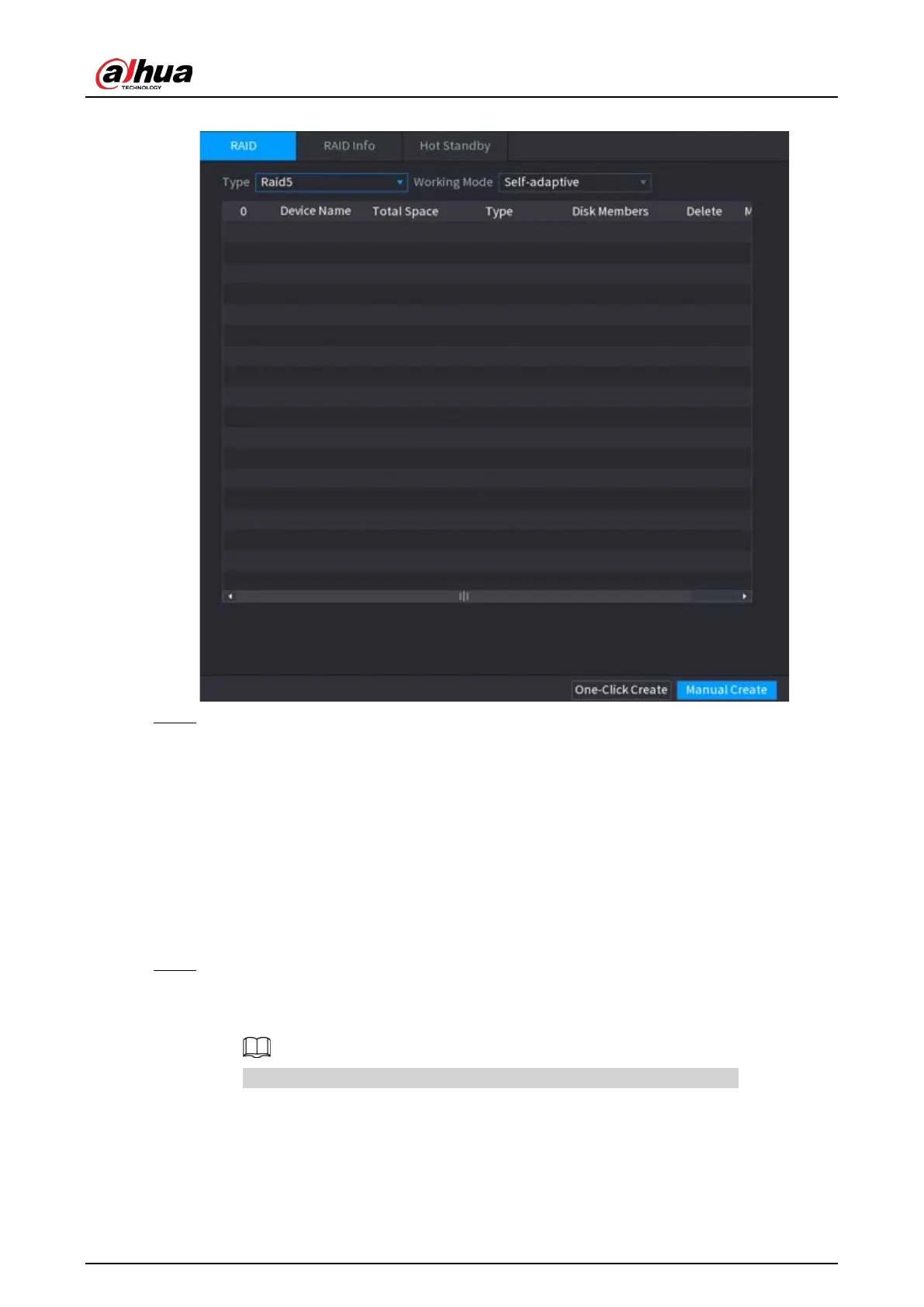

Figure 5-244 RAID
Step 2 Select RAID type and working mode.
The working mode determines how the system allocate resources.
●
Self-Adaptive
: Automatically adjust the RAID synchronization speed according to the
business status.
◇
When there is no business running, synchronization is performed at a high speed.
◇
When there is business running, synchronization is performed at a low speed.
●
Sync First
: Resource priority is assigned to RAID synchronization.
●
Business First
: Resource priority is assigned to business operations.
●
Balance
: Resource is evenly distributed to RAID synchronization and business
operations.
Step 3 Create RAID.
●
Automatic creation.
Select disks, and then click
Create RAID
. The system will create RAID 5 automatically.
Automatic creation of RAID is available only when the RAID type is
Raid5
.
●
Manual creation.
Select disks, click
Create Manually
and then follow the on-screen instructions to create
RAID.
